PS01 Skin ColorReader

ColorReader

Type: PS01

Description Additional information

Description

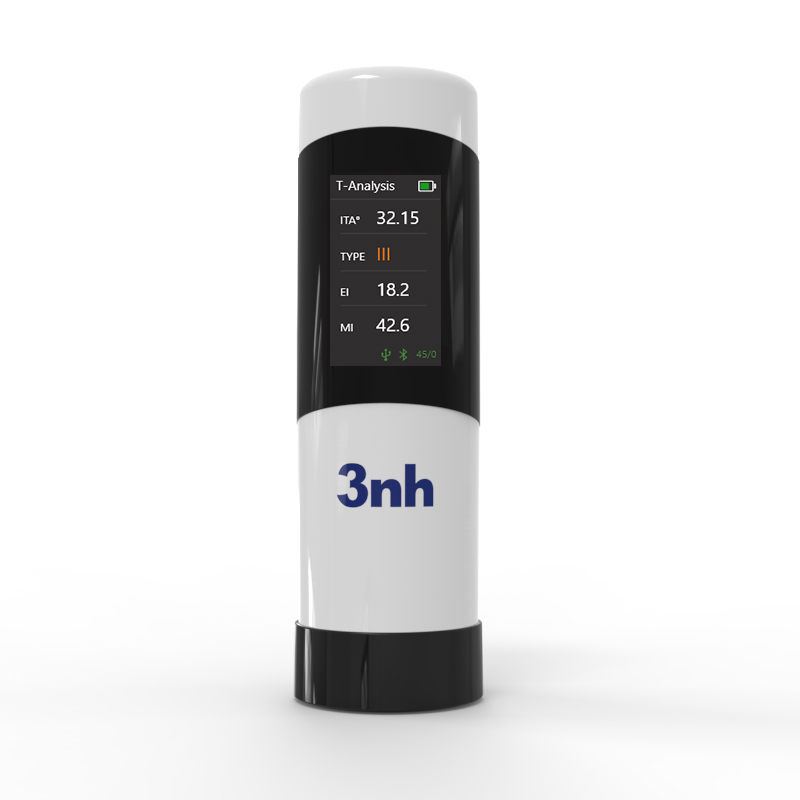

The 3nh PS01 is an entry-level, ultra-portable Skin ColorReader designed for quick skin tone reference, rapid colorimetric evaluation, and cost-effective batch deployment across chain stores and small-to-medium skincare studios. Utilizing a 45/0 circumferential uniform illumination optical system paired with nanometer integrated spectroscopic components, it packs core professional indicators into an ultra-compact body weighing just 88g. The primary advantage of the PS01 is offering quantized skin color data at an accessible price point. By sharing identical core algorithmic indicators—Individual Typology Angle (ITA°), Melanin Index (MI), and Erythema Index (EI)—with higher-end models, PS01 replaces visual estimation with objective metrics, facilitating brand-wide standardized skin analysis.

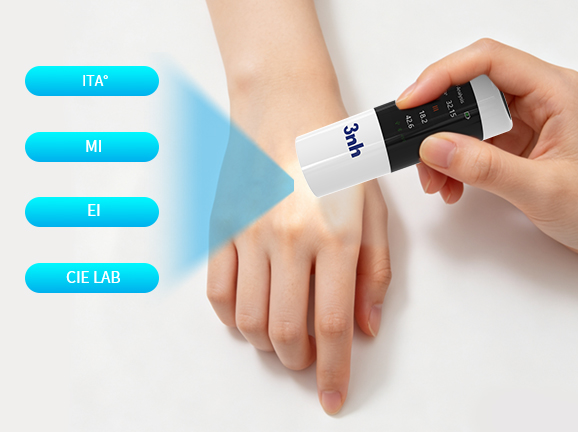

1. Four Core Skin Metrics Fully Equipped

Outputs ITA° (Individual Typology Angle), skin typology classification, Melanin Index (MI), and Erythema Index (EI). Core analytical metrics align with high-end models for reliable daily skin assessment.

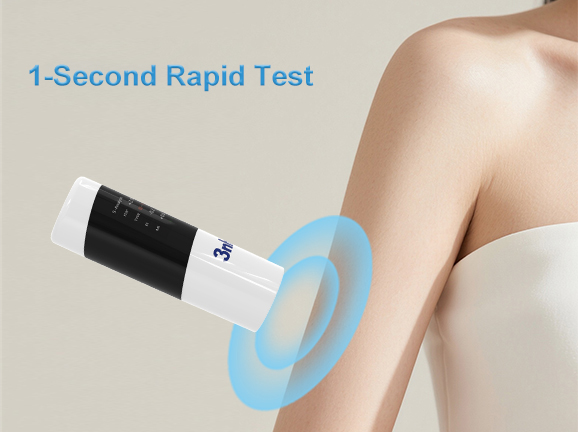

2. Ultra-Fast 1-Second Measurement

Requires only 1.0 second per test, minimizing client waiting time and optimizing workflow efficiency during peak store hours.

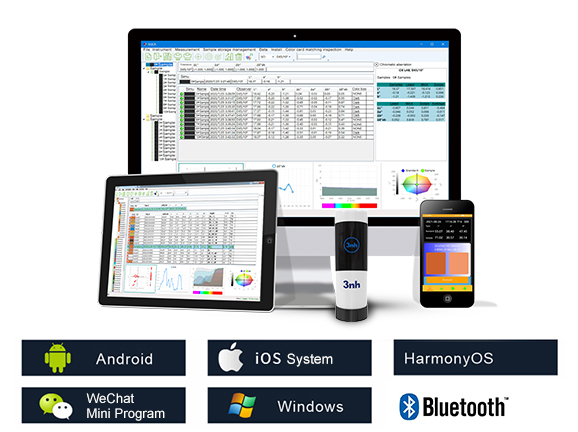

3. Full-Platform Interconnectivity & Zero-Threshold Operation

Compatible with Android, iOS, Windows, WeChat Mini-Programs, and HarmonyOS. Features automatic white-board calibration and average measurement mode (2–99 tests) to minimize accidental operator errors.

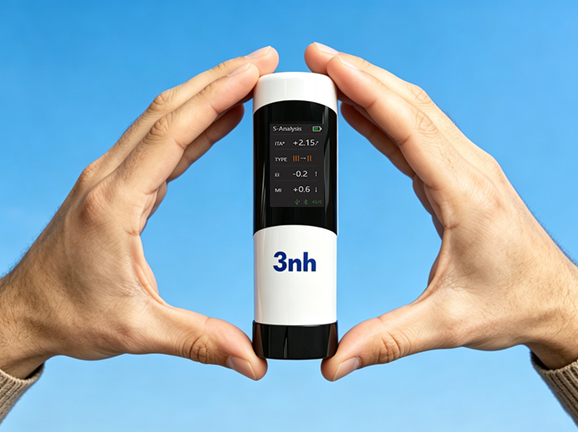

4. Cost-Effective Batch Deployment for Standardization

Budget-friendly pricing allows franchise brands and multi-store chains to deploy dedicated skin detection equipment across all branches, building unified service standards.

Target Application Scenarios

Skincare Studios & Salons: Build customer skin archives and quantify pre/post treatment results at a low operational cost.

Skincare Content Creators: Acquire multi-dimensional skin data to bolster review credibility.

Beauty Consultants & Sales: Ultra-portable design for instant skin measurements during customer consultations.

Efficacy Testing: Track subtle skin tone shifts to verify cosmetic formulation efficacy.

Technical Specification

Model	PS01 Skin ColorReader
Illumination Geometry	45/0 (45° circumferential uniform illumination, 0° reception); Complies with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
Features	Portable skin color measurement; convenient assessment of Individual Typology Angle (ITA°), skin type, Melanin Index (MI), and Erythema Index (EI). Highly compact.
Integrating Sphere Size	/
Light Source	Full-spectrum LED light source
Spectrophotometric Mode	Nanometer integrated spectroscopic components
Sensor	Silicon photodiode array (dual-row 16 groups)
Wavelength Range	400–700 nm
Measuring Aperture	Φ8 mm
Specular Component	/
Color Spaces	CIE LAB
Color Difference Formulas	ΔE*ab
Other Colorimetric Indices	ITA°, Skin Typology Angle, Erythema Index (EI), Melanin Index (MI)
Display Resolution	0.1
Observer Angle	10°
Illuminant	D65
Display Features	Sample colorimetric values, color difference, PASS/FAIL result, color simulation, color bias, reflectance (partially via mobile APP)
Measurement Time	Approx. 1.0s
Repeatability	Colorimetric value: ΔE*ab within 0.05 (Average of 30 measurements on white plate at 5s intervals after warm-up & calibration)
Accuracy Guarantee	No requirement
Measurement Method	Single measurement, Average measurement (2–99 times via mobile APP)
Locating Method	/
Dimensions	Ø32X100mm
Weight	Approx. 88 g
Battery Capacity	Lithium battery; up to 12,000 continuous measurements on a full charge
Light Source Lifespan	5 years or over 3 million measurements
Display Screen	1.14-inch IPS full-color screen
Interfaces	USB, Bluetooth
Data Storage	Expandable massive storage via mobile APP
Software Support	Android, iOS, Windows, WeChat Mini-Program, HarmonyOS
Calibration	Automatic Whiteboard Calibration
Languages	Simplified Chinese, English
Operating Environment	0–40°C, 0–85% RH (non-condensing), Altitude: Below 2000m
Storage Environment	-20–50°C, 0–85% RH (non-condensing)
Standard Accessories	Data Cable, User Manual, Calibration Box, Quality Management Software (downloadable), APP (downloadable)
Optional Accessories	USB Micro Printer, Powder Test Box
Remarks	Technical specifications are for reference only and subject to actual sales products.
