PS528 Spectrodensitometer

The 3nh PS528 is a versatile spectrodensitometer specifically engineered as a quality control workhorse for ink printing, film processing, textile dyeing, and plastics electronics industries....

Densitometers

Type: PS528

Description Additional information

Description

The 3nh PS528 is a versatile spectrodensitometer specifically engineered as a quality control workhorse for ink printing, film processing, textile dyeing, and plastics electronics industries. Featuring a 45/0 circumferential uniform illumination optical system combined with high-precision nanometer spectrophotometric components, it accurately measures key printing metrics such as optical density, dot area, dot gain (TVI), and trapping efficiency, facilitating the transition from experience-based judgment to digital data management. The core advantage of the PS528 lies in its 'Multi-Purpose Versatility, Precision, and High Efficiency': equipped with 5 measuring apertures to cover full-scenario requirements from large color blocks to fine graphics, rapid 1-second measurement drastically enhances testing throughput, while 0.01D density repeatability ensures stable and dependable results. Delivering professional and accurate data for rapid on-site spot-checking, PS528 is an indispensable asset for cost reduction, efficiency enhancement, and quality optimization.

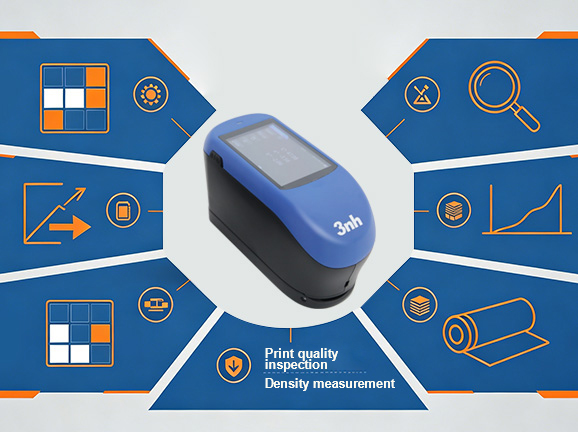

1. Professional-Grade Density Measurement Across Printing Workflows

Precisely measures critical indices including density value, density difference, dot area, dot gain, trapping, printing characteristics, print contrast, tone error and grayness, and printing plates. Supports color spaces like L*a*b and Lc*h* to satisfy comprehensive quality control needs from incoming ink verification to plate-making and pressroom management.

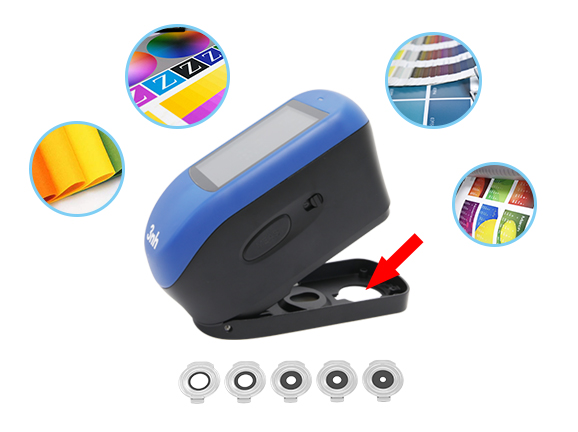

2. Five Interchangeable Apertures for Flexible Adaptation

Equipped with 5 measuring apertures: Φ11mm, Φ10mm, Φ6mm, Φ5mm, and Φ3mm. Users can flexibly select apertures based on sample dimensions, seamlessly handling large color patches down to small graphic elements with a single versatile device.

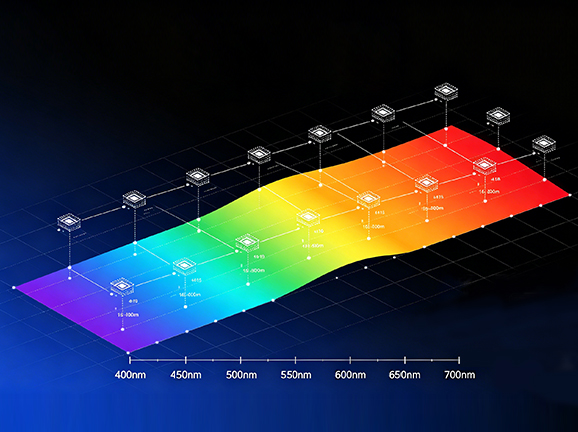

3. High Precision, Stability, and Reliability

16 sensor groups acquire spectral data across the 400–700 nm visible spectrum at 10 nm intervals, ensuring precise measurement across dark inks, light inks, and spot colors. Density repeatability ≤ 0.01D and colorimetric repeatability ΔE*ab ≤ 0.02 guarantee consistency, eliminating misjudgments and maintaining unified QC standards. Identify potential quality issues accurately before shipment, reduce the risk of defective products reaching customers, and minimize customer complaints

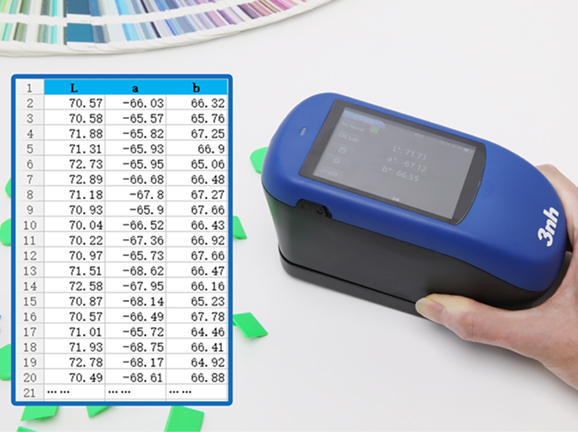

4. High-Speed Measurement Elevating Production Throughput

Single measurement speed of ~1 second, with support for 2–99 average measurement modes to eliminate sample non-uniformity errors. Onboard memory for 10,000 data records enables robust data traceability during high-volume testing.

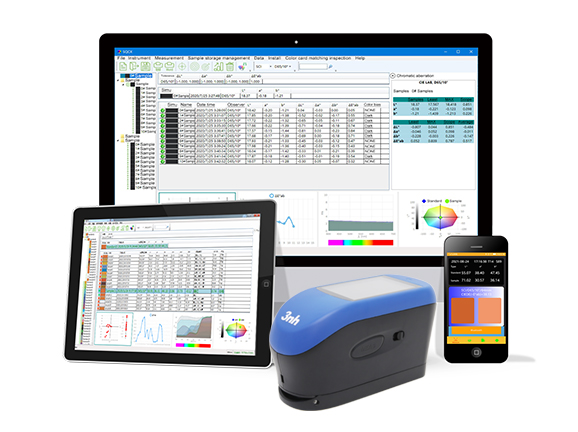

5. Multi-Platform Software Support for Seamless Data Management

Provides multi-terminal synchronization across Android, iOS, Windows, WeChat Mini-Program, and HarmonyOS. Features automated report generation and one-click export for effortless data analysis.

Target Industry Applications

Ink Printing: Measurement and quality control of optical density, dot gain, trapping ratio, and print contrast.

Film Processing: Film optical density testing and printing plate quality control.

Textile Dyeing & Printing: Color fastness rating, color difference evaluation, color formulation management, and print quality control.

Plastics & Electronics: Color testing and cosmetic appearance quality control for plastic and electronic components.

Technical Specification

Model	PS528
Illumination Geometry	45/0 (45° circumferential uniform illumination, 0° reception); Complies with ISO 5-4, CIE No. 15
Features	Versatile spectrodensitometer widely used for precise color measurement and quality control in ink printing, film processing, textile dyeing, plastics, and electronics. Especially suited for optical density and dot gain measurement.
Light Source	Combined LED light source, UV light source
Spectrophotometric Mode	High-precision nanometer spectrophotometric component
Sensor	Silicon photodiode array (dual-array, 16 groups)
Wavelength Range	400–700 nm
Wavelength Interval	10 nm
Half Bandwidth	10 nm
Reflectance Range	0–200%
Reflectance Resolution	0.01%
Measurement Conditions	Complies with ISO 13655 conditions: M0 (CIE Illuminant A), M1 (CIE Illuminant D50), M2 (UV Cut), M3 (M2 + Polarizing Filter)
Density Standards	ISO Status T, E, A, I, M
Density Range	0.0 D – 3.0 D
Density Indices	Density value, density difference, dot area, dot gain, trapping, printing characteristics, print contrast, tone error and grayness, printing plate
Measuring Aperture	Φ11mm,Φ10mm,Φ6mm,Φ5mm,Φ3mm
Color Spaces	CIE LAB, XYZ, Yxy, LCh, CIE LUV, HunterLAB, s-RGB, βxy, DIN Lab99, Munsell
Color Difference Formulas	ΔEab, ΔEuv, ΔE94, ΔEcmc(2:1), ΔEcmc(1:1), ΔEcmc(1:c), ΔE*00, DINΔE99, ΔE(Hunter)
Other Colorimetric Indices	Spectral reflectance, Whiteness (ASTM E313-00, ASTM E313-73, CIE, ISO2470/R457, AATCC, Hunter, Taube, Berger, Stensby), Yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73), Tint (ASTM E313-00), Metamerism Index (MI), Color Fastness to Staining, Color Change Fastness, Color Strength (Dye Strength, Tinting Power), Opacity, 555 Tone Classification, Blackness (My, dM)
Observer Angle	2° / 10°
Illuminant	D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8 ,F9,F10(TPL5),F11(TL84),F12(TL83/U30),B,U35,NBF,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5
Measurement Time	Approx. 1s
Display Resolution	Density value: 0.001;
Repeatability	Density: Within 0.01D
Repeatability	Colorimetric: ΔE*ab within 0.02 (Average of 30 measurements on white plate at 5s intervals after warm-up & calibration - except M3)
Inter-Instrument Agreement	ΔE*ab within 0.25 (Average across 14 BCRA Series II color tiles - except M3)
Measurement Method	Single measurement, Average measurement (2–99 times)
Locating Method	Integrated physical positioning hole
Dimensions	1707591.7mm
Weight	Approx. 600 g
Battery Capacity	Rechargeable lithium battery; 5000 measurements within 8 hours
Light Source Lifespan	5 years or over 3 million measurements
Display Screen	3.5-inch TFT color capacitive touchscreen
Interfaces	USB, Bluetooth
Data Storage	10,000 records
Software Support	Android, iOS, Windows, WeChat Mini-Program, HarmonyOS
Languages	Simplified Chinese, English, Traditional Chinese, Russian
Operating Environment	0–40°C, 0–85% RH (non-condensing), Altitude: Below 2000m
Storage Environment	-20–50°C, 0–85% RH (non-condensing)
Network Correction	/
Accuracy Guarantee	Guaranteed Metrology Compliance
Standard Accessories	Power Adapter, Data Cable, Built-in Lithium Battery, User Manual, QC Software (downloadable), Black & White Calibration Box, Protective Cover, Polarizing Filter Box
Optional Accessories	Micro Printer
Remarks	Technical specifications are for reference only and subject to actual sales products.
