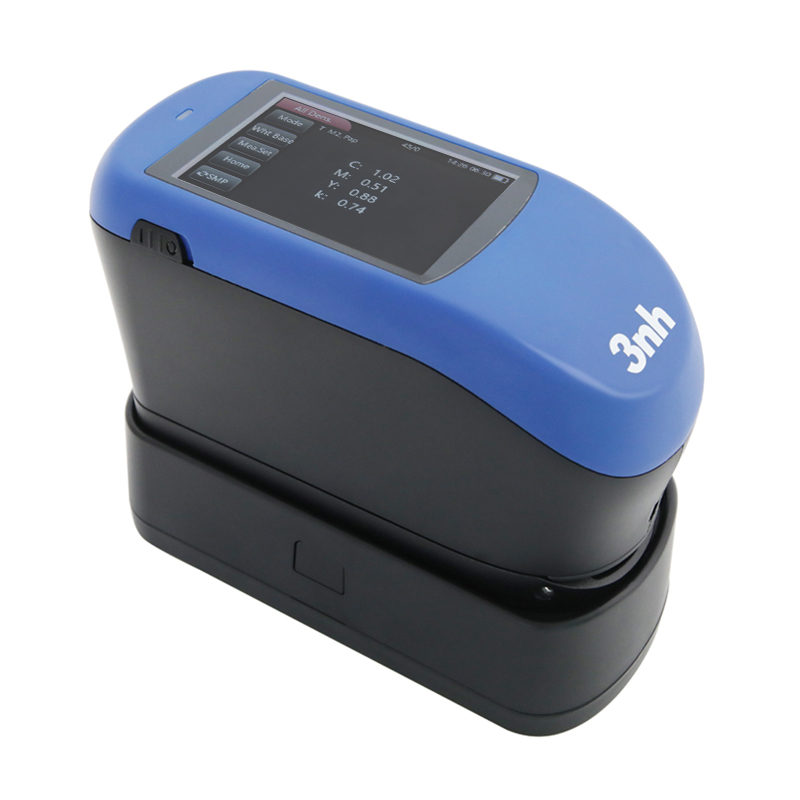

PS530 Spectrodensitometer

Whether applied to fine packaging, electronic screen printing, or miniature components, PS530 delivers accurate, professional data for enterprise quality upgrading....

Densitometers

Type: PS530

Description Additional information

Description

The 3nh PS530 is a professional-grade spectrodensitometer tailored for fine printing measurement and rigorous quality control across high-end packaging, precision electronics, and film plate-making industries. Featuring a 45/0 circumferential uniform illumination optical system paired with high-precision nanometer spectrophotometric components, it accurately captures critical printing metrics—including optical density, dot area, dot gain, and trapping ratio—while supporting Netmetric network calibration to ensure inter-instrument data consistency across multi-line operations. The defining advantage of the PS530 lies in its 'High Precision and Full-Scenario Coverage': equipped with 7 measuring apertures (down to Φ1.5mm) to meet micro-area testing demands, and tight inter-instrument agreement within ΔE*ab 0.20 for fleet synchronization. Whether applied to fine packaging, electronic screen printing, or miniature components, PS530 delivers accurate, professional data for enterprise quality upgrading.

1. Comprehensive Printing Metrics Coverage

Supports complete printing parameter measurements, including optical density, density difference, dot area, dot gain, trapping, printing contrast, tone error, grayness, and plate analysis, supplying total digital quality management.

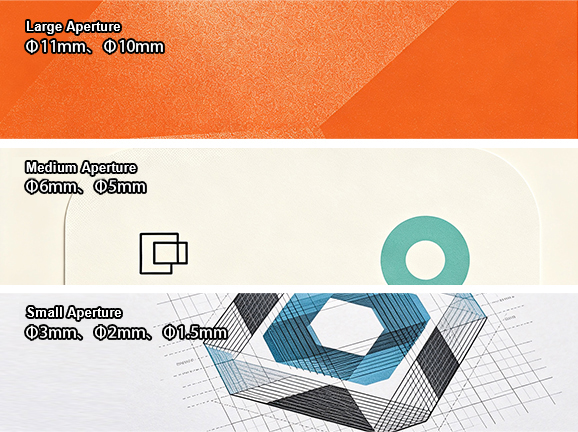

2. Seven Measuring Apertures for Micro-Block Versatility

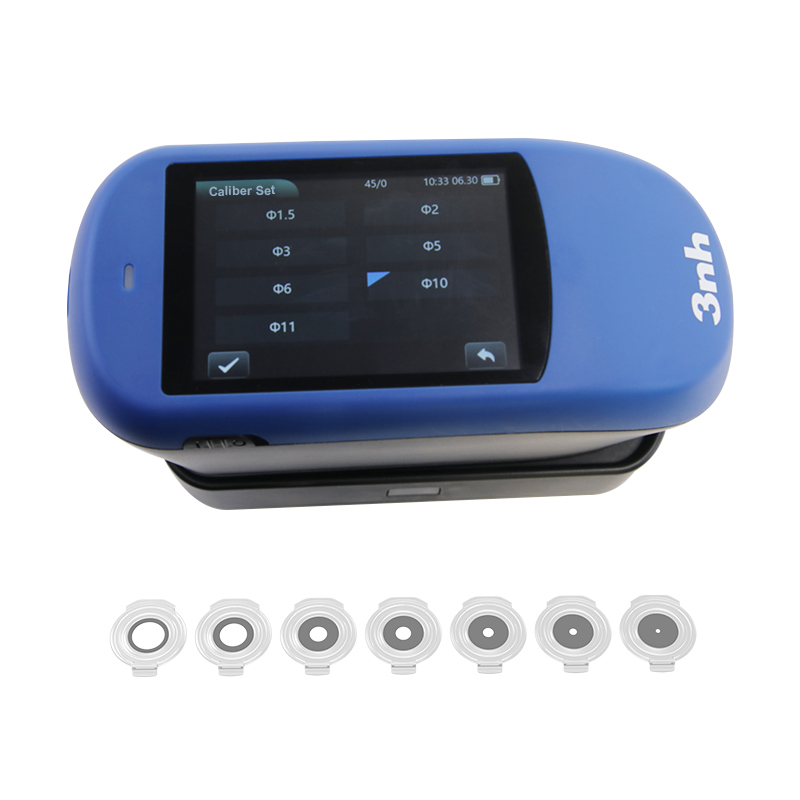

Equipped with 7 measuring apertures (Φ11mm, Φ10mm, Φ6mm, Φ5mm, Φ3mm, Φ2mm, and Φ1.5mm). The micro 1.5mm aperture accurately measures fine text, thin lines, and micro color patches, fulfilling demanding requirements in precision electronics and delicate component manufacturing.

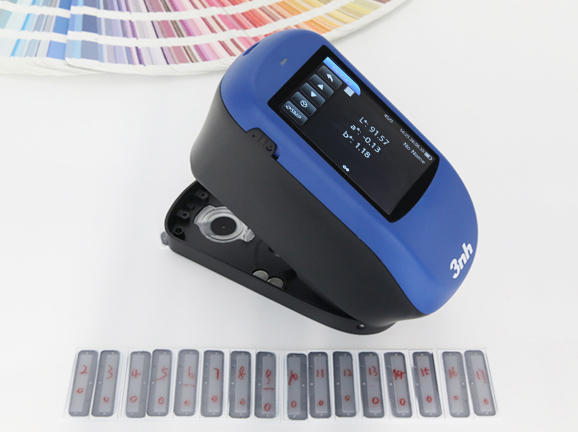

3. High Precision & Inter-Instrument Agreement

Density repeatability ≤ 0.01D and colorimetric repeatability ΔE*ab ≤ 0.02 ensure trustworthy stability. Inter-instrument agreement controlled within ΔE*ab 0.20 guarantees consistency across different production lines, workshops, and facilities.

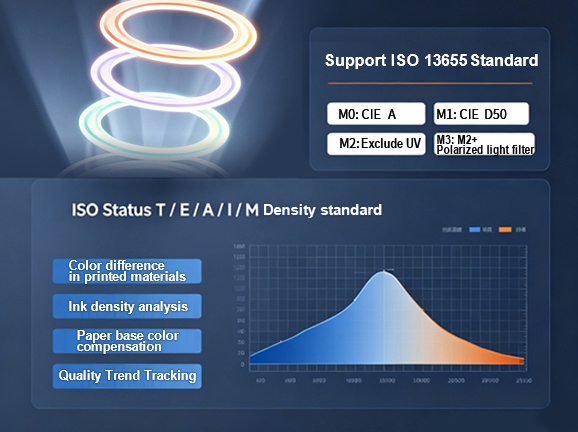

4. Multi-Condition Support & International Standard Compliance

Full compatibility with ISO 13655 measurement conditions (M0, M1, M2, M3) and ISO Status T, E, A, I, M density standards to seamlessly integrate into international testing workflows.

5. Advanced Colorimetric Indices

Provides rich color space support (CIE LAB, XYZ, Yxy, LCh, Munsell, etc.) and color difference formulas (ΔE*ab, ΔE*94, ΔE*cmc, ΔE*00), alongside indices for whiteness, yellowness, metamerism index, dye strength, opacity, and blackness.

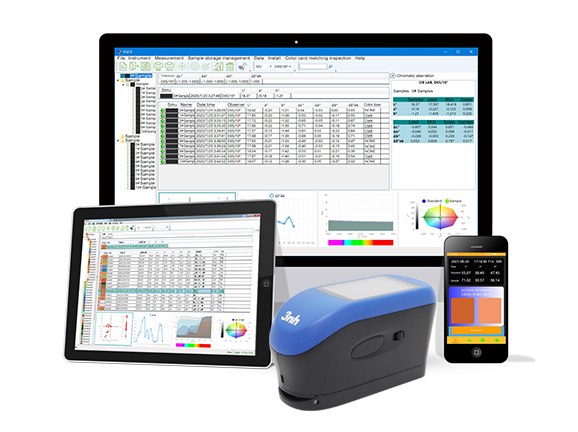

6. Multi-Platform Software Support

Seamless multi-device synchronization across Android, iOS, Windows, WeChat Mini-Program, and HarmonyOS with automatic report generation and one-click export.

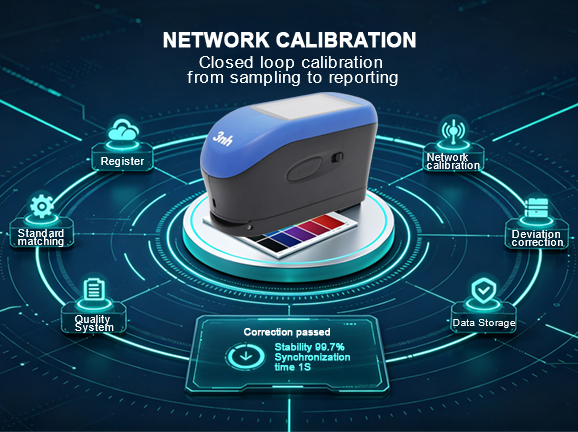

7. Netmetric Network Calibration

Supports Netmetric network calibration, enabling accumulated measurement deviations caused by long-term instrument use to be corrected remotely over the network. It also allows systematic calibration and alignment of all instruments within an organization and across its supply chain, significantly reducing inter-instrument measurement variation. For group enterprises with multiple factories and production lines, Netmetric enables unified quality standards and centralized management across sites, substantially reducing communication costs and quality risks associated with cross-factory collaboration.

Target Industry Applications

High-End Printing: Density and dot measurement for fine prints, micro-text, and thin-line printing plates.

Precision Electronics: Color testing for small plastic parts and electronic components.

Textile Dyeing & Printing: Color measurement, fastness rating, and print quality inspection for yarn and fine patterns.

Film Processing: High-precision film density testing and plate quality control.

Enterprise Groups: Unified printing quality standards management across multi-factory groups.

Technical Specification

Model	PS530
Illumination Geometry	45/0 (45° circumferential uniform illumination, 0° reception); Complies with ISO 5-4, CIE No. 15
Features	Versatile spectrodensitometer widely used for precise color measurement and quality control in ink printing, film processing, textile dyeing, plastics, and electronics. Ideal for optical density and dot gain measurement.
Light Source	Combined LED light source, UV light source
Spectrophotometric Mode	High-precision nanometer spectrophotometric component
Sensor	Silicon photodiode array (dual-array, 16 groups)
Wavelength Range	400–700 nm
Wavelength Interval	10 nm
Half Bandwidth	10 nm
Reflectance Range	0–200%
Reflectance Resolution	0.01%
Measurement Conditions	Complies with ISO 13655 conditions: M0 (CIE Illuminant A), M1 (CIE Illuminant D50), M2 (UV Cut), M3 (M2 + Polarizing Filter)
Density Standards	ISO Status T, E, A, I, M
Density Range	0.0 D – 3.0 D
Density Indices	Density value, density difference, dot area, dot gain, trapping, printing characteristics, print contrast, tone error and grayness, printing plate
Measuring Aperture	Φ11mm,Φ10mm,Φ6mm,Φ5mm,Φ3mm,Φ2mm,Φ1.5mm
Color Spaces	CIE LAB, XYZ, Yxy, LCh, CIE LUV, HunterLAB, s-RGB, βxy, DIN Lab99, Munsell
Color Difference Formulas	ΔEab, ΔEuv, ΔE94, ΔEcmc(2:1), ΔEcmc(1:1), ΔEcmc(1:c), ΔE*00, DINΔE99, ΔE(Hunter)
Other Colorimetric Indices	Spectral reflectance, Whiteness (ASTM E313-00, ASTM E313-73, CIE, ISO2470/R457, AATCC, Hunter, Taube, Berger, Stensby), Yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73), Tint (ASTM E313-00), Metamerism Index (MI), Color Fastness to Staining, Color Change Fastness, Color Strength (Dye Strength, Tinting Power), Opacity, 555 Tone Classification, Blackness (My, dM)
Observer Angle	2° / 10°
Illuminant	D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8 ,F9,F10(TPL5),F11(TL84),F12(TL83/U30),B,U35,NBF,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5
Measurement Time	Approx. 1s
Display Resolution	Density value: 0.001;
Repeatability	Density: Within 0.01D
Repeatability	Colorimetric: ΔE*ab within 0.02 (Average of 30 measurements on white plate at 5s intervals after warm-up & calibration - except M3)
Inter-Instrument Agreement	ΔE*ab within 0.20 (Average across 14 BCRA Series II color tiles - except M3)
Measurement Method	Single measurement, Average measurement (2–99 times)
Locating Method	Integrated physical positioning hole
Dimensions	1707591.7mm
Weight	Approx. 600 g
Battery Capacity	Rechargeable lithium battery; 5000 measurements within 8 hours
Light Source Lifespan	5 years or over 3 million measurements
Display Screen	3.5-inch TFT color capacitive touchscreen
Interfaces	USB, Bluetooth
Data Storage	10,000 records
Software Support	Android, iOS, Windows, WeChat Mini-Program, HarmonyOS
Languages	Simplified Chinese, English, Traditional Chinese, Russian
Operating Environment	0–40°C, 0–85% RH (non-condensing), Altitude: Below 2000m
Storage Environment	-20–50°C, 0–85% RH (non-condensing)
Network Correction	Supports Netmetric
Accuracy Guarantee	Guaranteed Metrology Compliance
Standard Accessories	Power Adapter, Data Cable, Built-in Lithium Battery, User Manual, QC Software (downloadable), Black & White Calibration Box, Protective Cover, Polarizing Filter Box
Optional Accessories	Micro Printer, Netmetric
Remarks	Technical specifications are for reference only and subject to actual sales products.
