TS1010 Spectrodensitometer (Standard Edition)

3nh TS1010 Spectrodensitometer (Standard Edition) is a premium print quality testing device specifically built for professional printing houses and packaging enterprises....

Densitometers

Type: TS1010

Description Additional information

Description

3nh TS1010 Spectrodensitometer (Standard Edition) is a premium print quality testing device specifically built for professional printing houses and packaging enterprises. Equipped with a dual-array 40-group silicon photodiode sensor, it accurately measures key indicators including optical density, dot area, dot gain, and trapping ratio, while supporting a density scanning function to comprehensively analyze print quality distribution. Delivering first-grade metrology accuracy, the TS1010 provides dependable data support across the entire production workflow. The TS1010 stands out for its 'Professional Precision and Authoritative Reliability': its planar grating spectrophotometric technology achieves a density repeatability of 0.001D, while the density scanning feature enables full-format quality analysis of printed media. Whether for in-process quality control or authoritative pre-shipment inspections, the TS1010 delivers professional, accurate, and traceable measurement data, making it an essential tool for small-to-medium printing enterprises seeking quality upgrades.

1. Comprehensive Coverage of All Printing Metrics for One-Stop Quality Control

Built-in with ISO Status T, E, A, I, and M multi-density standards, the TS1010 supports professional printing metrics including density value/difference, dot area and dot gain, trapping ratio, print contrast, hue error and grayness, printing plate inspection, and density scanning. It fulfills all-around quality control needs from pre-press adjustment to finished product sampling, providing in-depth print quality data analysis to support process optimization and quality enhancement.

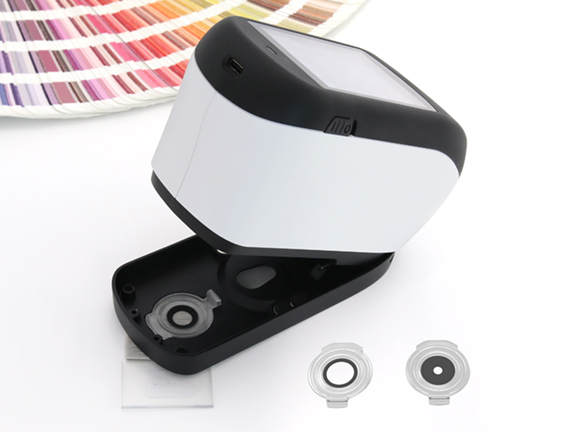

2. Three Interchangeable Apertures to Handle Diverse Samples Effortlessly

Standardized with three interchangeable measurement apertures—Φ11mm, Φ6mm, and Φ3mm. The large aperture is suited for uniform surfaces like paper and fabric; the small apertures target film dots, fine color bars, or PCB color patches. Covering most professional printing measurement scenarios, it offers exceptional cost-performance and serves as a premier choice for professional inspection entry.

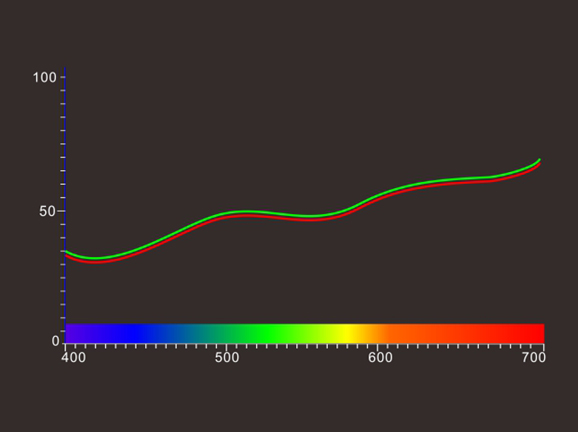

3. Full-Band Spectrum Visualization to Reveal Color Essence

Featuring a wavelength range of 400–700nm sampled accurately at 10nm intervals, the device generates real-time spectral reflectance curves. The shape of these curves allows direct observation of metamerism, providing intuitive physical evidence for color formulation validation and raw material evaluation.

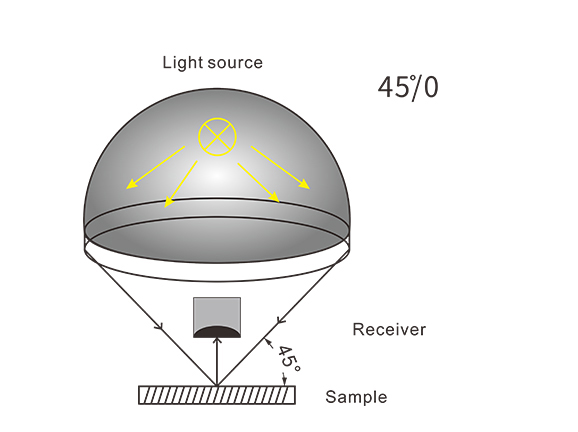

4. Standard 45/0 Optical Structure Aligned with Human Visual Perception

Utilizing a geometric design of 45° circumferential illumination and 0° reception, the instrument perfectly matches the CIE No. 15 standard. This structure effectively suppresses specular reflection interference caused by surface texture, directional gloss, or brushed finishes, ensuring measurement data closely reflects true human color perception.

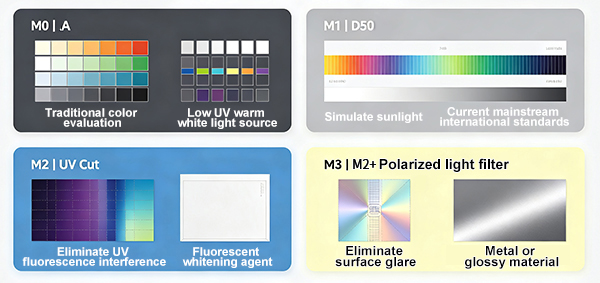

5. Four Measurement Conditions (M0–M3) Fully Compliant with International Standards

Complies with all four illumination conditions specified by ISO 13655:

M0 (Illuminant A): Suitable for traditional color evaluation.

M1 (Illuminant D50): Simulates daylight, adhering to mainstream international standards.

M2 (UV Cut): Excludes UV fluorescence interference, specifically designed for samples containing optical brighteners (OBA).

M3 (M2 + Polarizing Filter): Effectively eliminates surface glare, ideal for high-gloss prints or metallic luster materials. Note: Under M3 polarization mode, repeatability and inter-instrument agreement parameters are slightly adjusted; refer to technical specifications for details.

Four Measurement Conditions (M0–M3) Fully Compliant with International Standards

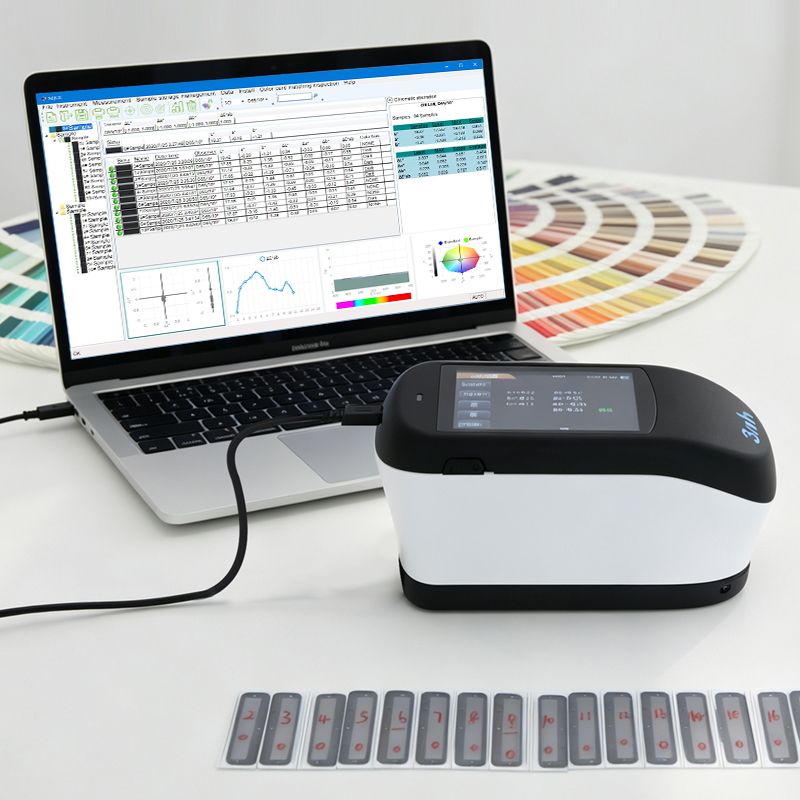

6. Multi-Platform Software Support for Effortless Data Management

The companion software is fully compatible with Android, iOS, Windows, HarmonyOS, and WeChat Mini-Programs, enabling seamless data export, report generation, and remote collaboration. Paired with Netmetric network calibration features, calibration parameters can be updated online in real time, ensuring data consistency and long-term stability across multiple devices.

Target Industry Applications

Professional Printing: Precision density measurement and quality control for packaging and commercial printing.

Inspection Agencies: Authoritative measurement equipment for third-party testing and quality certification.

Packaging Enterprises: Comprehensive printing quality testing for color boxes, labels, and flexible packaging.

Ink Manufacturing: Ink R&D, quality control, and factory shipment inspection.

Publishing & Printing: Quality control for books, periodicals, and picture albums.

Technical Specification

Model	TS1010
Illumination Geometry	45/0 (45° circumferential uniform illumination, 0° reception); Complies with ISO 5-4, CIE No. 15
Features	High-precision spectrodensitometer widely used for precise color measurement and quality control in ink printing, film processing, textile dyeing, plastics, and electronics. Ideal for accurate optical density and dot gain measurement in ink printing.
Light Source	Combined LED light source, UV light source
Spectrophotometric Mode	Planar grating spectrophotometry
Sensor	Silicon photodiode array (dual-array, 40 groups)
Wavelength Range	400–700 nm
Wavelength Interval	10 nm
Half Bandwidth	10 nm
Reflectance Range	0–200%
Reflectance Resolution	0.01%
Measurement Conditions	Complies with ISO 13655 conditions: M0 (CIE Illuminant A), M1 (CIE Illuminant D50), M2 (UV Cut), M3 (M2 + Polarizing Filter)
Density Standards	ISO Status T, E, A, I, M
Density Range	0.0 D – 3.0 D
Density Indices	Density value, density difference, dot area, dot gain, trapping, printing characteristics, print contrast, tone error and grayness, printing plate, density scanning
Measuring Aperture	Φ11mm,Φ6mm,Φ3mm
Color Spaces	CIE LAB, XYZ, Yxy, LCh, CIE LUV, HunterLAB, s-RGB, βxy, DIN Lab99, Munsell
Color Difference Formulas	ΔEab, ΔEuv, ΔE94, ΔEcmc(2:1), ΔEcmc(1:1), ΔEcmc(1:c), ΔE*00, DINΔE99, ΔE(Hunter)
Other Colorimetric Indices	Spectral reflectance, Whiteness (ASTM E313-00, ASTM E313-73, CIE, ISO2470/R457, AATCC, Hunter, Taube, Berger, Stensby), Yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73), Tint (ASTM E313-00), Metamerism Index (MI), Color Fastness to Staining, Color Change Fastness, Color Strength (Dye Strength, Tinting Power), Opacity, 555 Tone Classification, Blackness (My, dM)
Observer Angle	2° / 10°
Illuminant	D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8 ,F9,F10(TPL5),F11(TL84),F12(TL83/U30),B,U35,NBF,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5
Measurement Time	Approx. 1s
Display Resolution	Density value: 0.001;
Repeatability	Density: Within 0.001D
Repeatability	Colorimetric: ΔE*ab within 0.02 (Average of 30 measurements on white plate at 5s intervals after warm-up & calibration - except M3)
Inter-Instrument Agreement	ΔE*ab within 0.25 (Average across 14 BCRA Series II color tiles - except M3)
Measurement Method	Single measurement, Average measurement (2–99 times)
Locating Method	Integrated physical positioning hole
Dimensions	1707591.7mm
Weight	Approx. 600 g
Battery Capacity	Rechargeable lithium battery; 5000 measurements within 8 hours
Light Source Lifespan	5 years or over 3 million measurements
Display Screen	3.5-inch TFT color capacitive touchscreen
Interfaces	USB, Bluetooth
Data Storage	10,000 records
Software Support	Android, iOS, Windows, WeChat Mini-Program, HarmonyOS
Languages	Simplified Chinese, English, Traditional Chinese, Russian
Operating Environment	0–40°C, 0–85% RH (non-condensing), Altitude: Below 2000m
Storage Environment	-20–50°C, 0–85% RH (non-condensing)
Network Correction	Supports Netmetric
Accuracy Guarantee	Guaranteed First-Grade Metrology Compliance

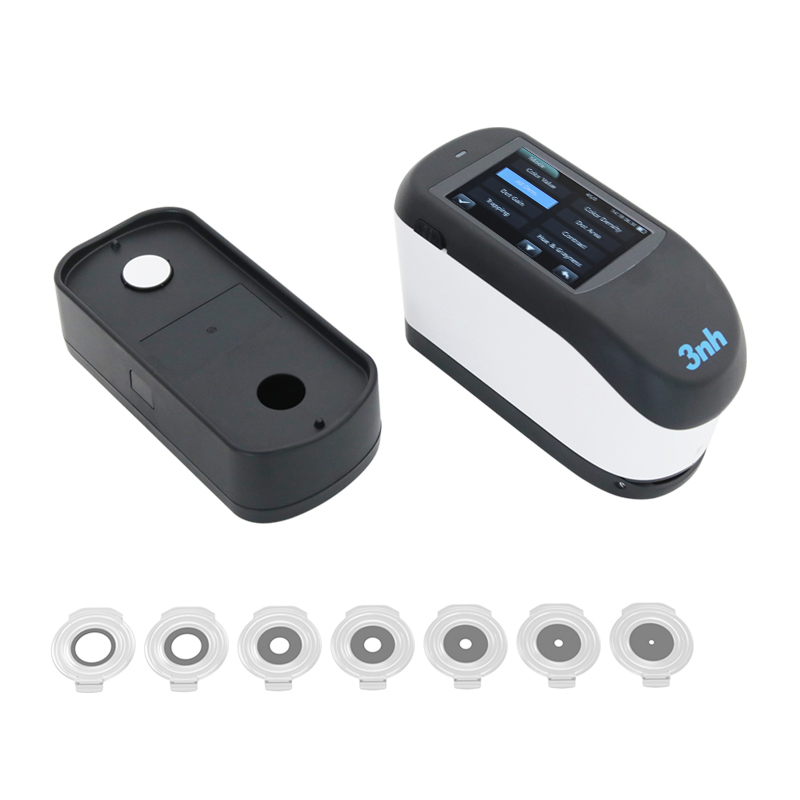

Standard Accessories	Power Adapter, Data Cable, Built-in Lithium Battery, User Manual, QC Software (downloadable), Black & White Calibration Box, Protective Cover, Polarizing Filter Box
Optional Accessories	Micro Printer, Netmetric
Remarks	Technical specifications are for reference only and subject to actual sales products.
