TS1050 Spectrodensitometer (Professional Edition)

Whether for daily production quality control, multi-machine unified management, or large-batch finished product inspection, TS1050 delivers a professional, accurate, and efficient measurement solution....

Densitometers

Type: TS1050

Description Additional information

Description

3nh TS1050 Spectrodensitometer (Professional Edition) is a high-precision quality control device designed for medium-to-large printing enterprises, professional quality inspection agencies, and packaging groups. Utilizing planar grating spectrophotometric technology and equipped with a dual-array 40-group silicon photodiode sensor, it achieves a density repeatability of 0.001D and supports a density scanning function to comprehensively analyze print quality distribution. With guaranteed first-grade metrology certification, the TS1050 ensures measurement data authority and traceability, catering to diverse, high-precision, and large-data volume testing needs. The core advantage of TS1050 lies in being ‘Professional, Comprehensive, Precise, and Efficient’: featuring 5 interchangeable measurement apertures to cover full-scenario requirements from large color blocks to fine graphics, an inter-instrument agreement of 0.20 to ensure data consistency across multiple machines, and a massive 20,000-record storage capacity for batch inspection data traceability. Whether for daily production quality control, multi-machine unified management, or large-batch finished product inspection, TS1050 delivers a professional, accurate, and efficient measurement solution.

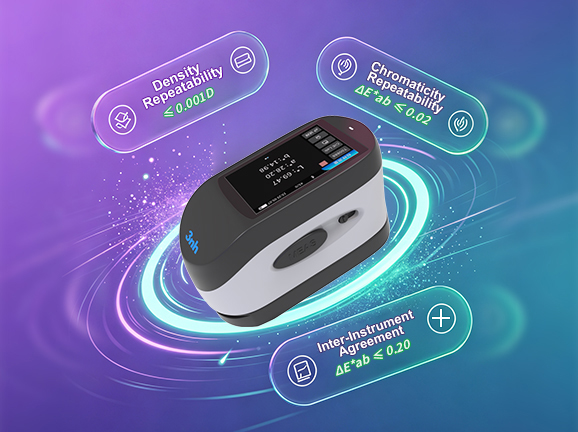

1. Exceptional Repeatability for Rock-Solid Data

Density Repeatability: ≤ 0.001D
Colorimetric Repeatability: ΔE*ab ≤ 0.02 (Based on average of 30 white plate measurements, except M3)
Inter-Instrument Agreement: ΔE*ab ≤ 0.20 For enterprises operating multiple devices across various workshops, it ensures highly consistent measurement data across machines, unifying quality control standards while lowering cross-department communication costs and quality risks.

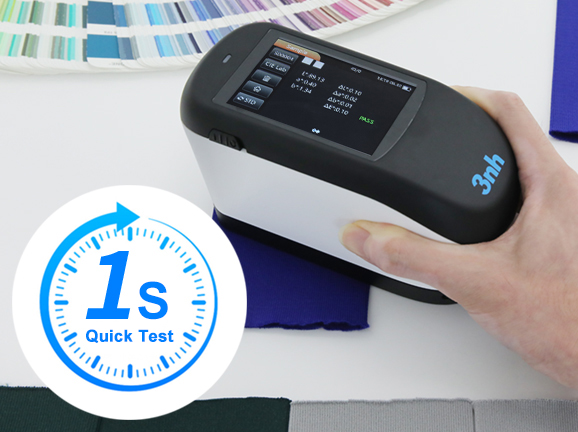

2. 1-Second Ultra-Fast Measurement for High Production Efficiency

A single measurement takes only about 1 second, substantially accelerating batch testing, minimizing worker waiting time, and enhancing production line inspection throughput.

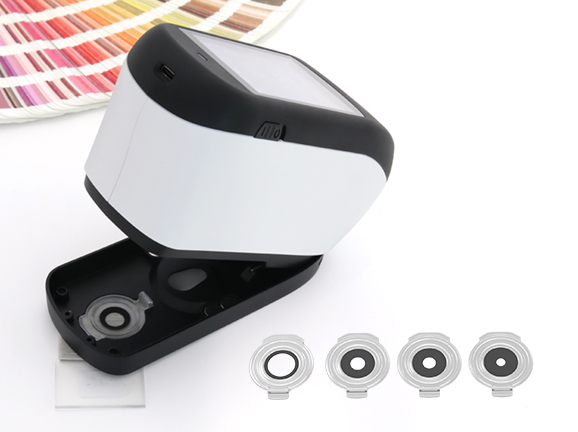

3. Five Interchangeable Apertures for All-Scenario Versatility

Equipped with 5 measurement apertures: Φ11mm, Φ10mm, Φ6mm, Φ5mm, and Φ3mm. Users can flexibly select according to sample size and measurement needs. From large solid color patches to medium fine patterns, one device covers full measurement scenarios without frequent device switching, drastically improving testing efficiency.

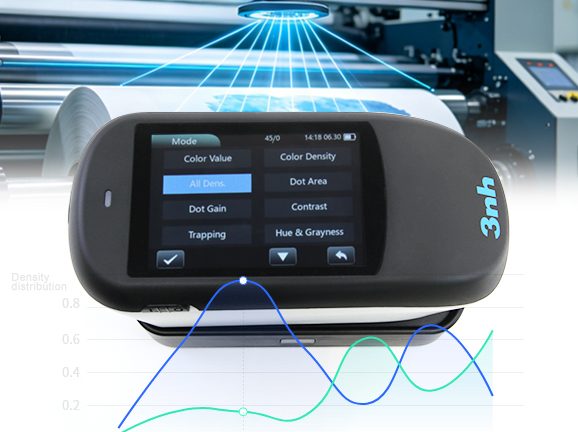

4. Density Scanning Function for Full-Format Quality Evaluation

Supports continuous multi-point density scanning on printed materials to generate density distribution curves, visually demonstrating full-page printing uniformity. Scanning data quickly pinpoints local density deviations and uneven ink layer thickness, assisting technicians in diagnosing press status, accelerating color matching/calibration, and elevating overall print quality.

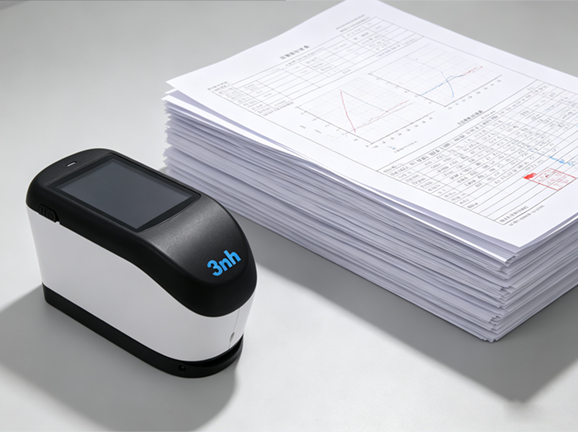

5. First-Grade Metrology Compliance with Authoritative Traceability

Guaranteed first-grade metrology compliance provides high authority and traceability, satisfying strict requirements for ISO quality system certification, customer audits, and third-party testing. It helps enterprises pass high-end client factory audits and gain competitive market advantages.

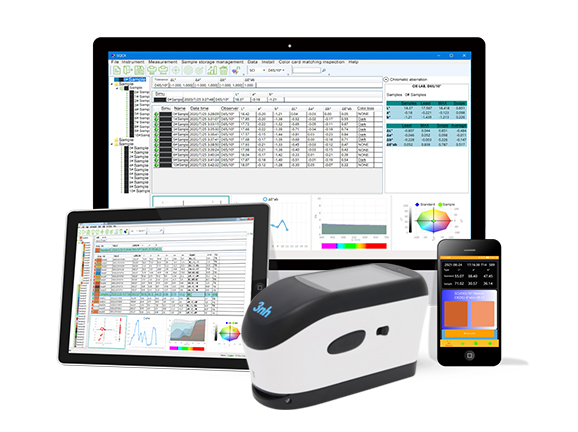

6. Multi-Platform Software Support for Professional Data Management

Supports real-time multi-platform synchronization across Android, iOS, Windows, WeChat Mini-Program, and HarmonyOS. Enables cloud color library searching, personal color database creation, enterprise-level color library sharing, auto-generation of professional analytical reports, and one-click export of quality inspection documentation.

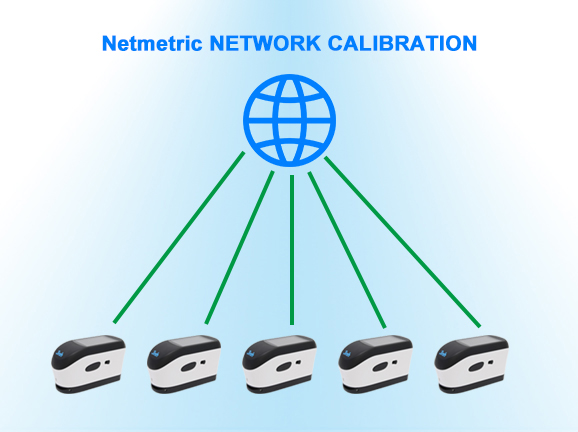

7. Netmetric Network Calibration Ensuring Fleet-Wide Data Consistency

Supports Netmetric network calibration, enabling accumulated measurement deviations caused by long-term instrument use to be corrected remotely over the network. It also allows systematic calibration and alignment of all instruments within an organization and across its supply chain, significantly reducing inter-instrument measurement variation. For group enterprises with multiple factories and production lines, Netmetric enables unified quality standards and centralized management across sites, substantially reducing communication costs and quality risks associated with cross-factory collaboration.

Technical Specification

Model	TS1050
Illumination Geometry	45/0 (45° circumferential uniform illumination, 0° reception); Complies with ISO 5-4, CIE No. 15
Features	High-precision spectrodensitometer widely used for precise color measurement and quality control in ink printing, film processing, textile dyeing, plastics, and electronics. Ideal for accurate optical density and dot gain measurement in ink printing.
Light Source	Combined LED light source, UV light source
Spectrophotometric Mode	Planar grating spectrophotometry
Sensor	Silicon photodiode array (dual-array, 40 groups)
Wavelength Range	400–700 nm
Wavelength Interval	10 nm
Half Bandwidth	10 nm
Reflectance Range	0–200%
Reflectance Resolution	0.01%
Measurement Conditions	Complies with ISO 13655 conditions: M0 (CIE Illuminant A), M1 (CIE Illuminant D50), M2 (UV Cut), M3 (M2 + Polarizing Filter)
Density Standards	ISO Status T, E, A, I, M
Density Range	0.0 D – 3.0 D
Density Indices	Density value, density difference, dot area, dot gain, trapping, printing characteristics, print contrast, tone error and grayness, printing plate, density scanning
Measuring Aperture	Φ11mm,Φ10mm,Φ6mm,Φ5mm,Φ3mm
Color Spaces	CIE LAB, XYZ, Yxy, LCh, CIE LUV, HunterLAB, s-RGB, βxy, DIN Lab99, Munsell
Color Difference Formulas	ΔEab, ΔEuv, ΔE94, ΔEcmc(2:1), ΔEcmc(1:1), ΔEcmc(1:c), ΔE*00, DINΔE99, ΔE(Hunter)
Other Colorimetric Indices	Spectral reflectance, Whiteness (ASTM E313-00, ASTM E313-73, CIE, ISO2470/R457, AATCC, Hunter, Taube, Berger, Stensby), Yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73), Tint (ASTM E313-00), Metamerism Index (MI), Color Fastness to Staining, Color Change Fastness, Color Strength (Dye Strength, Tinting Power), Opacity, 555 Tone Classification, Blackness (My, dM)
Observer Angle	2° / 10°
Illuminant	D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8 ,F9,F10(TPL5),F11(TL84),F12(TL83/U30),B,U35,NBF,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5
Measurement Time	Approx. 1s
Display Resolution	Density value: 0.001;
Repeatability	Density: Within 0.001D
Repeatability	Colorimetric: ΔE*ab within 0.02 (Average of 30 measurements on white plate at 5s intervals after warm-up & calibration - except M3)
Inter-Instrument Agreement	ΔE*ab within 0.20 (Average across 14 BCRA Series II color tiles - except M3)
Measurement Method	Single measurement, Average measurement (2–99 times)
Locating Method	Integrated physical positioning hole
Dimensions	1707591.7mm
Weight	Approx. 600 g
Battery Capacity	Rechargeable lithium battery; 5000 measurements within 8 hours
Light Source Lifespan	5 years or over 3 million measurements
Display Screen	3.5-inch TFT color capacitive touchscreen
Interfaces	USB, Bluetooth
Data Storage	20,000 records
Software Support	Android, iOS, Windows, WeChat Mini-Program, HarmonyOS
Languages	Simplified Chinese, English, Traditional Chinese, Russian
Operating Environment	0–40°C, 0–85% RH (non-condensing), Altitude: Below 2000m
Storage Environment	-20–50°C, 0–85% RH (non-condensing)
Network Correction	Supports Netmetric
Accuracy Guarantee	Guaranteed First-Grade Metrology Compliance
Standard Accessories	Power Adapter, Data Cable, Built-in Lithium Battery, User Manual, QC Software (downloadable), Black & White Calibration Box, Protective Cover, Polarizing Filter Box
Optional Accessories	Micro Printer, Netmetric
Remarks	Technical specifications are for reference only and subject to actual sales products.
