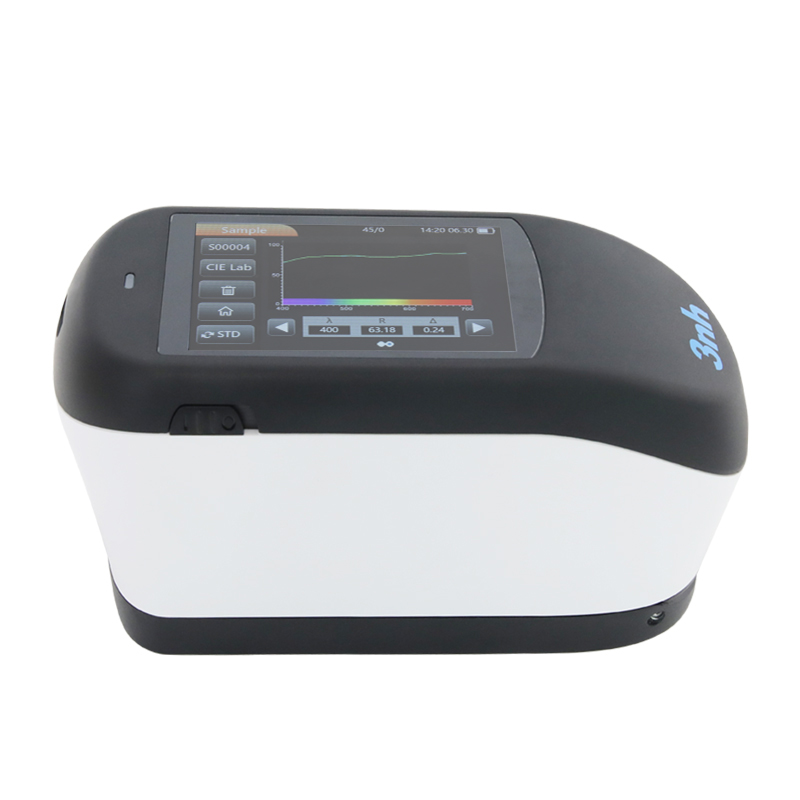

TS1060 Spectrodensitometer (Advanced Edition)

Whether for research-grade precision measurement or authoritative testing, TS1060 is the ultimate choice for users demanding perfection in quality....

Densitometers

Type: TS1060

Description Additional information

Description

3nh TS1060 Spectrodensitometer (Advanced Edition) is the flagship model of the spectrodensitometer series, custom-engineered for high-end printing enterprises, precision electronics manufacturers, research institutes, and quality inspection agencies. Utilizing planar grating spectrophotometric technology and equipped with a dual-array 40-group silicon photodiode sensor, it achieves a density repeatability of 0.001D, supports density scanning, and guarantees First-Grade Metrology Compliance. The TS1060 stands out for its 'Flagship Precision and Ultimate Performance': inter-instrument agreement is optimized to within ΔE*ab 0.18 (reaching industry-leading standards to ensure high data consistency across multiple devices and production plants), 7 measurement apertures provide full-scenario coverage from standard to extreme testing requirements, and 20,000-record storage paired with professional software enables comprehensive data management and quality traceability. Whether for research-grade precision measurement or authoritative testing, TS1060 is the ultimate choice for users demanding perfection in quality.

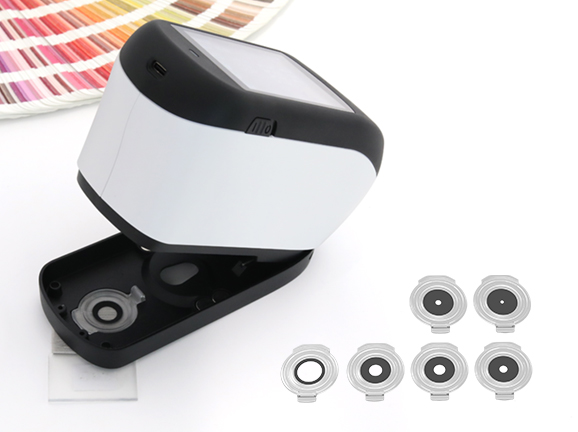

1. Seven Interchangeable Apertures for Ultimate Full-Scenario Coverage

Equipped with 7 measurement apertures: Φ11mm, Φ10mm, Φ6mm, Φ5mm, Φ3mm, Φ2mm, and Φ1.5mm. The ultra-small 1.5mm aperture accurately measures micro-text, fine graphics, and delicate electronic components. A single device handles everything from micro-areas to large color patches without requiring multiple instrument purchases, significantly lowering capital investment and management complexity.

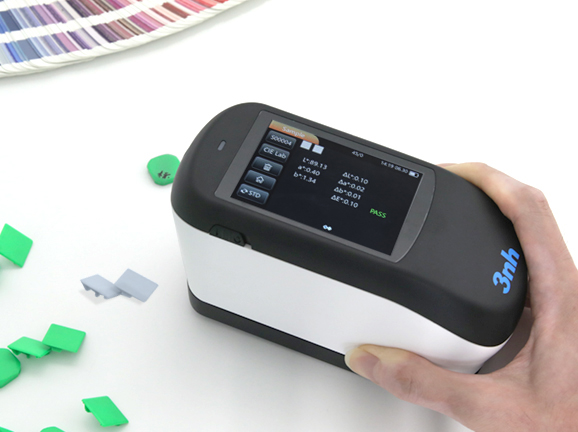

2. Superior Repeatability & Inter-Instrument Agreement for Rock-Solid Reliability

Achieves density repeatability ≤ 0.001D and colorimetric repeatability ΔE*ab ≤ 0.02 (30-measurement white plate average at 5s intervals after the instrument is preheated and calibrated, except M3). Inter-instrument agreement is controlled within ΔE*ab ≤ 0.18 (average across 14 BCRA Series II color tiles, except M3). For group enterprises operating across multiple factories, it guarantees seamless measurement consistency across devices, workshops, and plants. For inspection institutions, it ensures test reports carry equal authority and comparability.

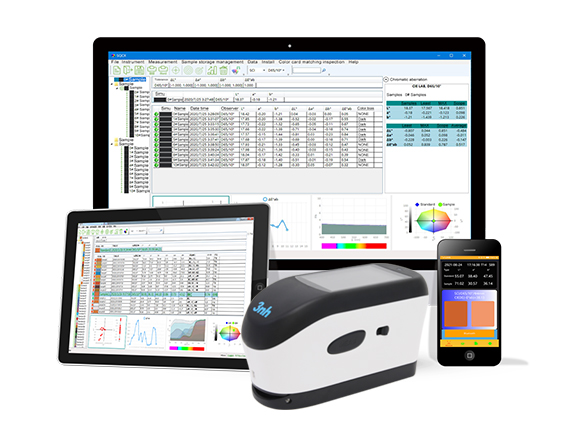

3. Multi-Platform Software Support for Enhanced Data Efficiency

Onboard storage holds up to 20,000 measurement records with seamless multi-terminal synchronization across Android, iOS, Windows, WeChat Mini-Program, and HarmonyOS. Automatically generates professional analytical reports with one-click export functionality.

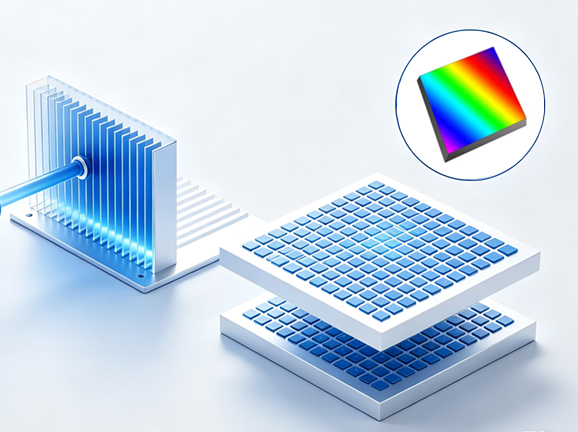

4. Flagship Optical System with Research-Grade Accuracy

Combines planar grating spectrophotometry with a dual-array 40-group silicon photodiode array sensor for research-grade spectral acquisition and analytical precision. Density repeatability within 0.001D captures subtle density and color variances. Supports continuous multi-point density scanning to generate full-format density distribution curves, comprehensively evaluating printing uniformity.

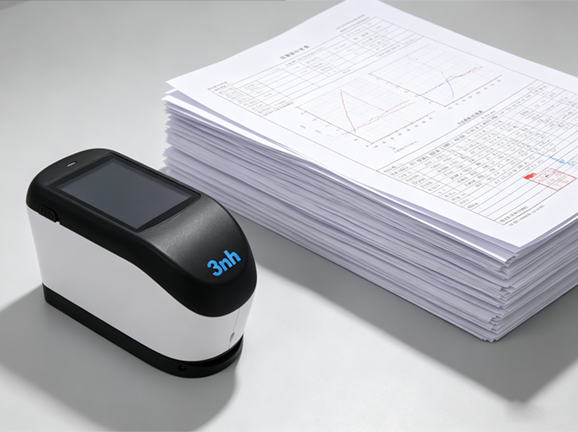

5. First-Grade Metrology Certification for Authoritative Traceability

Guaranteed First-Grade Metrology Compliance ensures measurement data authority and traceability, fulfilling rigorous demands for quality inspection, scientific experiments, ISO quality system certifications, and high-end client audits. Helps enterprises pass client factory audits smoothly and improves brand prestige.

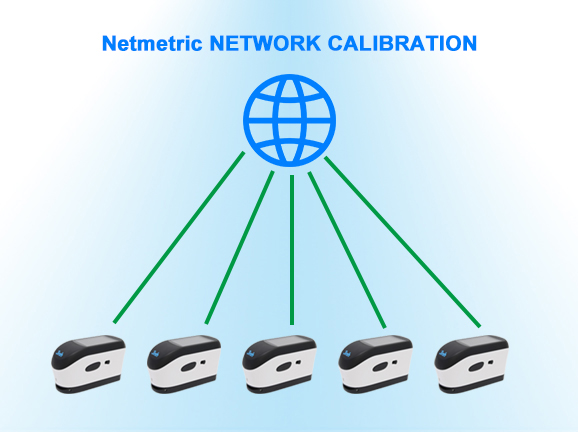

6. Netmetric Network Calibration for Unified Fleet Consistency

Supports Netmetric network calibration, enabling accumulated measurement deviations caused by long-term instrument use to be corrected remotely over the network. It also allows systematic calibration and alignment of all instruments within an organization and across its supply chain, significantly reducing inter-instrument measurement variation. For group enterprises with multiple factories and production lines, Netmetric enables unified quality standards and centralized management across sites, substantially reducing communication costs and quality risks associated with cross-factory collaboration.

Target Industry Applications

High-End Printing: Precision color measurement for fine art books, luxury packaging, and anti-counterfeiting printing.

Precision Electronics: Precise appearance color testing for smartphones, tablets, and wearable devices.

Research Institutes: Color science research and optical property testing of materials.

Quality Inspection: Authoritative equipment for third-party testing agencies and metrology institutions.

Enterprise Groups: Unified printing quality standard management across multi-factory groups.

Brand Quality Control: Global supplier quality management and incoming material inspection for premium brands.

Technical Specification

Model	TS1060
Illumination Geometry	45/0 (45° circumferential uniform illumination, 0° reception); Complies with ISO 5-4, CIE No. 15
Features	High-precision spectrodensitometer widely used for precise color measurement and quality control in ink printing, film processing, textile dyeing, plastics, and electronics. Ideal for accurate optical density and dot gain measurement in ink printing.
Light Source	Combined LED light source, UV light source
Spectrophotometric Mode	Planar grating spectrophotometry
Sensor	Silicon photodiode array (dual-array, 40 groups)
Wavelength Range	400–700 nm
Wavelength Interval	10 nm
Half Bandwidth	10 nm
Reflectance Range	0–200%
Reflectance Resolution	0.01%
Measurement Conditions	Complies with ISO 13655 conditions: M0 (CIE Illuminant A), M1 (CIE Illuminant D50), M2 (UV Cut), M3 (M2 + Polarizing Filter)
Density Standards	ISO Status T, E, A, I, M
Density Range	0.0 D – 3.0 D
Density Indices	Density value, density difference, dot area, dot gain, trapping, printing characteristics, print contrast, tone error and grayness, printing plate, density scanning
Measuring Aperture	Φ11mm,Φ10mm,Φ6mm,Φ5mm,Φ3mm,Φ2mm,Φ1.5mm
Color Spaces	CIE LAB, XYZ, Yxy, LCh, CIE LUV, HunterLAB, s-RGB, βxy, DIN Lab99, Munsell
Color Difference Formulas	ΔEab, ΔEuv, ΔE94, ΔEcmc(2:1), ΔEcmc(1:1), ΔEcmc(1:c), ΔE*00, DINΔE99, ΔE(Hunter)
Other Colorimetric Indices	Spectral reflectance, Whiteness (ASTM E313-00, ASTM E313-73, CIE, ISO2470/R457, AATCC, Hunter, Taube, Berger, Stensby), Yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73), Tint (ASTM E313-00), Metamerism Index (MI), Color Fastness to Staining, Color Change Fastness, Color Strength (Dye Strength, Tinting Power), Opacity, 555 Tone Classification, Blackness (My, dM)
Observer Angle	2° / 10°
Illuminant	D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8 ,F9,F10(TPL5),F11(TL84),F12(TL83/U30),B,U35,NBF,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5
Measurement Time	Approx. 1s
Display Resolution	Density value: 0.001;
Repeatability	Density: Within 0.001D
Repeatability	Colorimetric: ΔE*ab within 0.02 (Average of 30 measurements on white plate at 5s intervals after warm-up & calibration - except M3)
Inter-Instrument Agreement	ΔE*ab within 0.18 (Average across 14 BCRA Series II color tiles - except M3)
Measurement Method	Single measurement, Average measurement (2–99 times)
Locating Method	Integrated physical positioning hole
Dimensions	1707591.7mm
Weight	Approx. 600 g
Battery Capacity	Rechargeable lithium battery; 5000 measurements within 8 hours
Light Source Lifespan	5 years or over 3 million measurements
Display Screen	3.5-inch TFT color capacitive touchscreen
Interfaces	USB, Bluetooth
Data Storage	20,000 records
Software Support	Android, iOS, Windows, WeChat Mini-Program, HarmonyOS
Languages	Simplified Chinese, English, Traditional Chinese, Russian
Operating Environment	0–40°C, 0–85% RH (non-condensing), Altitude: Below 2000m
Storage Environment	-20–50°C, 0–85% RH (non-condensing)
Network Correction	Supports Netmetric
Accuracy Guarantee	Guaranteed First-Grade Metrology Compliance
Standard Accessories	Power Adapter, Data Cable, Built-in Lithium Battery, User Manual, QC Software (downloadable), Black & White Calibration Box, Protective Cover, Polarizing Filter Box
Optional Accessories	Micro Printer, Netmetric
Remarks	Technical specifications are for reference only and subject to actual sales products.
