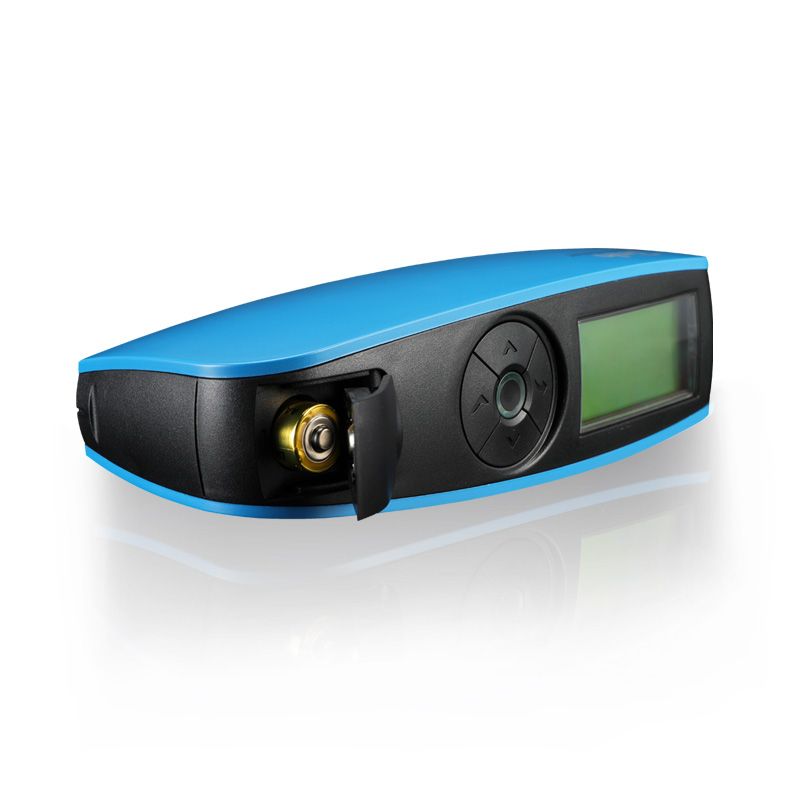

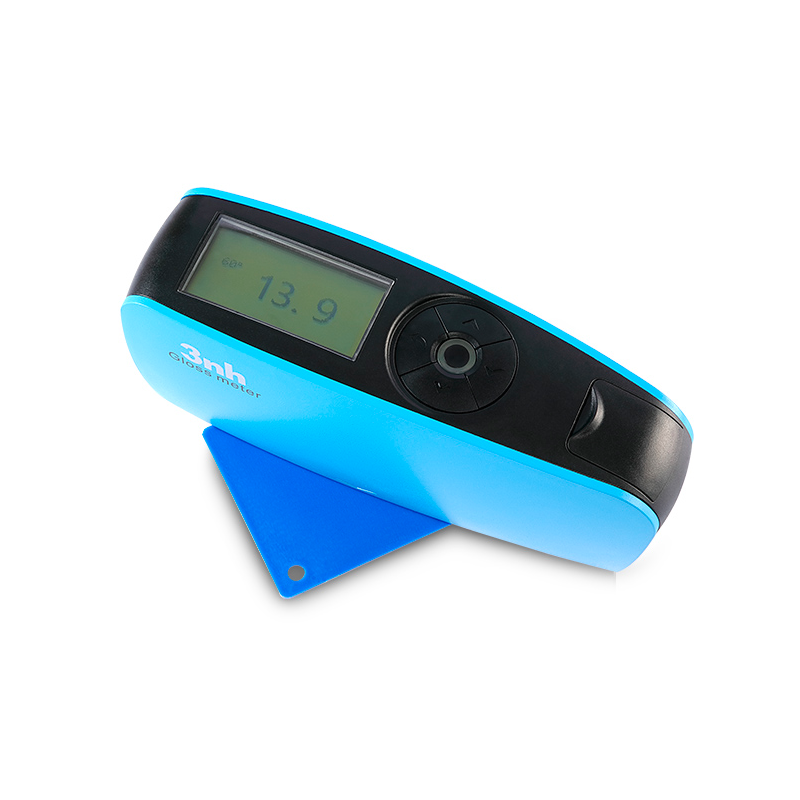

YG60 60°Accurate Gloss Meter is independently developed by Shenzhen 3nh Technology Co., Ltd with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet the first grade requirements of JJG696.
YG series gloss meter also features with USB/RS-232 interface and Blutooth 2.1 dual mode.
Product Features:
1. Elegant Design combined with aesthetics and ergonomics;
2. With auto-calibration function;
3. Meet the first grade requirements of JJG696;
4. Large storage to save over 35000 data;
5. Auto Power-off within optional 30-120 seconds;
6. Comply to ISO2813,ASTM523, GB/T9754;
7. With PC software for quality report, more extend functions;
8. With multi working modes and multi-functions for most customers’ requirements.
Application:
Widely used in the filed of paints,coating,plastics,ink,rubber,printing,paper, glass, handware, ceramic, marble etc.
|
Model |
YG60 60°Accurate Gloss Meter |
|
Measuring Angle |
60° |
|
Measuring Area |
60°: 0-1000GU |
|
Division Value |
0.1GU |
|
Measuring Modes |
Basic mode; Statistic mode; Continuous mode; QC mode |
|
Measuring Time |
0.5S |
|
Repeatability |
0~100GU : ±0.2GU; 100~1000GU : ±0.2%GU |
|
Accurate |
Conform with JJG696 first grade requirements of gloss meter |
|
Auto Power-off Time |
Within 30s-120s |
|
Long-time Calibration |
Automatically check and made the calibration |
|
Language |
Chinese & English |
|
Storage |
35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000) |
|
Display |
2.3 inch white and black screen |
|
Size |
160*52*84mm |
|
Weight |
About 300g |
|
Power Supply |
1pc dry-cell battery(can measure 10000 times) or use USB Charge |
|
Interface |
USB & Bluetooth 2.1 version |
|
PC Software |
GQC6 QC software can printing testing report and with more extended functions |
|
Operation Temperature Range |
0-40℃（32-104° F） |
|
Storage Temperature Range |
-20-50℃（-4-122° F） |
|
Humidity Range | < 85% RH, without condensation |
|
Standard Accessories |
USB cable, user manual, calibration plate, QC software |
|
Optional Accessories |
Miniature printer |
|
Notification: the technical parameter is only for reference |
