KS60 Glossmeter

It features a 60° measurement angle with a 9×15 mm measurement spot, a wide range of 0-1000 GU, and a resolution of 0.1 GU to ensure accurate data....

Gloss meters

Brands:

Type: KS60

Description Additional information

Description

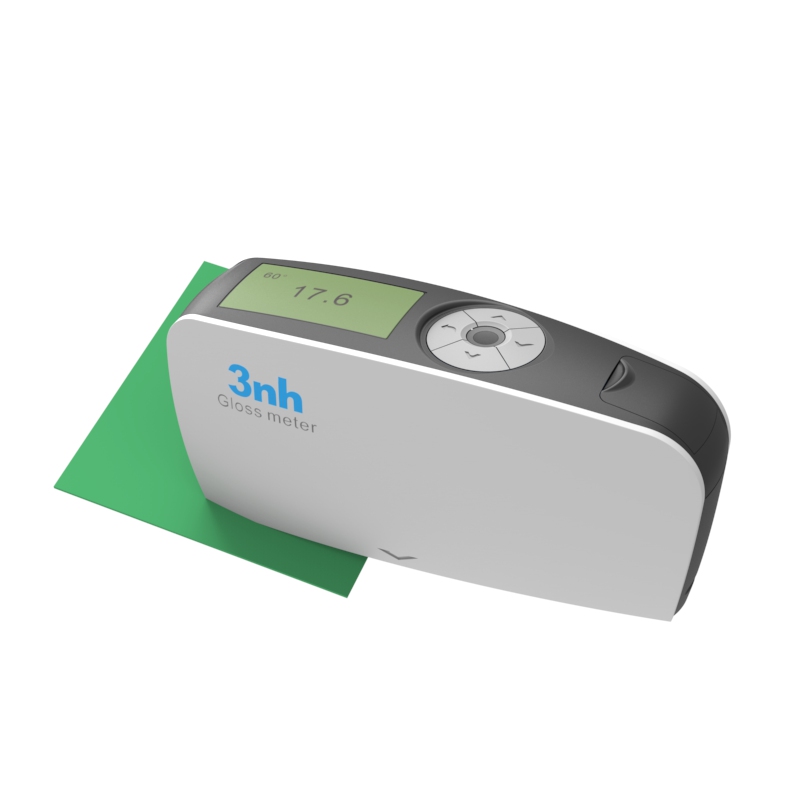

3NH KS60 Glossmeter Designed for precise measurement across multiple industries. It features a 60° measurement angle with a 9×15 mm measurement spot, a wide range of 0-1000 GU, and a resolution of 0.1 GU to ensure accurate data. Widely applicable for gloss measurement and data transmission in industries such as paints and inks, coatings, paper and printing, plastics and electronics, furniture, ceramics, electroplating, hardware, and marble.

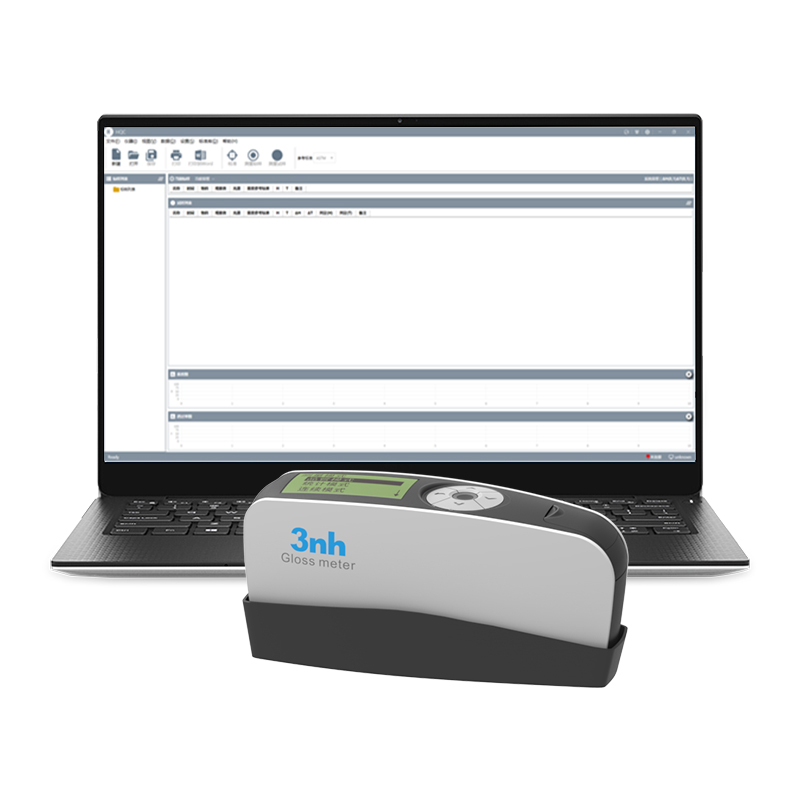

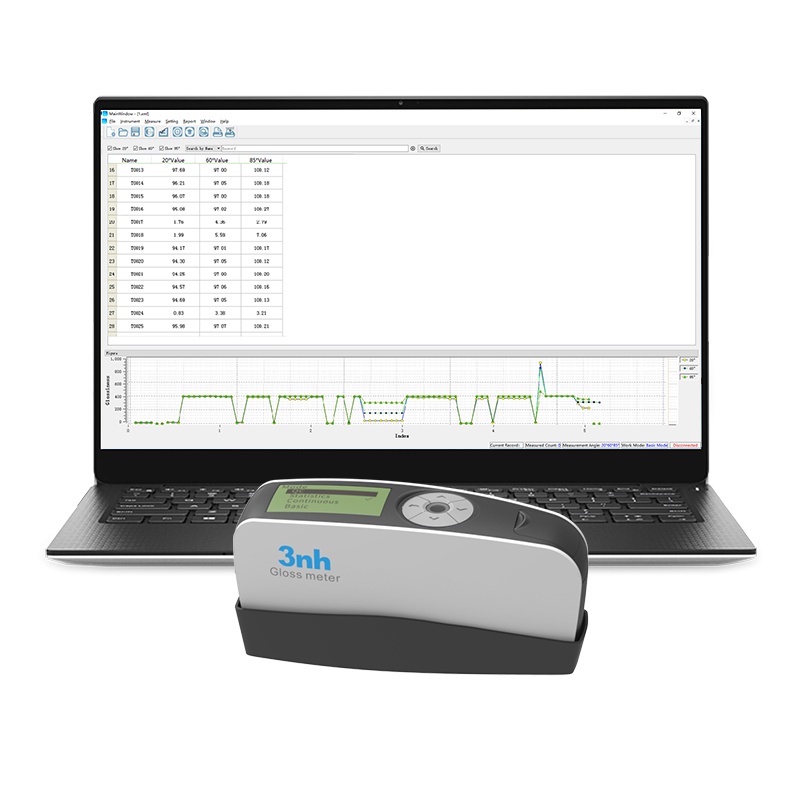

The instrument delivers results in just 0.5 seconds and supports four modes that can be switched with one touch: standard measurement, statistics, continuous monitoring, and quality control, enabling a single device to handle diverse application scenarios. It comes standard with GQC6 quality management software, supporting one-click data export for easy quality traceability, meeting the needs of both laboratory and on-site testing.

1. Precision & Efficiency - Save Time and Effort

Fast Measurement: 0.5 seconds per reading, reducing wait time during batch inspections.

High Repeatability: ±0.2 GU (0-100 GU); ±0.2% GU (100-1000 GU), minimizing re-measurement frequency and improving quality inspection efficiency.

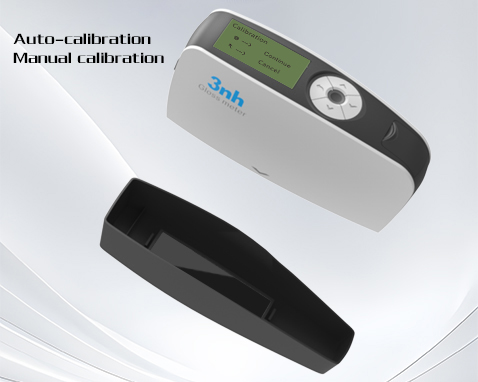

Dual Calibration & Compliance: Features automatic calibration check with a standard plate plus manual calibration, ensuring accurate measurement data and compliance with JJG 696-2015.

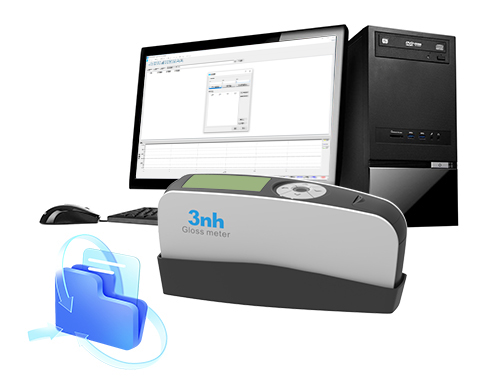

2. Data Management - Convenient & Hassle-Free

35,000-Record Storage: Massive data capacity with mode-specific storage, eliminating frequent backup needs and solving data storage limitations.

Software + USB Connectivity: GQC6 software supports data export and report printing, eliminating manual data organization and enabling easy quality traceability and data sharing.

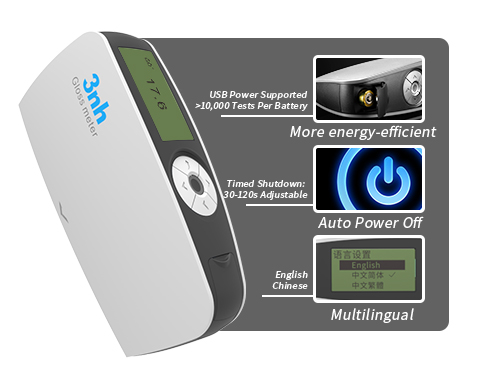

3. Battery Life & Operation - Low-Cost Adaptability

Dual Power Supply Long Battery Life: Powered by one AA battery for up to 10,000 measurements, plus USB power supply, reducing battery replacement frequency and costs while preventing power interruptions during measurement.

Adjustable Auto Shutdown: Selectable auto shutdown from 30 to 120 seconds, extending battery life and further reducing operating costs.

Multi-Language Support: Simplified Chinese, English, and Traditional Chinese, requiring no additional training and accommodating different team preferences.

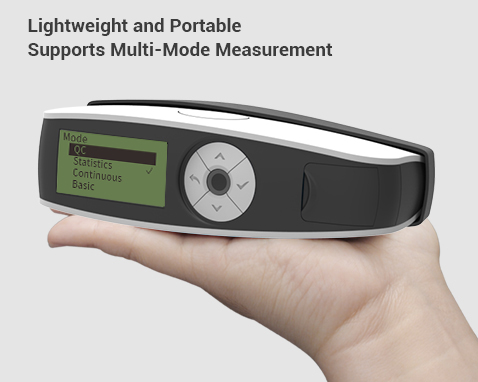

4. Portable & Practical - Adaptable to Multiple Scenarios

Lightweight Design: Compact dimensions of 160×52×84 mm and weight of 300 g, easy to carry and reducing transport effort.

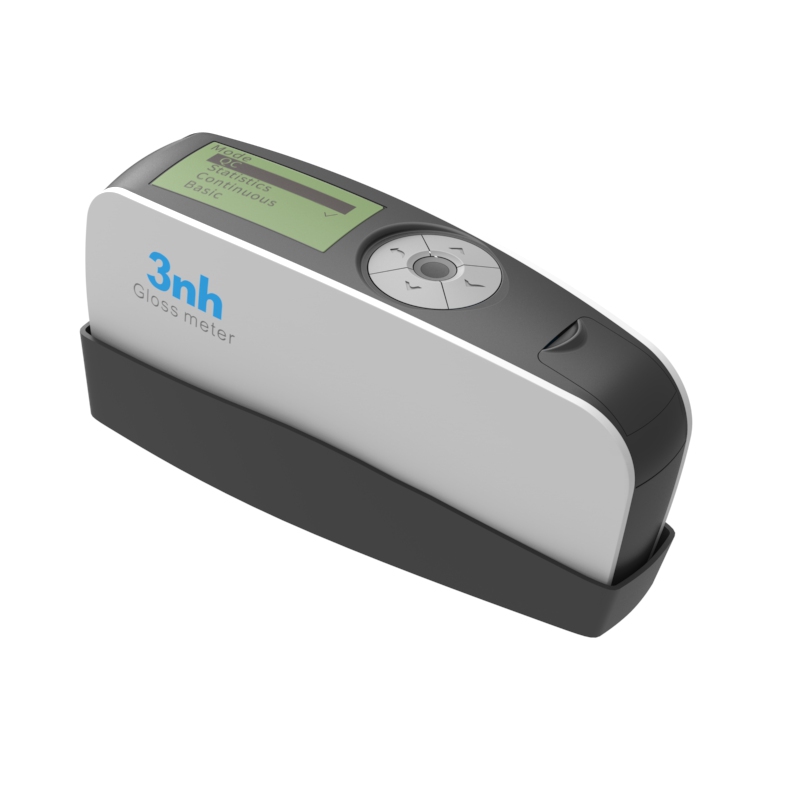

One-Key Mode Switching: Four measurement modes—Basic Mode, Statistics Mode, Continuous Mode, and Quality Management Mode—to suit different quality inspection scenarios.

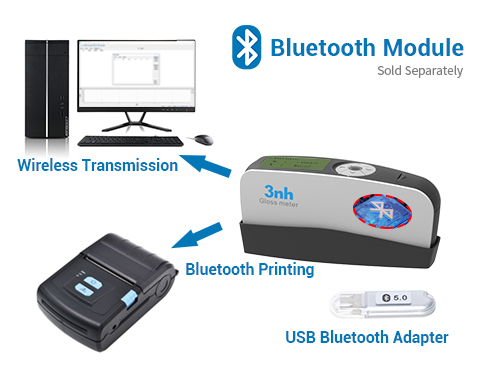

5. Optional Accessories - Flexible Expansion

Expansion Support: Optional micro-printer and Bluetooth 5.0 adapter enable on-site instant report printing and wireless data transmission.

Technical Specification

KS Glossmeter Technical Specifications
Product Model	KS60 Glossmeter
Measurement Angle	60°
Measurement Spot (mm)	60°:9X15
Measurement Range	60°:0~1000GU
Resolution	0.1GU
Features	Suitable for gloss measurement and gloss data transfer in industries such as paints, inks, coatings, paper printing, plastics and electronics, furniture, ceramics, electroplating, hardware, marble, etc.
Measurement Modes	Basic mode, statistical mode, continuous mode, quality control mode
Measurement Time	0.5 seconds
Repeatability	0~100GU:±0.2GU ; 100~1000GU:±0.2%GU
Accuracy	Meets the requirements of JJG 696 for working glossmeters
Auto Shutdown Time	30~120 seconds, adjustable
Long-Term Calibration	Features automatic verification of calibration standard plate function / manual calibration
Language	Simplified Chinese, English, Traditional Chinese
Data Storage	35,000 records (15,000 in basic mode and continuous mode, 10,000 in quality control mode, 10,000 in statistical mode)
Display	2.3-inch monochrome display
Dimensions	160 X 52 X 84mm
Weight	Approx. 300 g (including calibration case and battery)
Power Supply	Powered by 1 AA battery (alkaline or Ni-MH rechargeable), capable of over 10,000 measurements; or via USB port
Interface	USB
PC Software	GQC6 quality management software, inspection report printing, extended functionality
Operating Temperature Range	0~40℃（32~104°F）
Storage Temperature Range	-20~50℃（-4~122°F）
Humidity	Less than 85% RH, non-condensing
Standard Accessories	USB cable, instruction manual, GQC6 quality management software (available for download from official website or provided upon request), calibration plate
Optional Accessories	Micro printer, Bluetooth 5.0 adapter
Note	Technical parameters are for reference only, subject to the actual product sold.
