KS60S Glossmeter

A measurement is completed in just 0.5 seconds, making it suitable for batch production quality control, capturing subtle gloss differences, and ensuring stable appearance quality....

Gloss meters

Brands:

Type: KS60S

Description Additional information

Description

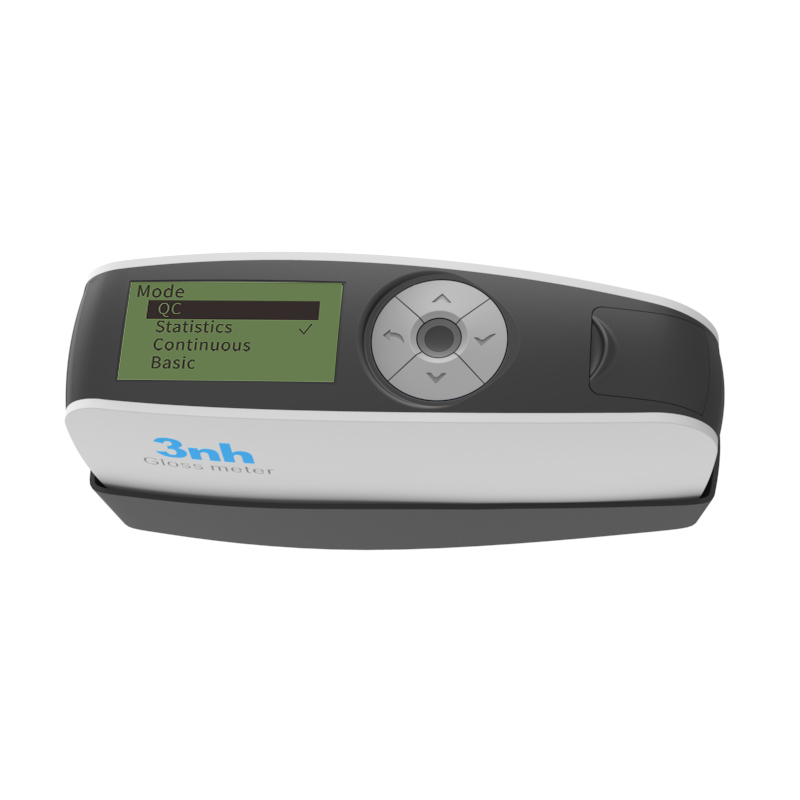

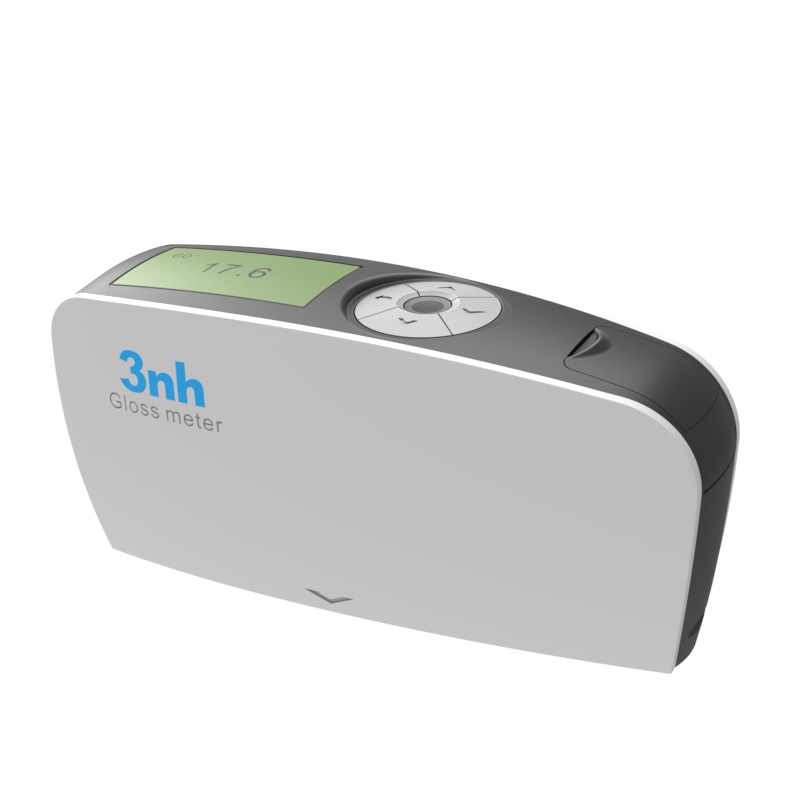

3NH KS60S Glossmeter A portable gloss quality inspection tool designed for paints, inks, coatings, paper printing, and more. It effectively solves the core pain points in gloss measurement: low efficiency, poor accuracy, and limited adaptability. It is battery powered, offering up to 100,000 measurements on a single charge. Equipped with a 60° measurement angle (spot size: 9×15 mm), it features a wide range of 0-200 GU and a fine resolution of 0.1 GU. A measurement is completed in just 0.5 seconds, making it suitable for batch production quality control, capturing subtle gloss differences, and ensuring stable appearance quality. It complies with the JJG 696-2015 standard.

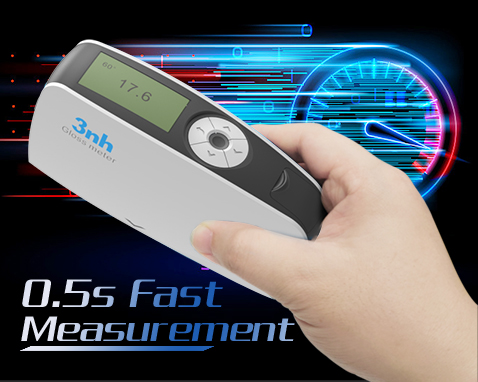

1、Efficient Testing - Save Time and Boost Efficiency

Fast measurement:completes a test in just 0.5 seconds, reducing inspection time for batch testing and significantly improving quality inspection efficiency.

Clear display: 2.3-inch monochrome screen provides intuitive data at a glance, eliminating the need for repeated checks.

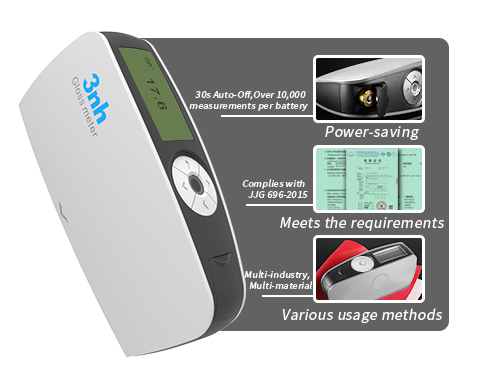

2、Cost-Effective - Strictly Control Costs

Ultra-long battery life: powered by one AA battery, offering up to 100,000 measurements on a single charge, reducing battery procurement and replacement costs.

Smart power saving: automatic shutdown after 30 seconds to prevent battery waste and extend battery life.

Universal power supply: USB interface design eliminates the need for a dedicated adapter, lowering accessory costs.

Authoritative compliance: meets JJG 696-2015 glossmeter requirements for more accurate data.

Multi-purpose use: compatible with inspections across multiple industries and materials, saving the cost of purchasing and storing multiple dedicated instruments.

3、Convenient and Easy to Use - Flexible Adaptability

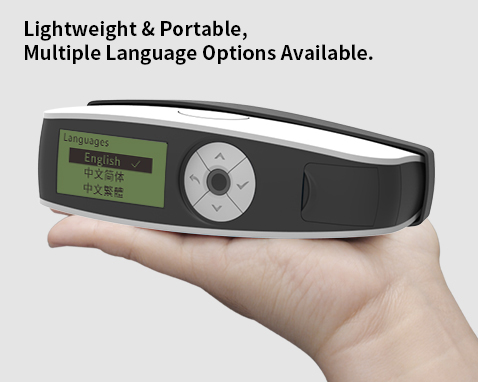

Lightweight and portable:300g body with compact dimensions of 160×52×84mm, easy to carry for on-site quality inspections anytime, anywhere.

Multi-language support: switch between Simplified Chinese, English, and Traditional Chinese to accommodate different operators and enable quick team onboarding.

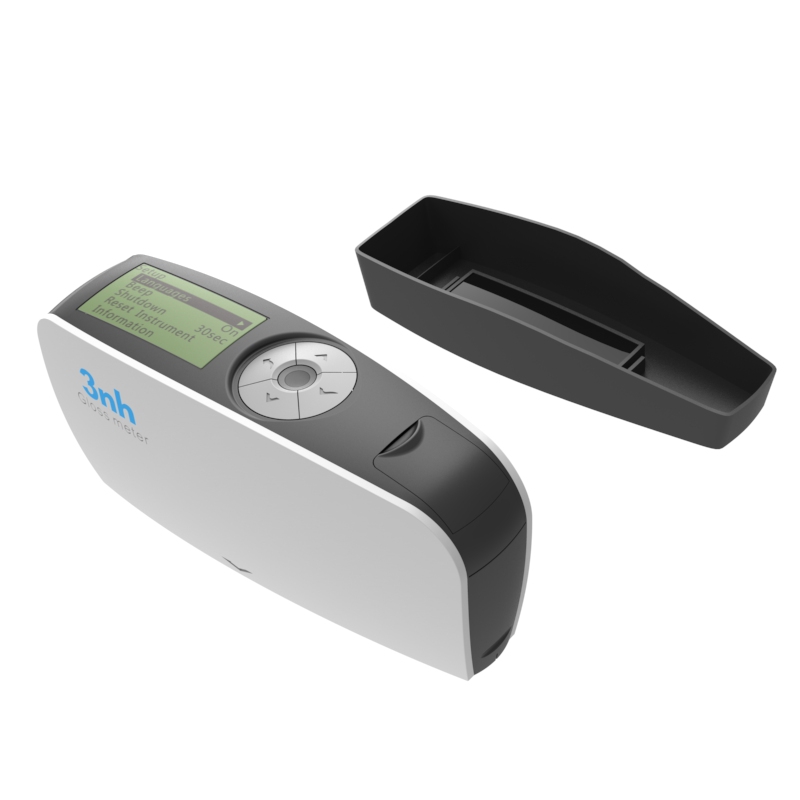

Self-calibration:comes with a standard calibration plate and manual calibration design, making operation simple and easy. Quickly calibrate the instrument before each test to ensure accurate instrument status.

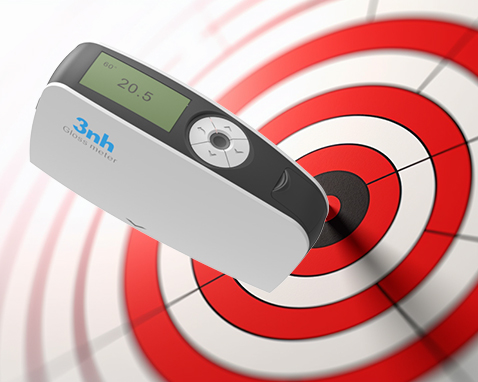

4、Accurate and Reliable - Ensuring Quality

High repeatability:precision of ±0.5 GU in the 0-100 GU range and ±0.5% GU in the 100-200 GU range, reducing measurement errors and avoiding losses from rework and returns.

Wide range and high resolution: 0-200 GU measuring range with a fine resolution of 0.1 GU, meeting high-precision inspection requirements across various applications.

Technical Specification

KS Glossmeter Technical Specifications
Product Model	KS60S Glossmeter
Measurement Angle	60°
Measurement Spot(mm)	60°:9X15
Measurement Range	60°:0~200GU
Resolution	0.1GU
Features	Suitable for gloss measurement and gloss data transfer in industries such as paints, inks, coatings, paper printing, plastics and electronics, furniture, ceramics, electroplating, hardware, marble, etc.
Measurement Modes	Basic mode
Measurement Time	0.5 seconds
Repeatability	0~100GU:±0.5GU ; 100~200GU:±0.5%GU
Accuracy	Meets the requirements of JJG 696 for working glossmeters
Auto Shutdown Time	30s
Long-Term Calibration	Long-Term Calibration Manual calibration
Language	Simplified Chinese, English, Traditional Chinese
Data Storage	/
Display	2.3-inch monochrome display
Dimensions	160 X 52 X 84mm
Weight	Approx. 300 g (including calibration case and battery)
Power Supply	Powered by 1 AA battery (alkaline or Ni-MH rechargeable), capable of over 10,000 measurements; or via USB port
Interface	USB
PC Software	/
Operating Temperature Range	0~40℃（32~104°F）
Storage Temperature Range	-20~50℃（-4~122°F）
Humidity	Less than 85% RH, non-condensing
Standard Accessories	instruction manual, calibration plate
Optional Accessories	Micro printer, Bluetooth 5.0 adapter
Note	Technical parameters are for reference only, subject to the actual product sold.
