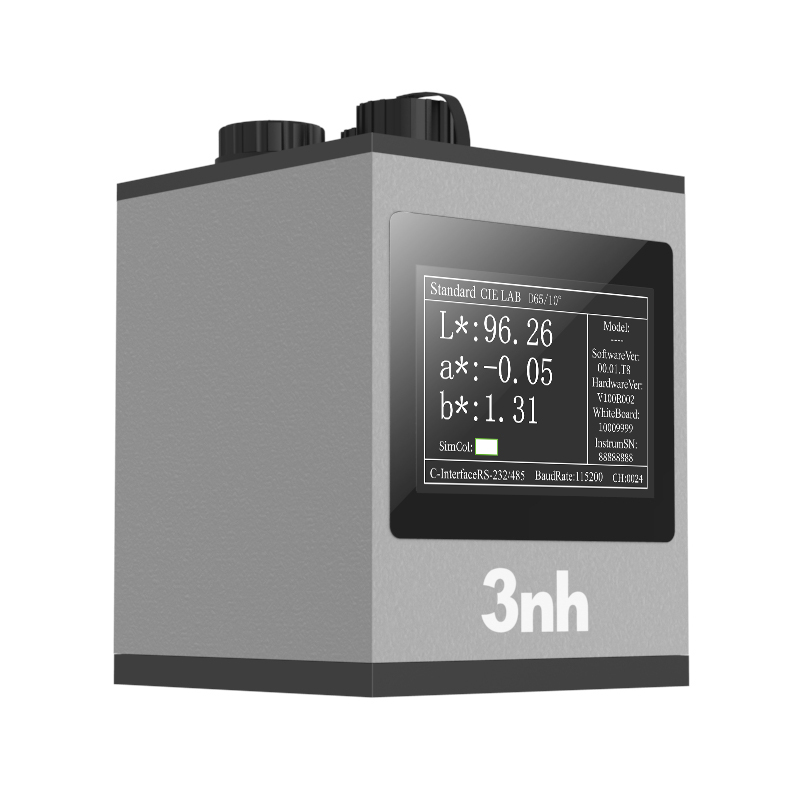

YL70 series 45/0 Non-Contact Spectrophotometer

It can monitor color data in real - time and synchronously transmit it back, providing efficient quality control solutions for multiple industries....

Non-contact Spectrophotometers

Brands:

Type: YL70

Description Additional information

Description

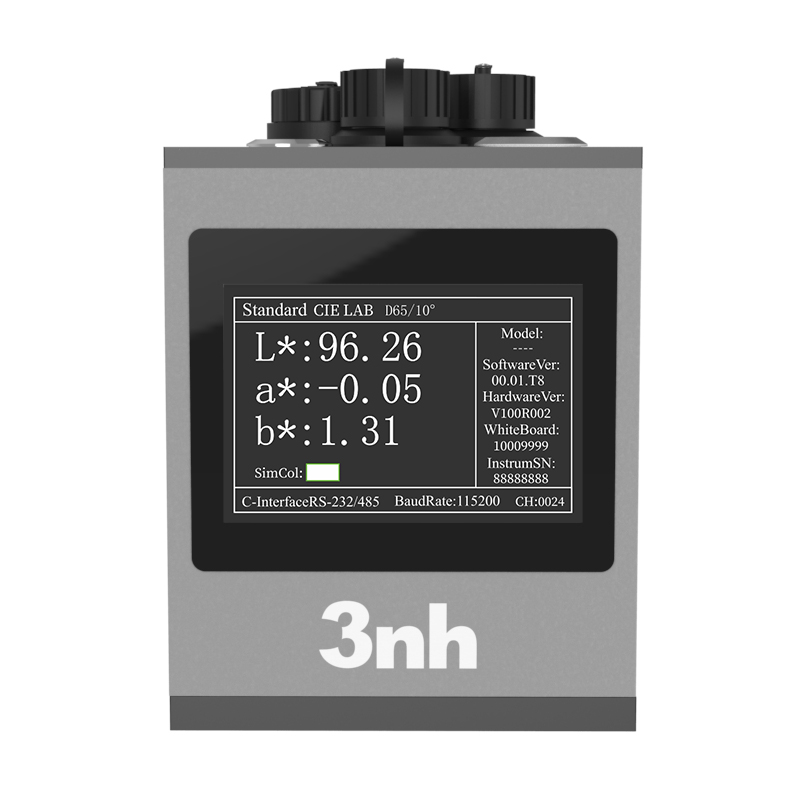

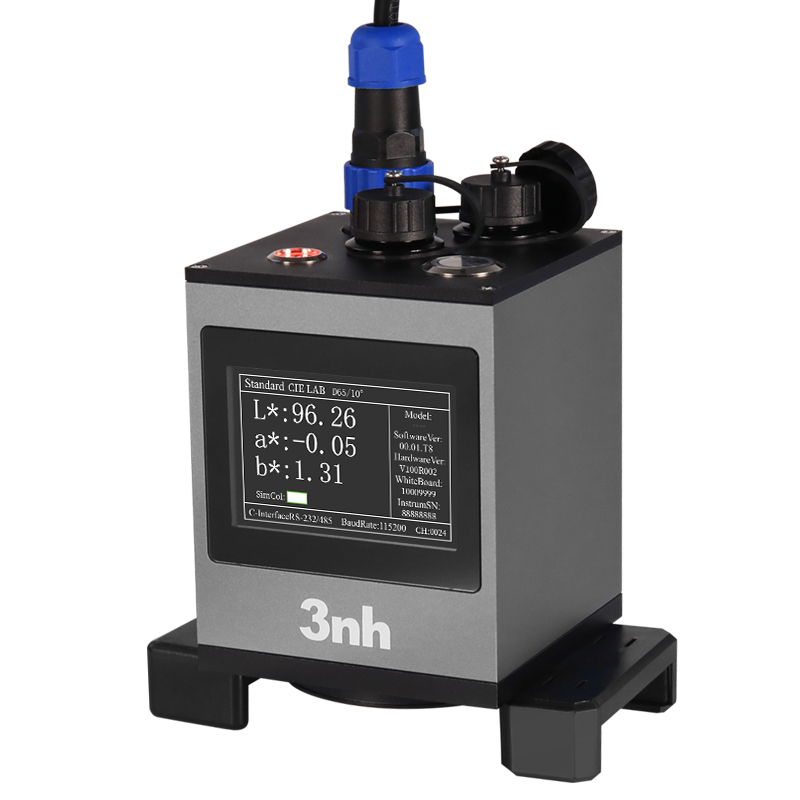

3nh YL70 Non-contact Spectrophotometer adopts the 45/0 optical structure. It can precisely measure special samples such as liquids and powders in a non - contact way. It is specifically designed for accurate color measurement in automated production lines. It supports 485 or USB communication and multi - device collaboration. Paired with the host computer software, it is suitable for integrated installation on assembly lines and robotic arms. It can monitor color data in real - time and synchronously transmit it back, providing efficient quality control solutions for multiple industries.

1. Non-contact precision color measurement

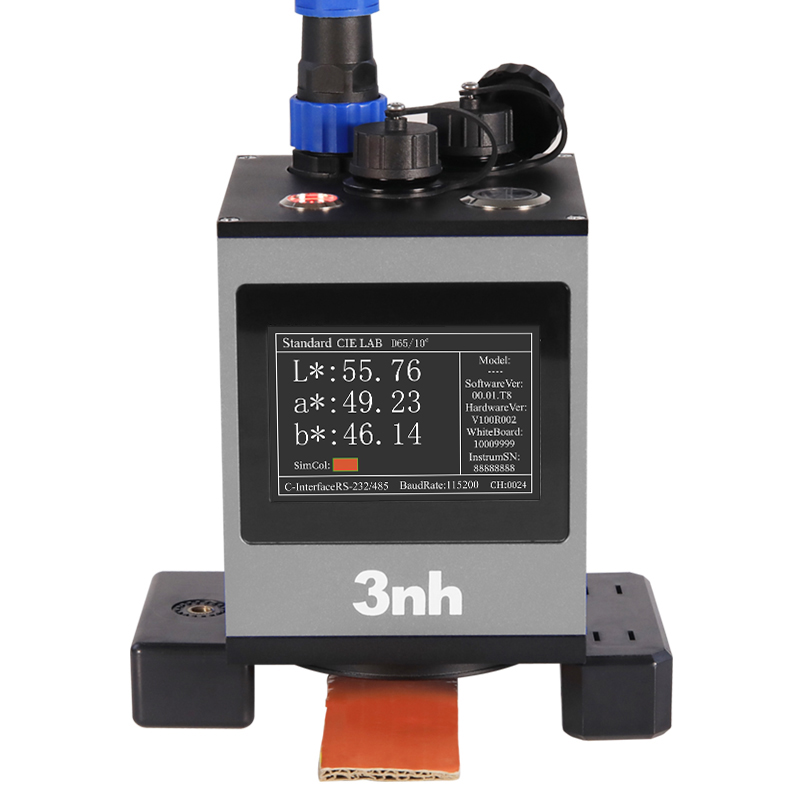

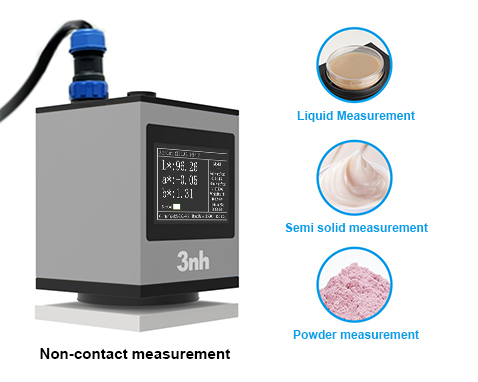

Non-contact measurement: solve the difficult problem of detecting special samples such as liquid, powder and scratch-prone surface, and realize pollution-free and damage-free color measurement. 7.5mm±0.15mm accurate ranging, no sample thickness limit, suitable for automatic production line diversified online detection.

2. High-speed and high-precision double breakthrough

With the high-performance hardware configuration of nano-integrated spectrum device and silicon photodiode array (20 groups in two rows), the equipment achieves a double breakthrough in measurement speed and accuracy.

Ultra-fast response, high-speed production: the fastest measurement is 0.11 seconds (conventional 0.2 seconds), and the measurement interval is only 1 second, which meets the requirements of high-speed production line.

Repeatability of chromaticity value: it can reach ΔE*ab≤0.05, and the display accuracy is 0.01, which meets the first-class measurement standard and ensures long-term accuracy.

High-speed and high-precision double breakthrough

3. Rich interfaces and easy integration

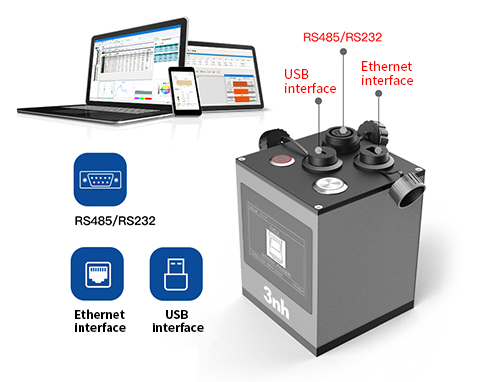

Rich interfaces to achieve collaborative control: equipped with USB, RS485, RS232, Ethernet and other rich interfaces, while supporting external triggering and analog signal output. It can easily realize real-time data interoperability and collaborative control with the production line control system, and help to build an automatic detection closed loop.

PC software data management: The supporting PC software further expands the data processing capability, supports data management, trend analysis, qualification judgment and historical tracing, helps enterprises to build a digital quality management system, and improves data utilization value and management efficiency.

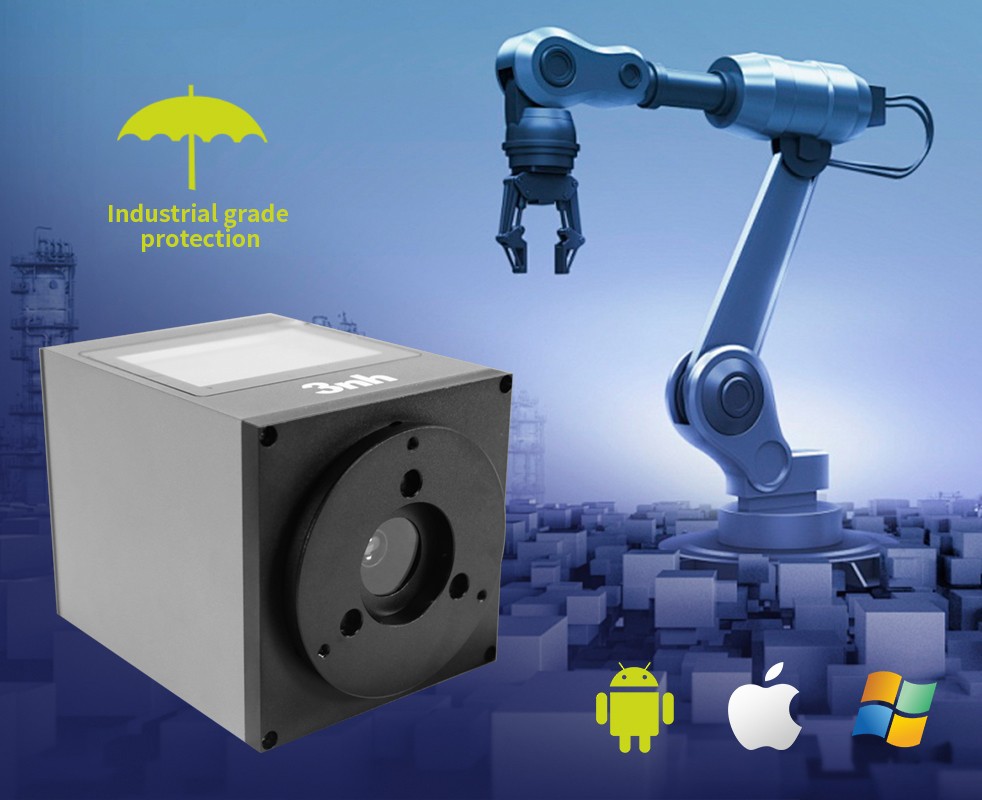

4. Industrial reliability and ease of use

Environmental adaptability: wide temperature design (such as -20~50℃) and IP66 waterproof and dustproof industrial protection ensure long-term stable operation in industrial environment.

Rapid deployment: Modular design is compatible with mechanical arm and pipeline integration, supports one-button calibration and remote firmware upgrade, and reduces maintenance costs.

5. Application Area

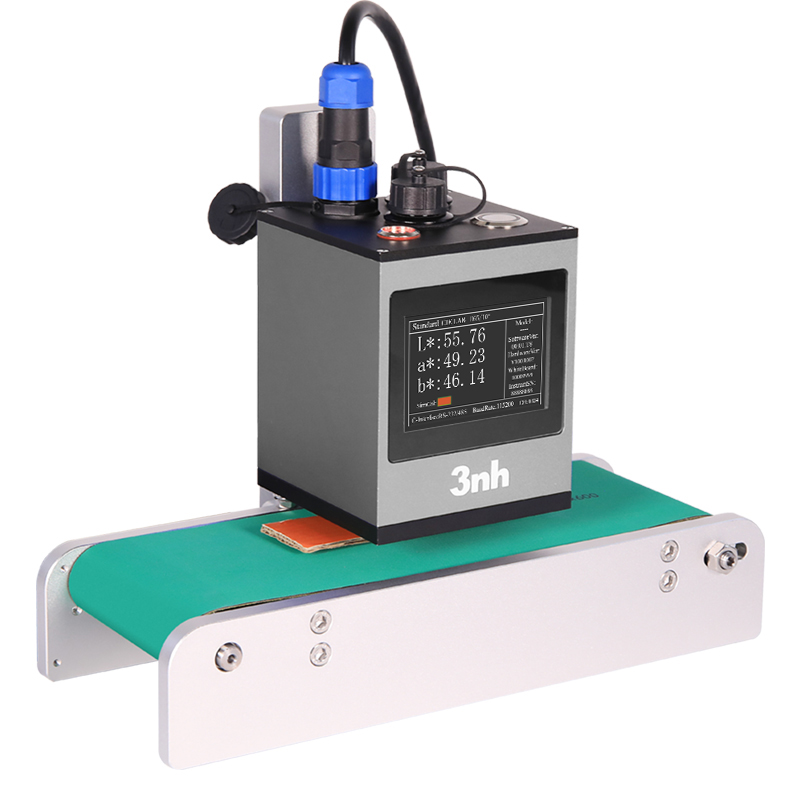

It can be applied to the automatic production line requirements of food and beverage, cosmetics, printing, anodizing, coating, papermaking, automobile spraying line, textile production line, plastic production line and other industries, and can be directly installed on the assembly line or mechanical arm.

Real-time monitoring of product color, synchronous transmission of data, providing immediate feedback for product quality.

Technical Specification

Product Parameter

YL70 series 45/0 Non-Contact Spectrophotometer
Product Model	YL70
Optical Geometry	45/0(45 circular uniform illumination 0 reception); Meet the standards of CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO 7724-1, ASTM E 1164, DIN 5033 TEIL 7.
Features	The non-contact test between the test probe and the sample to be tested realizes the non-contact precise color measurement of liquid, paste, powder and fragile surface. It is mainly used in accurate color measurement and quality control of automatic production line; The measurement time can be as fast as 0.11 seconds. It can communicate with other systems through 485 or USB, and is equipped with upper computer software.
Light Source	Full spectrum LED light source
Splitting Mode	Nano-integrated spectral device
Sensor	Silicon photodiode array (20 groups in two rows)
Wavelength Range	400~700nm, 10nm output
Display Accuracy	0.01
Reflectivity Resolution	0.01%
Reflectance Range	0~200%
Measuring Aperture	Φ8mm
Non-contact Distance	7.5mm(±0.15mm)
Sample Height	The thickness is not limited, and only the test probe is used.
Measurement and Observation Mode	Visual
Measuring Time Interval	1S
Measurement Mode	Instrument trigger or online control trigger
Color Space	CIE LAB,XYZ,LCh,CIE LUV
Color Difference Formula	ΔE*ab
Other Chromaticity Indexes	/
Observer Angle	2°/10°
Illuminants	A,C,D50,D65,D75
Displayed data	Data, sample chromaticity value, color difference value/graph, color simulation, qualified/unqualified results, display tolerance can be set.
Measuring Time	The fastest time is 0.11 seconds (about 0.2 seconds)
Calibrate	Intelligent automatic calibration
Waterproof Grade	IP66
Repeatability	In the optimal test mode (when the single measurement time is 1.0 seconds): Chromaticity value: within ΔE*ab 0.05 (after preheating, measure the average value of the whiteboard for 30 times at intervals of 5s).
Inter-station Difference	/
Accuracy Assurance	Ensure that the first-level measurement is qualified
Measurement Method	Single measurement, average measurement (2~99 times)
Dimension	100100140mm
Weight	About 1400g
Power Supply	DC 24V,3A power adapter supplies power.
Illuminant Life Span	More than 3 million measurements in 5 years
Display	TFT true color 3.5inch
Interface	USB, RS485, RS232, Ethernet, external trigger, analog signal output.
Language	Simplified Chinese, traditional Chinese, English
Operating Environment	0~40℃, 0~85%RH (no condensation), altitude: below 2000m m
Storage Environment	-20~50℃, 0~85%RH (no condensation)
Standard Accessory	Power adapter, manual, USB cable, RJ45 network cable, RS485 multi-computer communication cable, RS232 communication cable, standard calibration board and black calibration box.
Note:	It is subject to change without prior notice.
