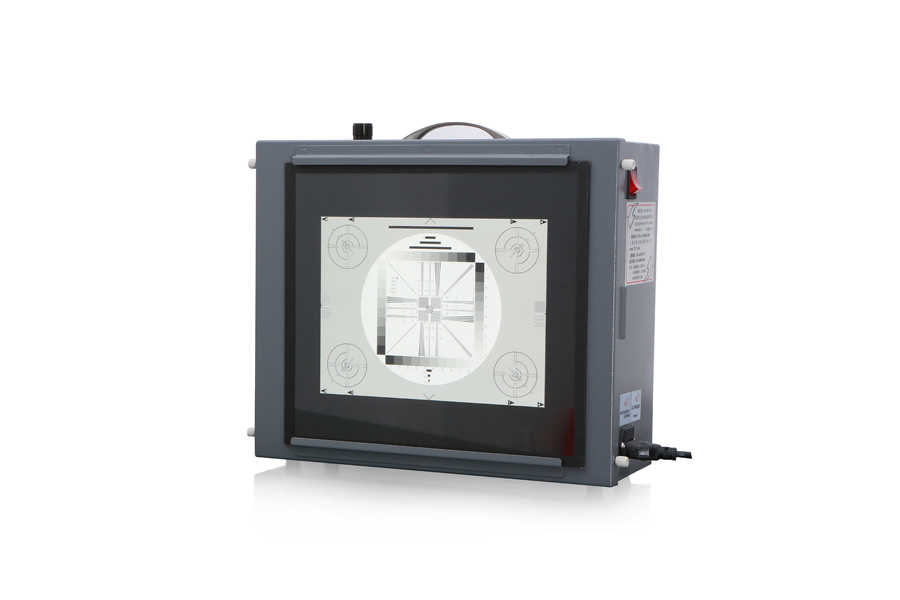

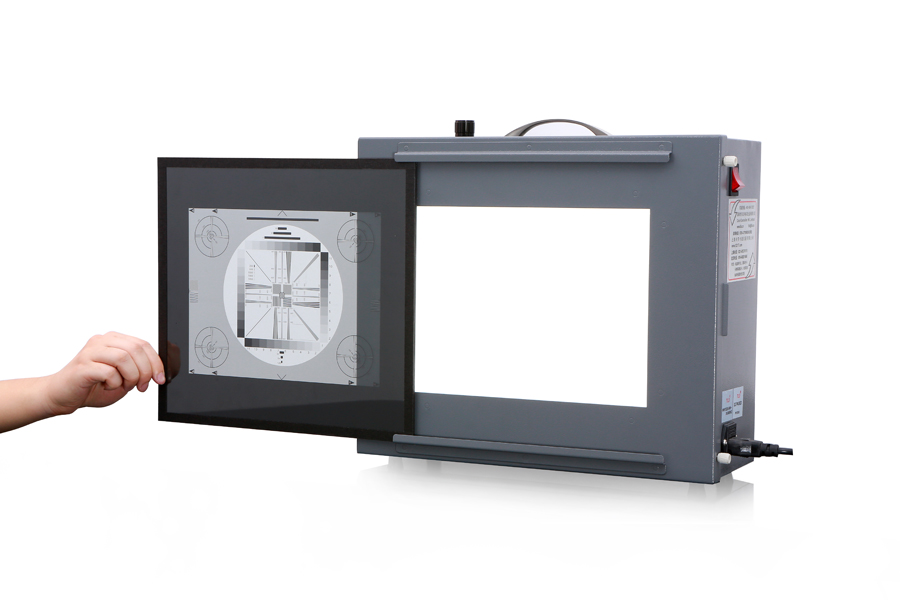

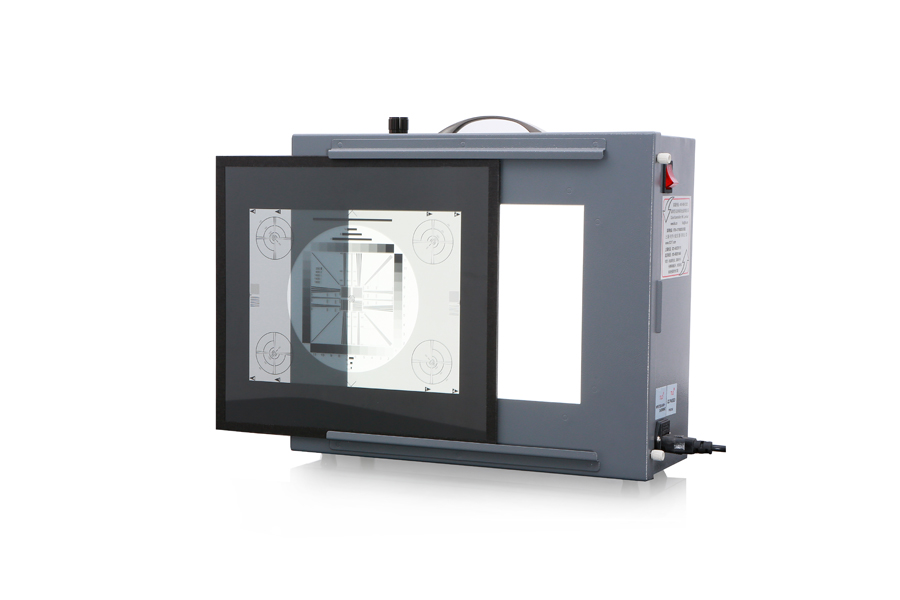

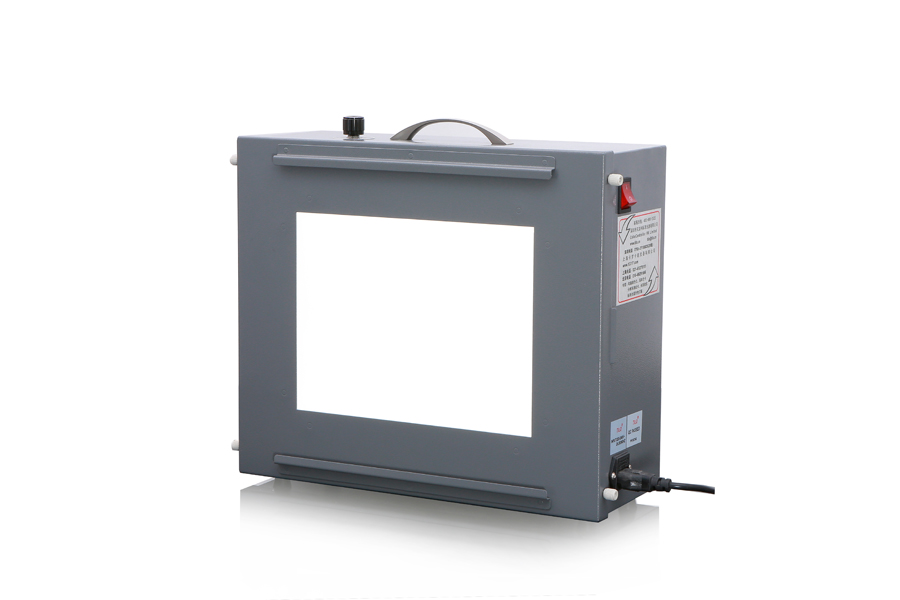

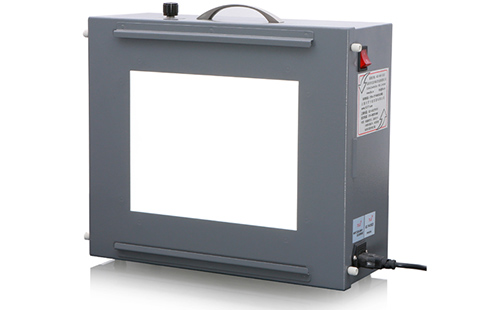

Color Viewer/Transmission light box CC5100/CC3100

3nh Standard color viewer for camera test is to provide special lighting environment with high illumination uniformity light continuous adjustable etc functions. Specification Model CC5100/CC3100 Light source: 5100K(5100K200k) *43100K(3...

Standard Light Sources

Brands: 3nh

Type: CC5100/CC3100

Description Additional information

Description

3nh Standard color viewer for camera test is to provide special lighting environment, with high illumination uniformity, light continuous adjustable, etc functions.

Specification

Model	CC5100/CC3100
Light source:	5100K(5100K±200k) 4,3100K(3100K±200k) 4
Uniformity:	>95%
Luminous Source:	100 ~ 4400cd/m2 adjustable
Illuminance:	250 ~ 10000Lux adjustable
Power supply:	AC230V 50/60HZ
Lighting method:	High Frequency lighting method 20KHz
Operating temperature:	10～40℃
Operating humidity:	Below 80%(avoid dew)
Major diameter dimension:	38.5W34H15Dcm
Luminance plane dimension:	25W*19Hcm
