Model |

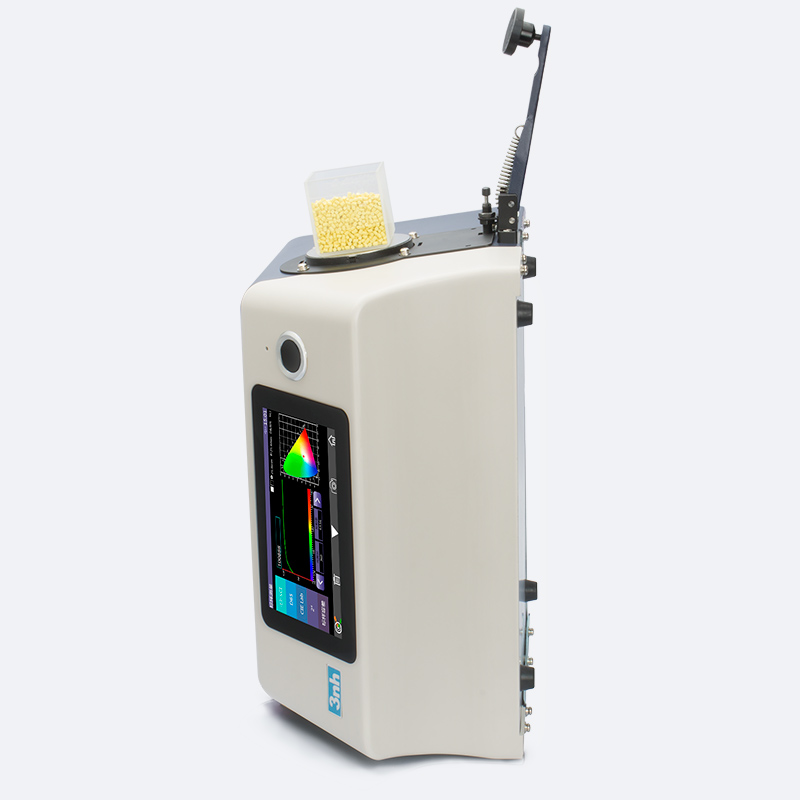

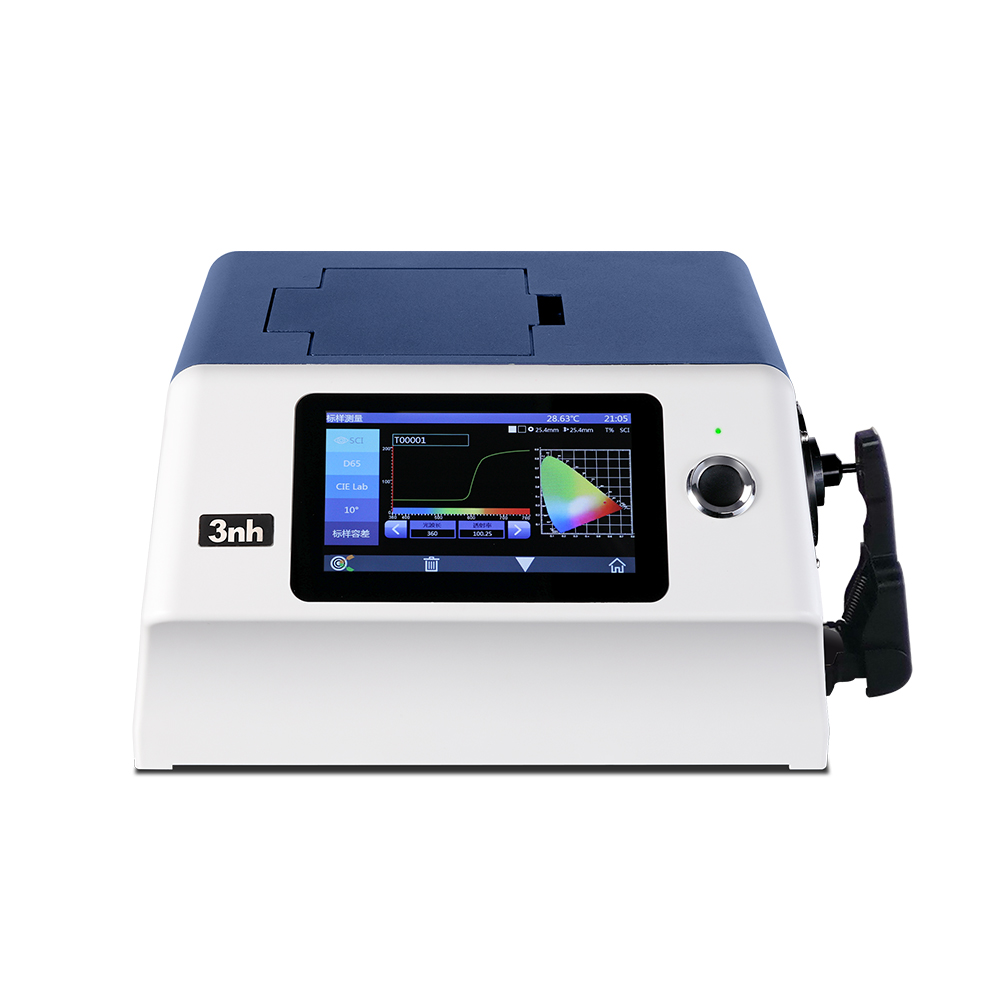

YS6060 Benchtop Spectrophotometer |
|
Optical Geometry |
Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle) ;
SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source
Transmittance: di:0°, de:0° (diffuse illumination: 0° viewing) ;
SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source;
Haze(ASTM D1003),
Conforms to CIE No.15，GB/T 3978,GB 2893,GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7 |
|
Application |
It is used for accurate analysis and transmission of laboratory color. Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control. |
|
Integrating Sphere Size |
Φ154mm |
|
Light Source |
360 nm to 780 nm, Combined LED Light, 400nm cut-off light source,420nmCut-off light source |
|
Spectrophotometric Mode |
Concave Grating |
|
Sensor |
256 Image Element Double Array CMOS Image Sensor |
|
Wavelength Range |
360-780nm |
|
Wavelength Interval |
10nm |
|
Semiband Width |
5nm |
|
Measured Reflectance Range |
0-200% |
|
Measuring Aperture |
Reflective : Φ30mm/Φ25.4mm, Φ18mm/Φ15mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm;
Transmissive : Φ30mm/Φ25mm;
Remark: 1. Automatic identification of switch caliber 2. Customized Configuration caliber and lens position |
|
Specular Component |
Reflectance: SCI&SCE / Transmittance: SCI&SCE |
|
Color Space |
CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99 |
|
Color Difference Formula |
ΔE * ab ,ΔE * uv ,ΔE * 94 ,ΔE * cmc(2:1) ,ΔE * cmc(1:1) ,ΔE * 00 , DINΔE 99 ,ΔE (Hunter), |
|
Other Colorimetric Index |
WI (ASTM E313, CIE/ISO, AATCC, Hunter),
YI (ASTM D1925, ASTM 313),
TI (ASTM E313, CIE/ISO),
MI (Metamerism Index),APHA/Hazen/Pt-Co
Staining Fastness, Color Fastness, Color Strength, Opacity,
8° Glossiness,Gardner Index, Saybolt, 555 Index, Haze(ASTM D1003) |
|
Observer Angle |
2°/10° |
|
Illuminant |
D65,A,C,D50,D55,D75, F1,F2,F3,F4,F5,F6, F7,F8,F9,F10,F11,F12, CWF,DLF,TL83,TL84,TPL5,U30
|
|
Displayed Data |
Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset |
|
Measuring Time |
About 2.4s (Measure SCI & SCE about 5s) |
|
Repeatability |
Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.04% (400 nm to 700 nm: within 0.04%)
Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.01 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.05% (400 nm to 700 nm: within 0.04%)
Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
|
Inter-instrument Error |
Φ25.4mm/SCI, Within ΔE*ab 0.12 |
|
|
(Average for 12 BCRA Series II color tiles) |
|
Dimension |
L*W*H=370x300x200mm |
|
Weight |
Approx. 9.6kg |
|
Power |
AC 24V, 3A Power adapter power supply |
|
Illuminant Life Span |
5 years, more than 3 million times measurements |
|
Display |
7-inch TFT color LCD, Capacitive Touch Screen |
|
Data Port |
USB & Bluetooth & Print serial port |
|
Data Storage |
Standard 5000 Pcs, Sample 40000 Pcs |
|
Language |
Simplified Chinese, Traditional Chinese, English, (Optional Customized German, French and Spanish) |
|
Operating Environment |
0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
|
Storage Environment |
-20~50℃, 0~85%RH (no condensing) |
|
Standard Accessory |

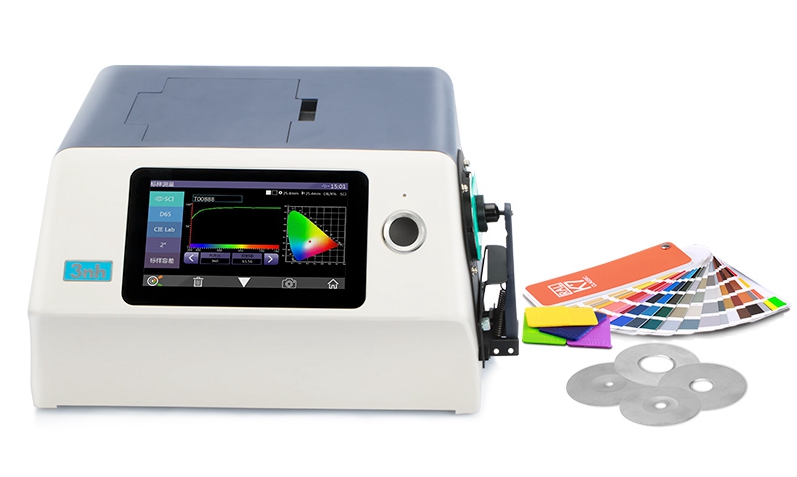

Power Adapter, User Guide, CD Disk(PC Software), USB cable, Standard Calibration Board, Black Calibration Cavity, Transmission black baffle, Sample holder, 25.4 caliber, 15 caliber, 8 caliber, 4 caliber,Transmissive Test Component |
|
Optional Accessory |
Micro-printer, Micro Aperture(4mm) transmission test clamp component, Instrument inversion components, culture dish |
|
Notes: |
The specifications are subject to change without notice. |
