Description

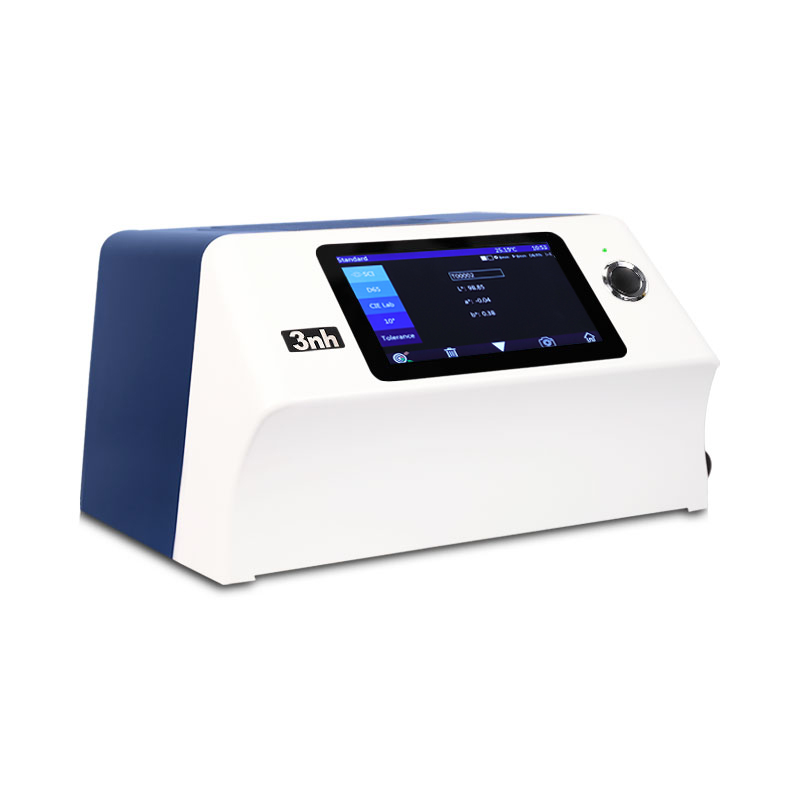

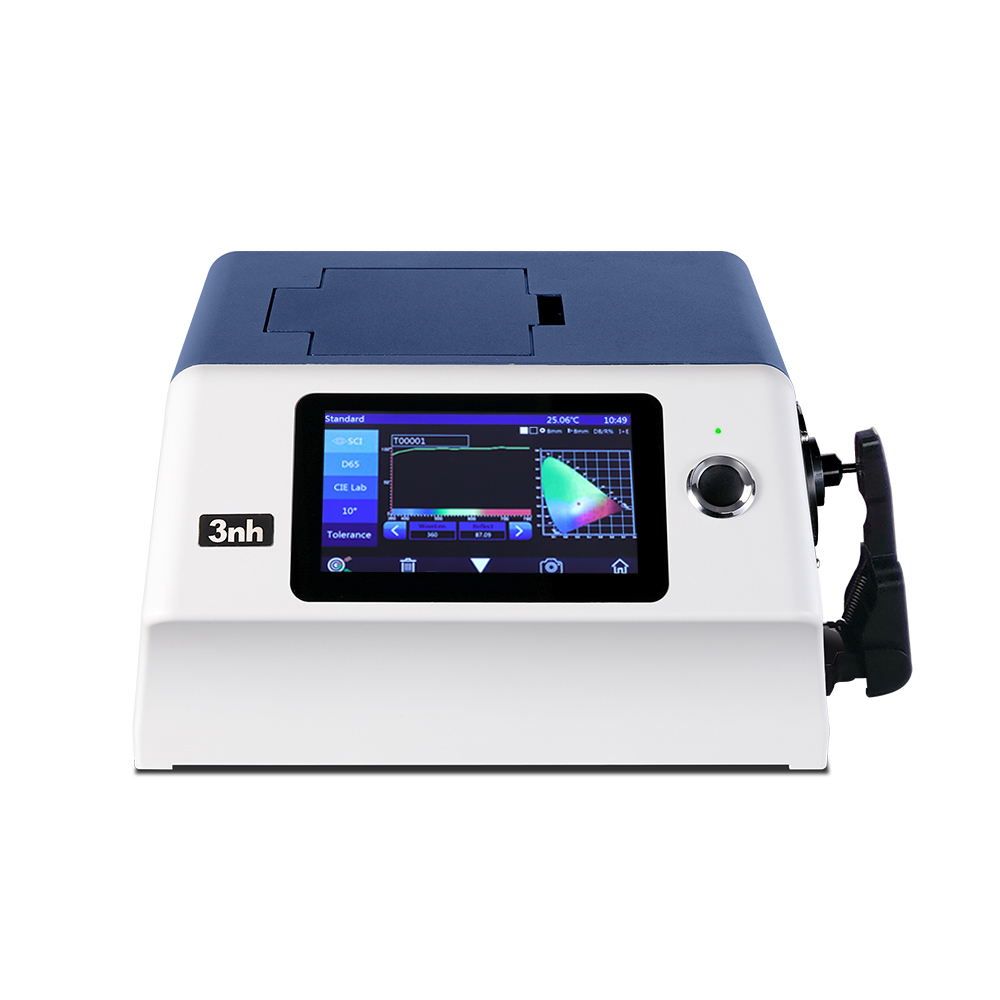

The benchtop spectrophotometer TS8296 is a spectrophotometer developed
by 3nh using its own core technology of spectroscopy. It uses dual-array
CMOS image sensors with higher sensitivity and wider spectral response
range, making the test more accurate. The repeatability ΔE*ab of the TS8296
benchtop spectrophotometer is easily controlled within 0.01, and the inter-instrument
agreement ΔE*ab is controlled within 0.12. The data is stable and reliable,
and can be used for accurate color analysis and transmission in the laboratory.

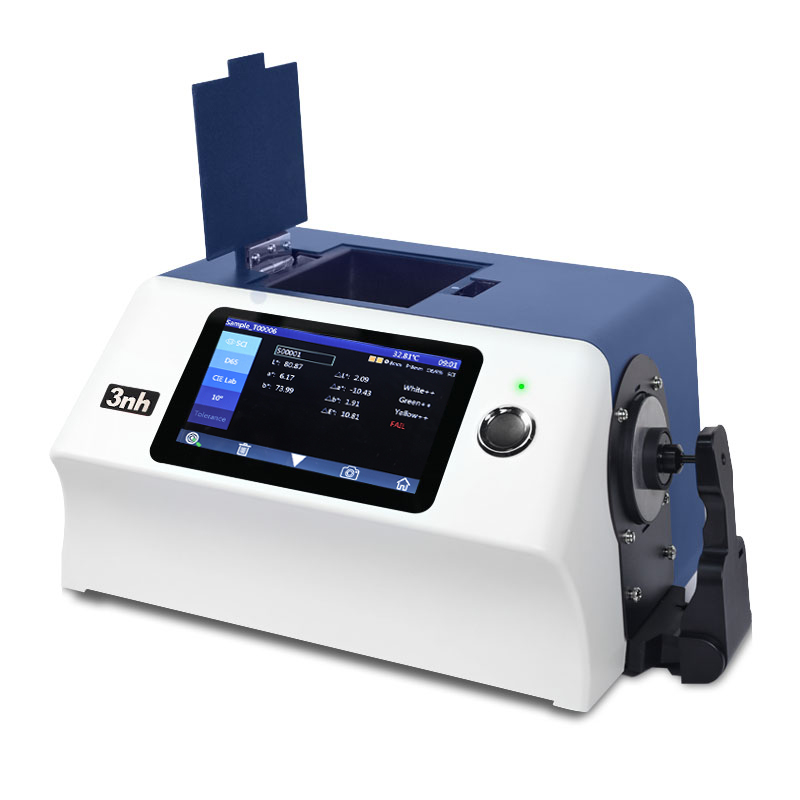

Application of TS8296 Benchtop Spectrophotometer
The TS8296 benchtop spectrophotometer is equipped with four measuring
apertures of 25.4mm, 15mm, 8mm, and 4mm, which is suitable for more samples
to be tested and meets the requirements of reflective samples and transparent
samples in plastic electronics, paint and ink, textile and garment printing
and dyeing, printing and other industries; it can be used for fluorescent
sample measurement.
Features of TS8296 Benchtop Spectrophotometer

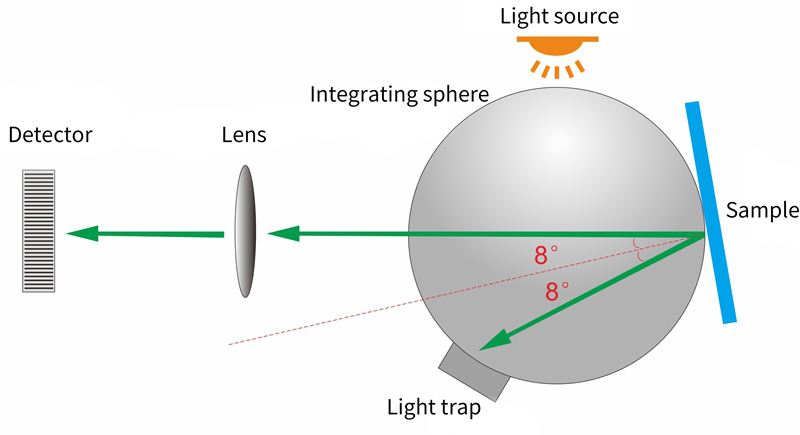

1. It adopts the internationally-used D/8 structure, compatible with SCI/SCE
measurement, and supports SCI+SCE rapid measurement at the same time
The TS8296 benchtop spectrophotometer adopts the internationally applicable
D/8 illumination observation conditions, SCI/SCE (including specular reflection/not
including specular reflection) synthesis technology, and supports SCI+SCE
simultaneous rapid measurement.

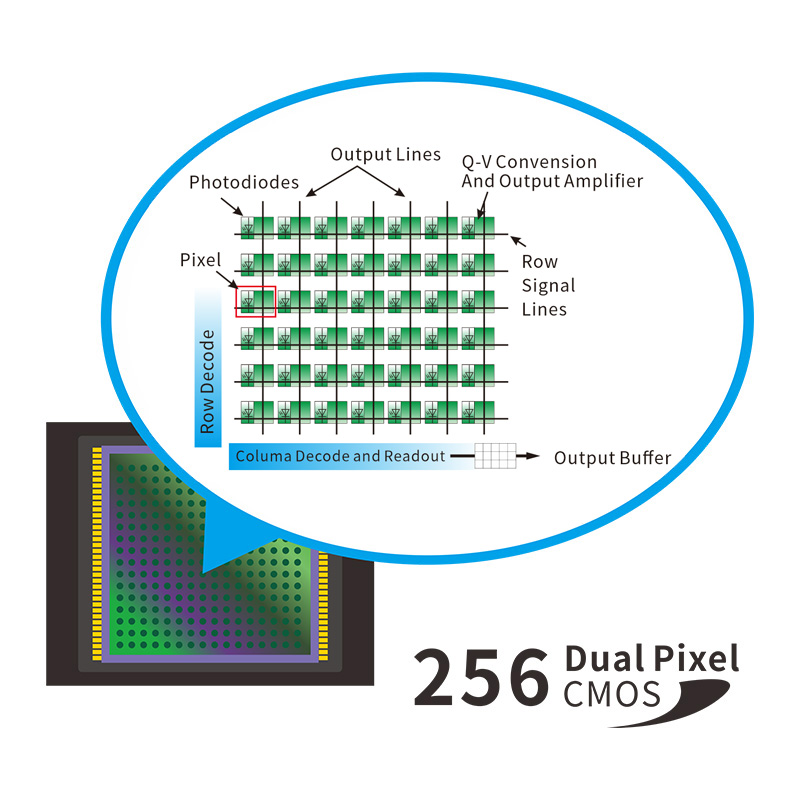

2. Dual array CMOS image sensor
With high sensitivity and wide spectral response range, it ensures the
measurement speed, accuracy, stability and consistency of the instrument.

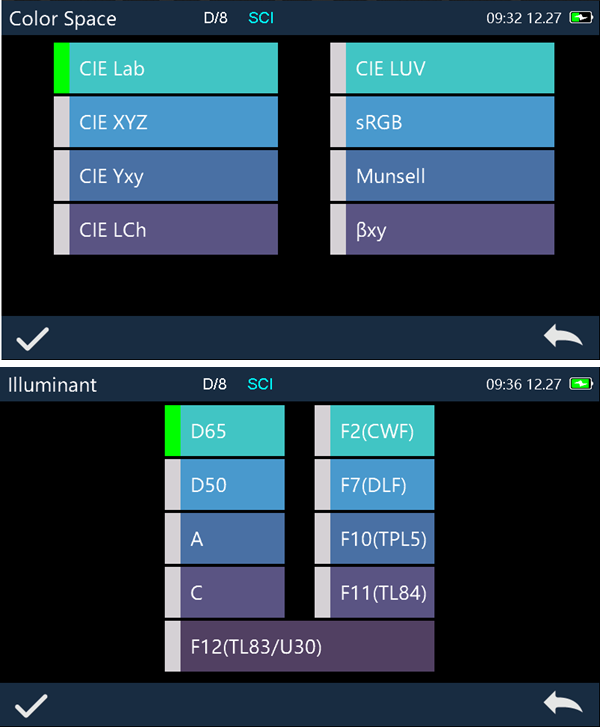

3. Multiple color measurement spaces, multiple observation light sources
TS8296 benchtop spectrophotometer provides CIE LAB, XYZ, Yxy, LCh, CIE
LUV, Musell, s-RGB, HunterLab, βxy, DIN Lab99 color space, as well as D65,
A, C, D50, D55, D75, F1, F2 , F3, F4, F5, F6, F7, F8, F9, F10, F11, F12,
CWF, DLF, TL83, TL84, TPL5, U30 multiple observation light sources, which
can meet the special measurement requirements under different measurement
conditions.

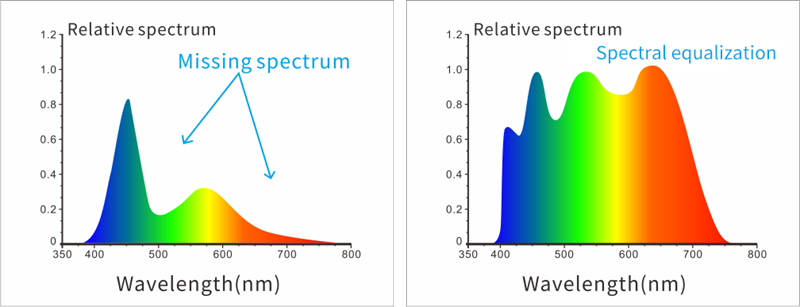

4. Adopt a combined full-spectrum LED light source and UV light source
The full-band balanced LED light source ensures sufficient spectral distribution
in the visible light range, avoids the lack of spectrum of white light
LEDs in specific wavelength bands, and ensures the measurement speed of
the instrument and the accuracy of the measurement results. Professional
UV light sources ensure UV testing more reliable.
5. Metrological verification report
Each TS8296 benchtop spectrophotometer has been verified and tested, and
the instrument is verified according to the measurement standards of the
authoritative verification department at the factory, and the measurement
data is traced to the National Institute of Metrology to ensure the authority
of the instrument test data.

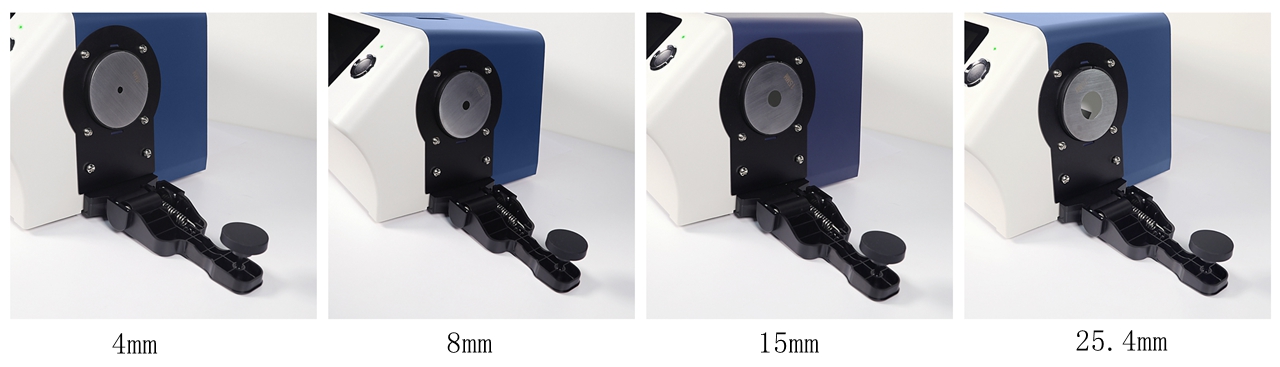

6. Automatic aperture recognition
The TS8296 benchtop spectrophotometer is equipped with four measuring
apertures of Φ25.4/15/8/4mm, which can be switched at will to meet the
special needs of customers.

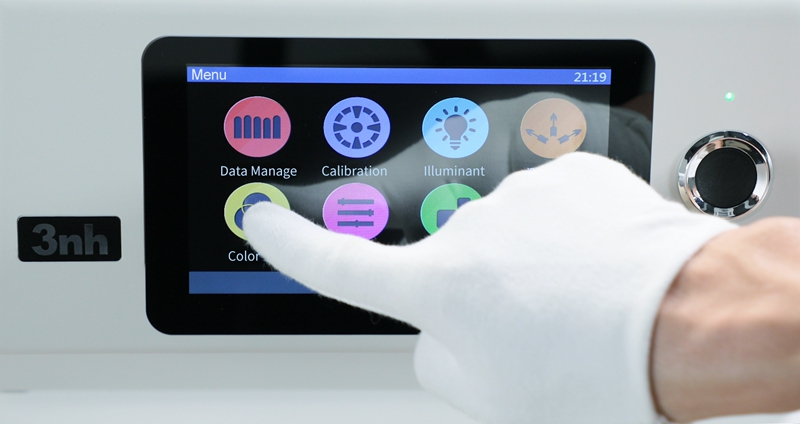

7. Industrial-grade high-definition touch screen, easy-to-use user interface
Using a 7-inch industrial-grade high-definition touch screen, the control
is smooth, and the easy-to-use user interface makes the operation comfortable,
convenient and easier to use.

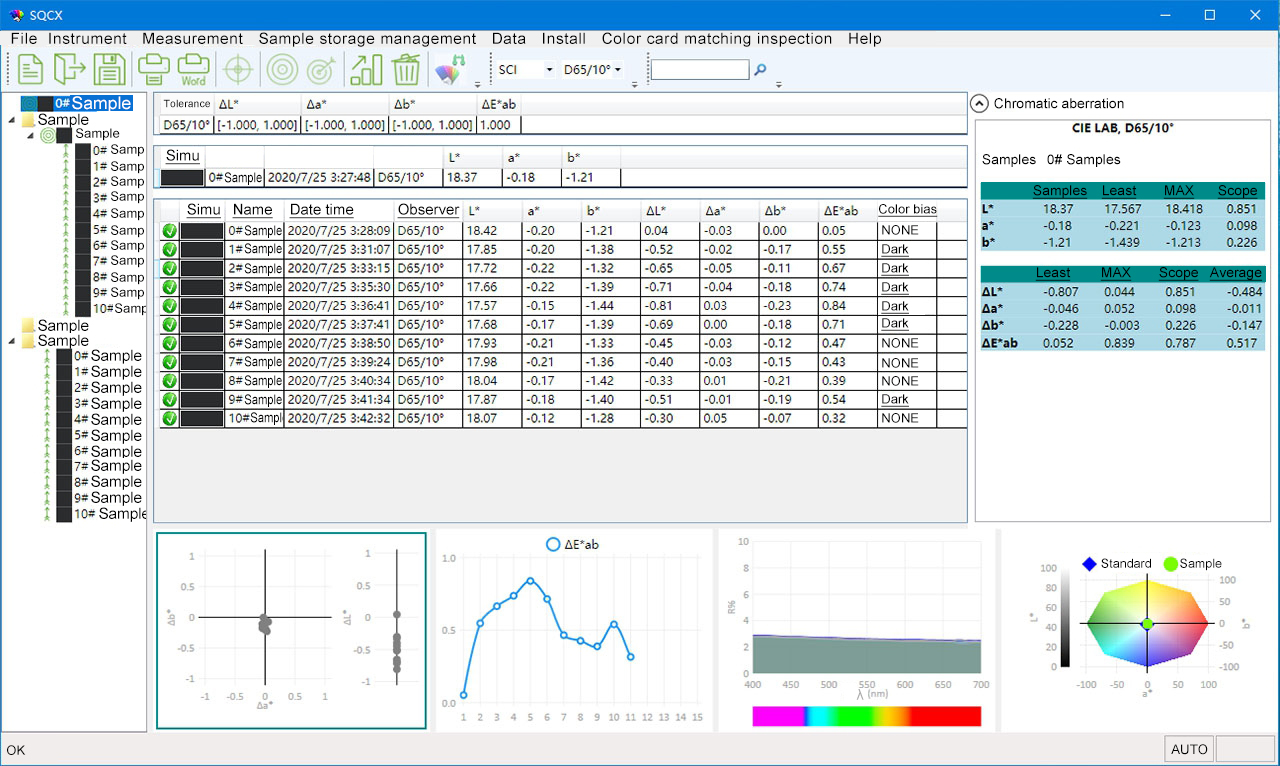

8. Color management software
The SQCX quality management software matched with the TS8296 benchtop
spectrophotometer is suitable for quality monitoring and color data management
in various industries. Data the user's color management, compare color
differences, generate test reports, provide a variety of color space measurement
data, and customize customer color management.
Technical Parameters of TS8296 Benchtop Spectrophotometer
|
Model |
TS8296 |
|
Optical Geometry |
Reflect: di:8°, de:8°((diffuse illumination, 8°direction reception) ;
SCI (specular component included)/SCE (specular component excluded) ;Include
UV/exclud UV
Transmittance: di:0°, de:0° (diffuse illumination: 0°direction reception)
;
SCI (specular component included)/SCE (specular component excluded) ;
Include UV/exclud UV
Haze(ASTM D1003),
Conforms to CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033
Teil7 |
|
Application |
It is used for accurate analysis and transmission of laboratory color.
Used for color transfer and quality control of reflective samples and
transparent samples in plastic electronics, paint and ink, textile and
garment printing and dyeing, printing and other industries. |
|
Integrating Sphere Size |
Φ154mm |
|
Light Source |
360 nm to 780 nm, Combined LED Light, 400nm cut-off light source,420nm
cut-off light source |
|
Spectrophotometric Mode |
Concave Grating |
|
Sensor |
256 Image Element Double Array CMOS Image Sensor |
|
Wavelength Range |
360-780nm |
|
Wavelength Interval |
10nm |
|
Semiband Width |
10nm |
|
Measured Reflectance Range |
0-200% |
|
Measuring Aperture |
Reflective : Φ30mm/Φ25.4mm, Φ18mm/Φ15mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm;
Transmissive : Φ25.4mm, Φ4mm
Remark:
1. Automatic identification of switch aperture
2.Customers can configure the aperture and lens position according to
their needs |
|
Specular Component |
Reflectance: SCI/SCE, Transmittance: SCI&SCE |
|
Color Space |
CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99 |
|
Color Difference Formula |
ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter) |
|
Other Colorimetric Index |
WI (ASTM E313, CIE/ISO, AATCC, Hunter),
YI (ASTM D1925, ASTM 313),
Metamerism index Mt,
Staining Fastness, Color Fastness, Color Strength, Opacity,
APHA/Hazen/Pt-Co (Platinum Cobalt Index), Gardner Index
8° gloss, 555 color classification, haze (ASTM D1003), Saybolt (Sybert
index), ASTM D1500 color scale, Chinese Pharmacopoeia color scale |
|
Observer Angle |
2°/10° |
|
Illuminant |
D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30 |
|
Displayed Data |
Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph,
PASS/FAIL Result, Color Offset |
|
Measuring Time |
About 2.4s (Measure SCI & SCE about 5s) |
|
Repeatability |
Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.04%
Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.01 (After
the instrument is warmed up and calibrated, measure the average value of
the whiteboard 30 times at an interval of 5s)
Spectral transmittance: Φ25.4mm/SCI, Standard deviation within 0.05%
Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.02(After
the instrument is warmed up and calibrated, measure the average value of
the whiteboard 30 times at an interval of 5s) |
|
Inter-instrument Error |
Φ25.4mm/SCI, Within ΔE*ab 0.12(Measured average value of 12 tiles of BCRA
series Ⅱ) |
|
Dimension |
L*W*H=370x300x200mm |
|
Weight |
Approx. 9.6kg |
|
Power |
AC 24V, 3A Power adapter power supply |
|
Illuminant Life Span |
5 years, more than 3 million times measurements |
|
Display |
7-inch TFT color LCD, Capacitive Touch Screen |
|
Data Port |
USB, Bluetooth®5.0, print serial port |
|
Data Storage |
Standard 5000 Pcs, Sample 40000 Pcs(SCI/SCE counts as one piece of data) |
|
Language |
Simplified Chinese, Traditional Chinese, English, (German, French, Spanish
can be customized) |
|
Operating Environment |
0~40℃（32~104°F） |
|
Storage Environment |
-20~50℃（-4~122°F） |
|
Standard Accessory |
Power adapter, manual, quality management software (download from official
website), data cable, standard calibration board, black calibration box,
transmission black baffle, sample holder, 25.4mm aperture, 15mm aperture,
8mm aperture, 4mm aperture, transmission test fixture assembly , Micro-hole
(4mm) transmission test fixture assembly |
|
Optional Accessory |
Mini printer, instrument upside down test fixture, petri dish |
|
Notes |
The specifications are subject to change without notice. |
