Multi-angle spectrophotometer KS003

With an inter-instrument agreement as low as 0.2 ΔE*00, it effectively detects color inconsistencies during production, helping to prevent unnecessary rework....

Multi-angle spectrophotometer

Brands:

Type: KS003

Description Additional information

Description

Designed specifically for evaluating the appearance of effect finishes, the 3NH KS003 precisely captures color variations at multiple angles. It delivers accurate and consistent measurements for solid colors, metallic finishes, and other special effect coatings, making it an ideal quality control solution for industries such as automotive and plastics.

Powered by an industrial-grade MCU and equipped with three measurement angles, the KS003 ensures high precision and stability on both flat and curved surfaces. With an inter-instrument agreement as low as 0.2 ΔE*00, it effectively detects color inconsistencies during production, helping to prevent unnecessary rework.

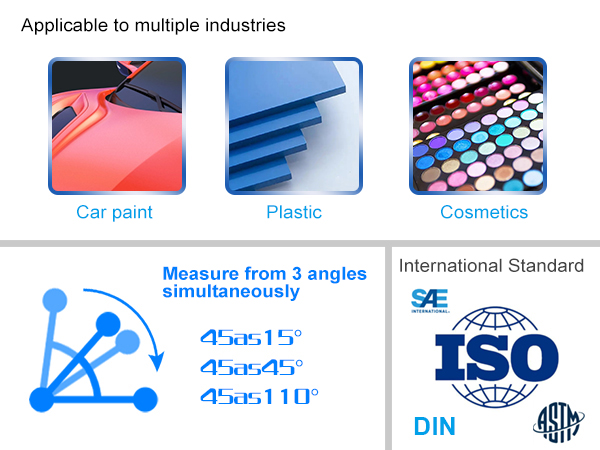

1. 3-Angle Simultaneous Measurement - Precisely captures special effect colors.

Synchronous 3-Angle Measurement： Employs a 1-receiver, 3-light-source design to simultaneously measure three angles (45°as15°, 45°as45°, 45°as110°). Eliminates the need for multiple adjustments, boosting measurement efficiency by 3x.

Comprehensive Surface Coverage： Accurately evaluates appearance variations across all types of effect finishes, including automotive paints, plastic components, and cosmetic packaging.

Globally Accepted Standards： Compliant with 12 international standards, including ASTM D2244, DIN 5033, and ISO 7724, ensuring universally valid measurement results.

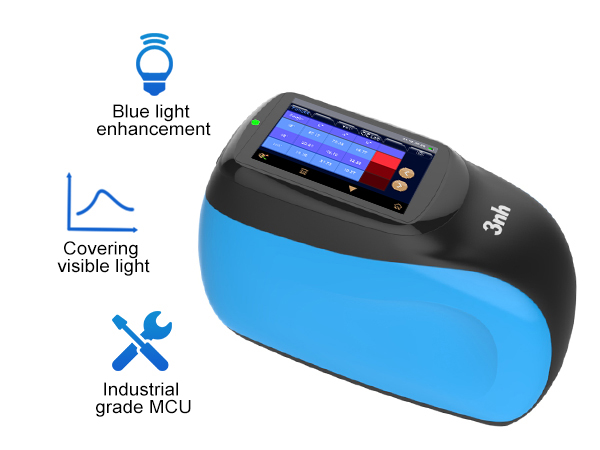

2. 10-Year Light Source Life - Industry benchmark for reliability.

Extended Durability： Blue-enhanced, full-spectrum LED source lasts for 10 years or 5 million measurements, more than triple the lifespan of standard light sources.

Spectral Integrity： Covers the full visible range (400nm-700nm) with no missing bands, enhancing measurement accuracy for metallic and pearlescent colors.

Low Maintenance ： Eliminates frequent source replacements, reducing annual maintenance costs. Ideal for 24/7 continuous factory operations.

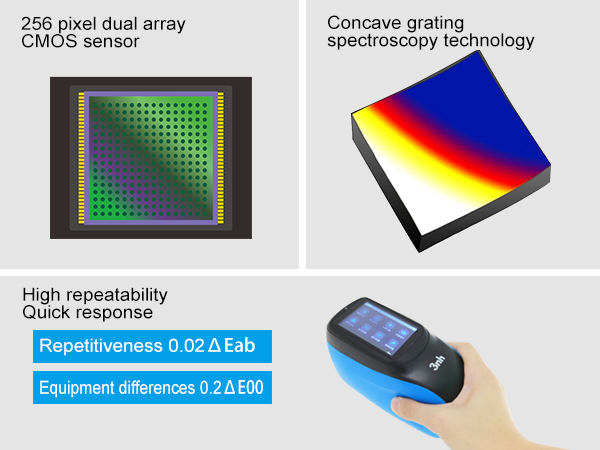

3. Concave Grating Spectroscopy + CMOS Technology - High-Precision Measurement

Core Hardware Configuration： 256-pixel dual-array CMOS detector combined with concave grating spectroscopic technology delivers higher resolution for precise color measurement.

High Repeatability： Chromaticity value repeatability of 0.02 ΔEab and inter-instrument agreement of 0.2 ΔE00 ensure seamless data comparison across different factories or devices.

Fast Response： Measures a single angle in just 1 second and completes full three-angle measurement in 3 seconds, offering enhanced efficiency over traditional instruments.

Concave Grating Spectroscopy + CMOS Technology

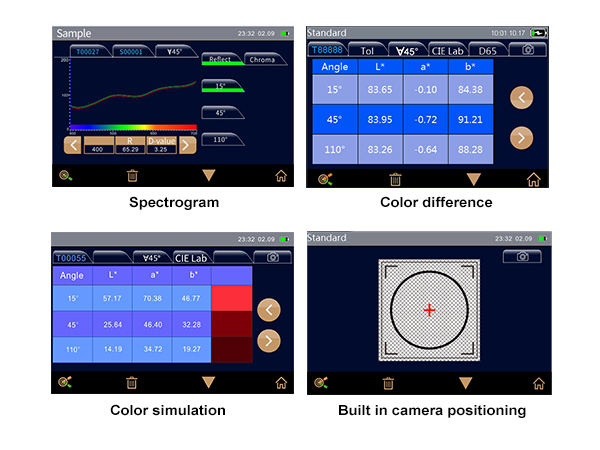

4. Full-Dimension Visualized Data - Zero Learning Curve

Intuitive Display： 3.5-inch true-color touchscreen directly shows spectral graphs, color difference values, pass/fail judgments, and color simulations.

Smart Positioning： Built-in color camera preview accurately locates the measurement area, preventing errors caused by misalignment.

Flexible Operation： Supports button and software dual triggers, with single, continuous, and average (1-99 times) measurement modes for diverse application needs.

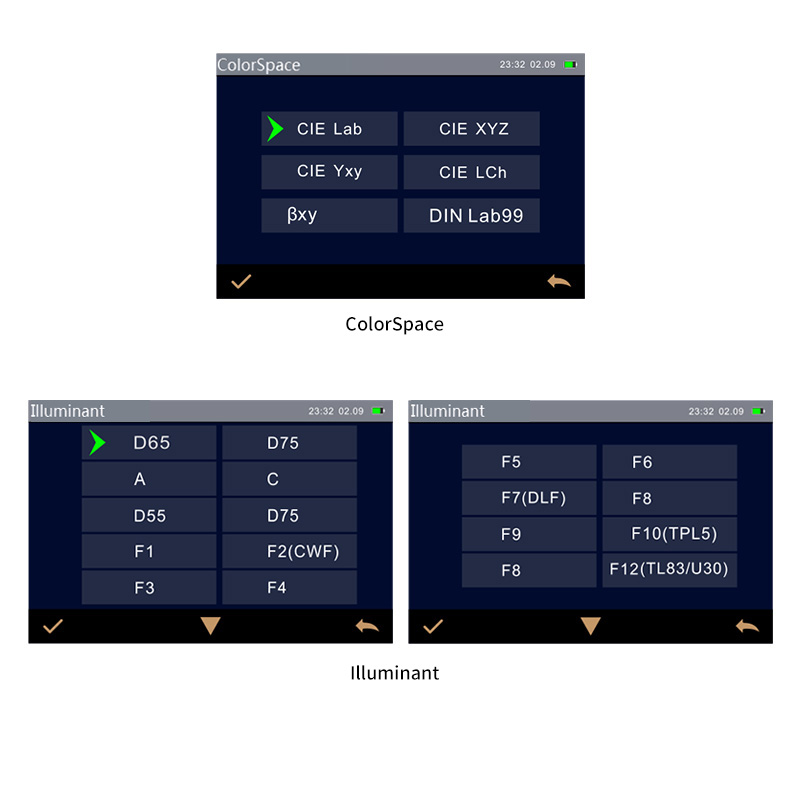

5. Comprehensive Color Compatibility - Tailored for Diverse Industries

Multiple Color Spaces： Supports 8 color spaces, including CIE LAB, XYZ, LCh, and Hunter Lab, meeting industry standards for automotive, plastic, and cosmetic applications.

Wide Range of Color Difference Formulas： Features mainstream formulas such as ΔEab, ΔE94, ΔE*cmc (2:1/1:1), ΔE*00, DIN ΔE99, ΔE DIN6175, various automotive brand-specific formulas, ΔE(Hunter), ΔEch, and ΔEuv.

Versatile Observation Conditions： Offers 30+ illuminants (D65, A, D50, etc.) and dual 2°/10° observer angles to meet testing requirements across different countries and regions.

6. Applications

Automotive Industry： Multi-angle color control for metallic body paints and pearlescent bumpers, ensuring color consistency across entire vehicles.

Cosmetics Industry: Batch-to-batch comparison of pearlescent effect colors (lipstick, eyeshadow, etc.), reducing customer complaints caused by visual discrepancies.

Plastics Industry: Measurement of special effect colors on appliance casings and toys, guaranteeing color uniformity across different manufacturing sites.

Technical Specification

Product Model	KS003
Measurement Geometry	3 Measurement Angles (3 Light Sources, 1 Receiver)
Color Measurement Angles	45°Receiver： 45as15°,45as45°,45as110° Compliant Standards: ASTM D 2244,E 308,E 1164,E 2194, E2539,DIN 5033,5036,6174,6175-1,6175-2;ISO 7724, 11664-4 SAE J 1545
Features	For solid colors, metallic finishes, pearlescent effects, and other complex special effect coatings, it delivers precise and consistent color measurement.
Illuminant	Blue-enhanced full-spectrum LED
Illuminant Lifespan	10 years / 5 million measurements
Spectral Method	Concave grating
Detector	256-pixel dual-array CMOS image sensor
Measurement Wavelength Range	400nm-700nm
Wavelength Interval	10nm
Measurement Range	0~600%
Bandwidth	10nm
Measurement Aperture	Illumination Φ23mm / Sampling 9×12mm (Customizable: Illumination Φ10mm / Sampling 6×8mm)
Color Spaces	CIE LAB,XYZ,Yxy,LCh,βxy,DIN Lab99,RGB,Hunter Lab
Color Difference Formulas	ΔEab,ΔE94,ΔEcmc(2:1) ,ΔEcmc(1:1),ΔE00, DINΔE99,ΔE DIN6175,Various Automotive Brand Color Difference Formulas ,ΔE(Hunter),ΔEch,ΔE*uv
Other Colorimetric Indicators	Flop Index / Metamerism Index
Observer Angles	2°/10°
Illuminant Types	D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4，F5，F6,F7(DLF),F8,F9，F10(TPL5),F11(TL84),F12(TL83/U30),B,U35,NBF, ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5
Display	Spectral Graph/Data, Sample Colorimetric Values, Color Difference Value/Graph, Pass/Fail Results, Color Simulation
Measurement Time	Measurement Time: Approx. 1s per angle, approx. 3s for all angles
Color Repeatability	Spectral Reflectance: Standard deviation within 0.08% Chromaticity Value: 0.02 ΔE*ab (average of 30 measurements on white tile at 5s intervals after instrument warm-up and calibration)
Color Reproducibility	△E<0.10,average on gray BCRA tiles △E<0.25,average on chromatic BCRA tiles
Inter-Instrument Error	0.2ΔE*00（average on 12 BCRA Series II tiles）
Effect Parameters	/
Effect Measurement	/
Effect Repeatability	/
Effect Reproducibility	/
Trigger Mode	Button trigger, software trigger
Measurement Mode	Single measurement, average measurement (1~99 times), continuous measurement (1~99 times)
Positioning Method	Color camera preview
Dimensions	Length * Width * Height = 195 * 83 * 128mm
Weight	Approx. 1Kg
Battery Capacity	Lithium battery, 3.7V, 5000mAh, 5000 continuous tests within 8 hours when fully charged
Display Screen	TFT true color 3.5-inch capacitive touch screen
Interface	USB, Bluetooth
Data Storage	1000 standards, 10000 samples
Languages	Simplified Chinese, English, Traditional Chinese, Russian
Operating Temperature Range	10℃ to 50℃, humidity ≤85%, non-condensing
Storage Temperature Range	-20℃ to 50℃, humidity ≤85%, non-condensing
Calibration	Built-in white plate parameters, external white plate, black trap
Calibration Interval	4h, 8h, 24h, power-on calibration
Standard Accessories	Power adapter, data cable, instruction manual, quality management software (download from official website), calibration box, black trap, protective cover, wrist strap
Optional Accessories	Micro printer
Notes	Technical specifications are for reference only. The actual product shall prevail.
