KS-100 Spectrophotometer

With 4 measurement apertures adaptable to flat or curved samples, it supports multi-system connectivity and camera framing for precise targeting—enabling quick mastery even for beginners without complex training....

Spectrocolorimeters

Brands:

Type: KS-100

Description Additional information

Description

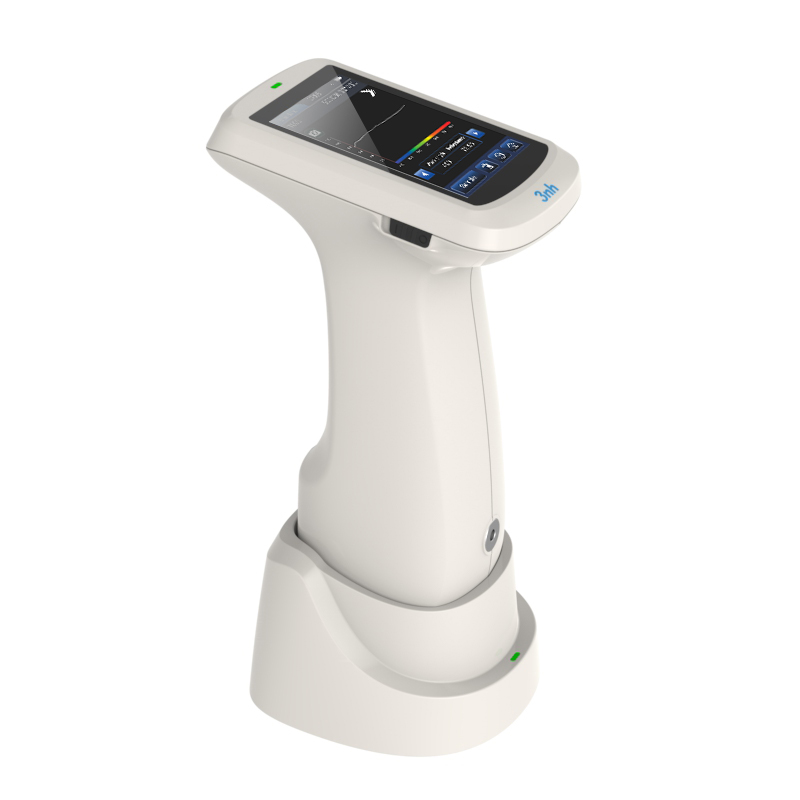

3NH KS-100 Spectrophotometer

Designed for routine color measurement, featuring stability, reliability, and portability with easy operation. Equipped with a dual-row 18-element silicon photodiode array and nano-integrated spectral device, it delivers a repeatability of ΔEab ≤ 0.028 and inter-instrument agreement of ΔEab ≤ 0.35, meeting basic color control needs in industries such as plastics, electronics, printing, and ceramics. With 4 measurement apertures adaptable to flat or curved samples, it supports multi-system connectivity and camera framing for precise targeting—enabling quick mastery even for beginners without complex training.

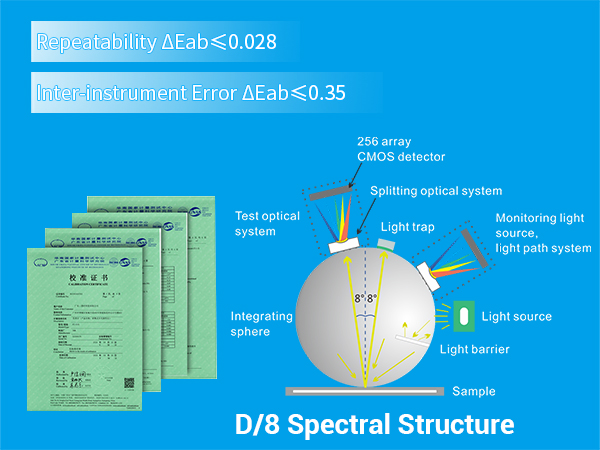

Accurate Measurement: Stable, Traceable, and Compliant with International Standards

1.High-Precision Performance, Reliable Data

Repeatability: ΔEab ≤ 0.028, Inter-instrument Agreement: ΔEab ≤ 0.35, Ensures color consistency in batch production.

Dual-beam optical system monitors light source energy fluctuations in real time, reducing measurement interference to enhance stability and repeatability.

2.Internationally Recognized D/8 SCI/SCE Technology

Adheres to D/8 illumination and viewing geometry with SCI/SCE technology. Suitable for industries such as coatings, textiles, and plastics. Complies with CIE, ISO, ASTM, and other international standards, meeting industry color management specifications.

3.Authorized Metrological Certification, Credible Results

Each unit is factory-calibrated and certified by an authoritative body. Measurement data is traceable to national metrology institutes, ensuring the authority of test results.

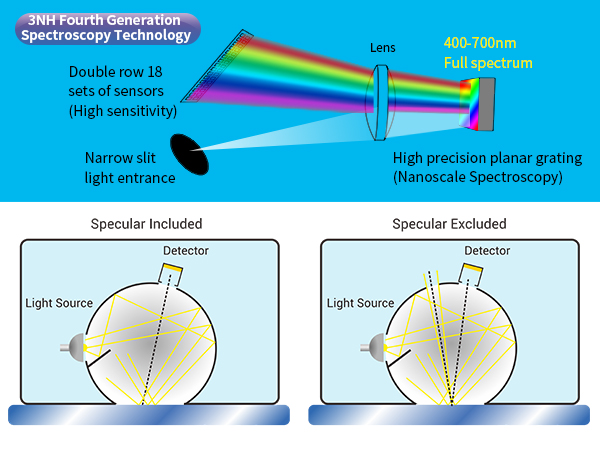

Robust Hardware

1.Core Optical Components for Precise Spectral Capture

Silicon Photodiode Array (Dual-row, 18 groups): ：Large-area design ensures no saturation under strong light and high sensitivity in low light. Spectral response covers 400-700nm with a 10nm interval. Reflectance measurement range: 0-200%, accurately capturing visible light information.

Nano-integrated Spectral Device: Nanoscale spectroscopic capability accurately separates light of different wavelengths, ensuring the precision of band data.

Full-band Balanced LED Light Source: Covers the full 400-700nm spectrum, avoiding spectral gaps and ensuring measurement accuracy.

2.Advanced Hardware Architecture for Both Efficiency and Precision

Optical resolution of less than 10nm within the visible light range.

Supports simultaneous measurement of SCI (Specular Component Included) and SCE (Specular Component Excluded) spectra.

Balances speed, accuracy, and stability.

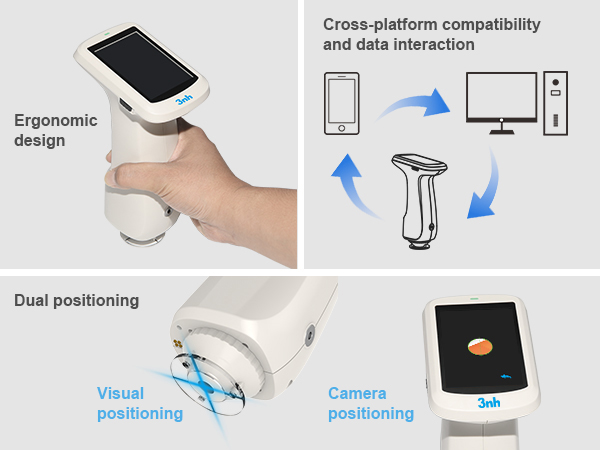

Portable Operation, User-Friendly Design, and Efficient Cross-Device Collaboration

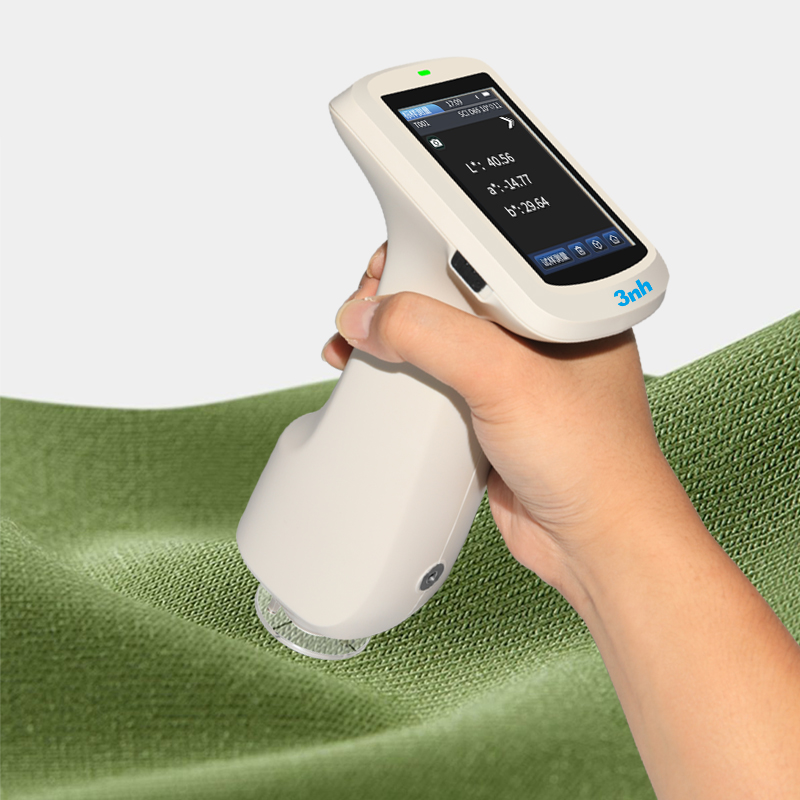

1.Ergonomic Design and Easy Measurement Assistance

Ergonomic exterior design conforms to natural grip habits. Equipped with a large, clear touchscreen featuring intuitive operation logic. Enables quick mastery for beginners without complex training, improving on-site efficiency.

2.Stabilizer Plate + Camera Targeting for Reduced Measurement Errors

Dual positioning system combining a stabilizer plate and a camera. Real-time viewing confirms if the measured area is exactly the target center. Precisely locks onto the measurement spot, minimizing errors caused by manual operation.

3.Multi-Platform Compatibility and Data Interaction

Supports Android, iOS, Windows, HarmonyOS, and other systems. Compatible with mobile apps, WeChat mini-programs, and PC software. Enables cross-device data synchronization, facilitating flexible on-site operation and efficient data management.

Wide Measurement Range, Adaptable to Various Forms, Covering Multiple Industries

1.Multi-Aperture Design for Different Samples

Equipped with 4 measurement apertures (5mm/10mm platform + pointed tip). Suitable for samples of various forms, including flat, curved, and concave-convex surfaces.

2.Cross-Industry Adaptability for Diverse Needs

Switchable measurement modes to flexibly meet testing requirements in industries such as plastics, electronics, paints and inks, textile dyeing and printing, printing, and ceramics.

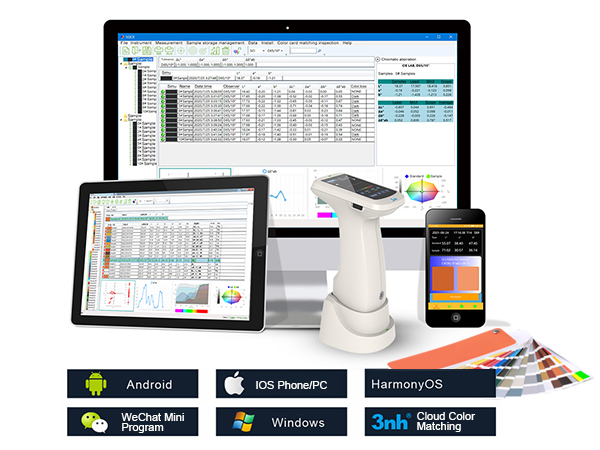

Strong Expandability: Cloud Management + Professional Software for Enhanced Control

1.Cloud Storage for Portable Data Access

Supports mass color data storage via the mobile app and WeChat mini-program, enabling the creation of a personal cloud database. Eliminates the need for physical color cards, allowing instant data sharing with partners anytime, anywhere for convenient collaboration.

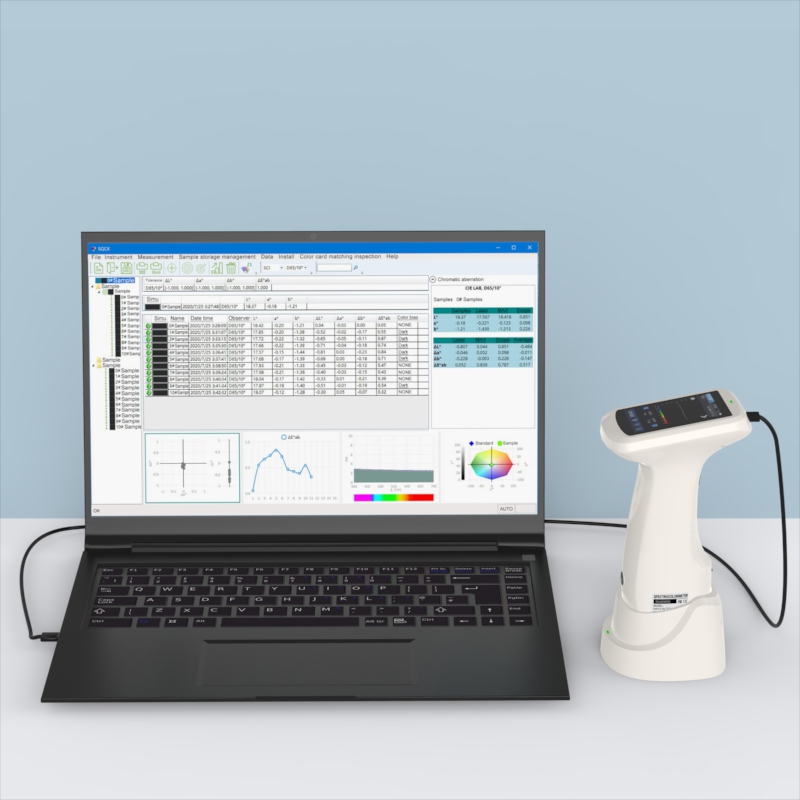

2.Multi-Platform Color Management Software for Industrial-Level Needs

The accompanying quality management software is compatible with Android, iOS, Windows, WeChat mini-programs, HarmonyOS, and the Color Matching Cloud platform. Generates test reports, compares color difference data, and enables customized color management workflows, meeting industrial-level quality control requirements.

Technical Specification

Model	KS-100 Spectrophotometer
Illumination/Viewing Geometry	D/8 (Diffuse illumination, 8° viewing), SCI/SCE (Specular Component Included/Excluded). Compliant with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7.
Features	Utilizes a dual-path silicon photodiode array. Ideal for color difference quality control in industries such as plastics, electronics, paints and inks, textile dyeing and printing, printing, and ceramics.
Light Source	Combined full-spectrum LED light source.
Integrating Sphere Size	Φ40mm
Spectral Device	Nano-integrated spectral device
Sensor	Silicon photodiode array (dual-row, 18 groups)
Wavelength Range	400-700nm
Wavelength Interval	10nm
Measurement Aperture	4 Apertures: 5mm platform + 5mm pointed tip + 10mm platform + 10mm pointed tip.
Specular Mode	Simultaneous measurement
Color Space	CIE LAB
Color Difference Formula	ΔE*ab
Other Color Indices	/
Observer Angle	2°/10°
Calibrated Illuminants	D65
Display Data	Spectral graph/data, sample color values, color difference values/graph, pass/fail results, color simulation, color bias
Measurement Time	Approx. 1 second
Repeatability	Chromaticity Value: Within ΔE*ab 0.028 (Standard deviation) for MAV/SCI (after warm-up and calibration, average of 30 readings of white board at 5s intervals). Spectral Reflectance: Within 0.1% standard deviation for MAV/SCI (within 0.2% for 400-700nm).
Inter-Instrument Error	Within ΔE*ab 0.35 for MAV/SCI (average of 12 BCRA Series II color tiles).
Displayed Accuracy	0.01
Reflectance Range	0-200%
Reflectance Resolution	0.01%
Measurement Mode	Single measurement, average measurement (2-99 times).
Targeting	Stabilizer plate positioning + Camera framing.
White Calibration	Contact-type white calibration.
Dimensions	12075207mm
Weight	367g(without calibration base)
Battery	Lithium-ion battery, 3.7V, 3200mAh, supports 8000 measurements within 8 hours.
Light Source Life	Over 1.2 million measurements for 10 years.
Display	TFT true color 3.5-inch capacitive touch screen.
Interface	USB,Bluetooth
Data Storage	200 standards, 10,000 samples (SCI/SCE data included in one record). Mass storage via APP/PC.
Software Support	Android, iOS, Windows, WeChat Mini-Program, HarmonyOS.
Languages	Simplified Chinese, English, Traditional Chinese
Operating Environment	Temperature: 0~40℃, Humidity: 0~85% RH (non-condensing), Altitude: below 2000m.
Storage Environment	Temperature: -20~50℃, Humidity: 0~85% RH (non-condensing).
Accuracy Guarantee	Guaranteed metrological certification.
Standard Accessories	Power adapter, data cable, user manual, quality management software (download from official website), white calibration box, protective cover, wrist strap, measurement apertures.
Optional Accessories	Micro-printer, powder test box.
Note	Specifications are subject to change without prior notice.
