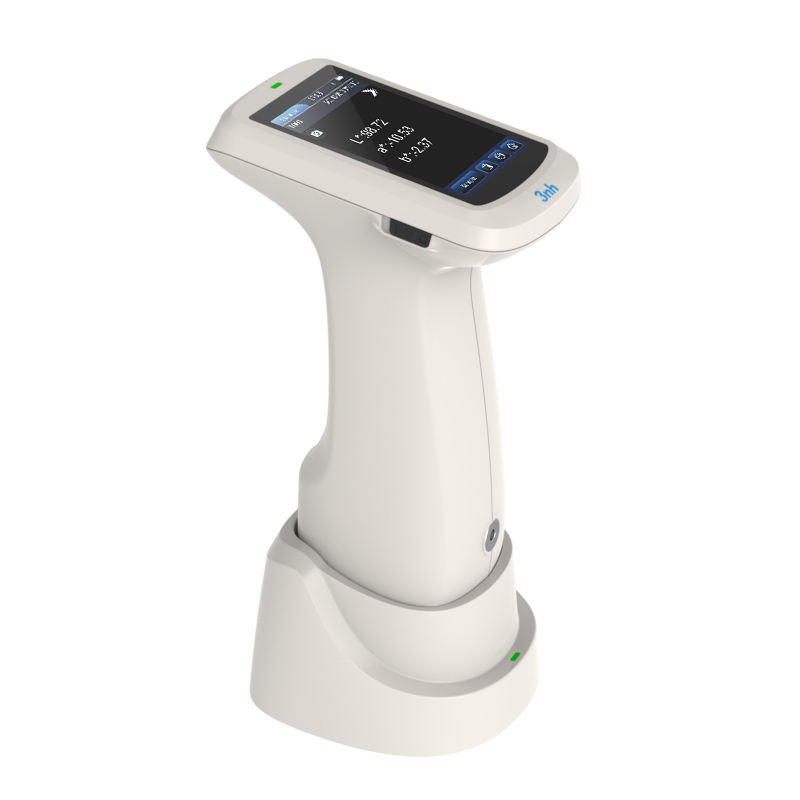

KS-210 Spectrophotometer

Integrated camera targeting ensures precise positioning on complex samples, including flat, curved, and concave-convex surfaces. Widely applicable for detailed color measurement across diverse industries....

Spectrocolorimeters

Brands:

Type: KS-210

Description Additional information

Description

Designed for measuring samples of various forms and offering convenient calibration. Features a dual-path silicon photodiode array, delivering a repeatability of ΔEab ≤ 0.028 and inter-instrument agreement of ΔEab ≤ 0.35. Backed by authoritative first-grade metrology certification for data reliability.
Equipped with 6 measurement apertures (3mm/5mm/10mm platform + pointed tip) and a new non-contact automatic white calibration function. Integrated camera targeting ensures precise positioning on complex samples, including flat, curved, and concave-convex surfaces. Widely applicable for detailed color measurement across diverse industries.

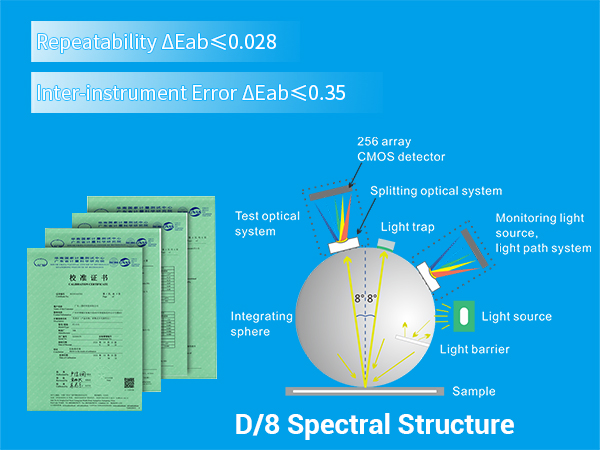

Accurate Measurement

1.High-Precision Performance, Reliable Data

Repeatability: ΔEab ≤ 0.028 ,Inter-instrument Agreement: ΔEab ≤ 0.35 ,Ensures color consistency in batch production.

Dual-beam optical system monitors light source energy fluctuations in real time, reducing measurement interference to enhance stability and repeatability.

2.Internationally Recognized D/8 SCI/SCE Technology

Adheres to D/8 illumination and viewing geometry with SCI/SCE technology. Suitable for industries such as coatings, textiles, and plastics. Complies with CIE, ISO, ASTM, and other international standards, meeting industry color management specifications.

3.Authorized Metrological Certification, Credible Results

Each unit is factory-calibrated and certified by an authoritative body. Measurement data is traceable to national metrology institutes, ensuring the authority of test results.

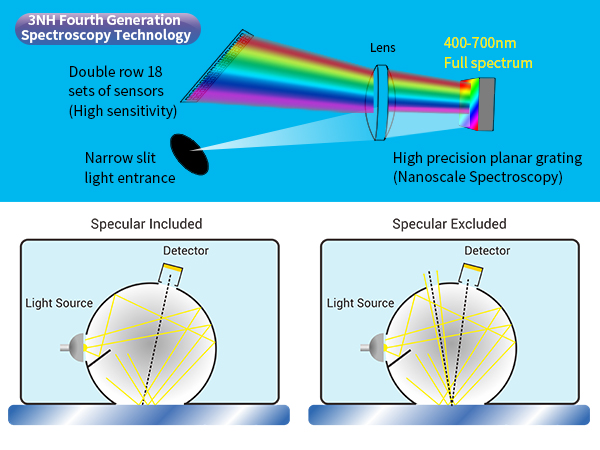

Robust Hardware

1.Core Optical Components

Silicon Photodiode Array (Dual-row, 18 groups):

Large-area design ensures no saturation under strong light and high sensitivity in low light. Spectral response covers 400-700nm with a 10nm interval. Reflectance measurement range: 0-200%, accurately capturing visible light information.

Nano-integrated Spectral Device:

Nanoscale spectroscopic capability accurately separates light of different wavelengths, ensuring the precision of band data.

Full-band Balanced LED Light Source:

Covers the full 400-700nm spectrum, avoiding spectral gaps and ensuring measurement accuracy.

2.Advanced Hardware Architecture

Optical resolution of less than 10nm within the visible light range. Supports simultaneous measurement of SCI (Specular Component Included) and SCE (Specular Component Excluded) spectra. Balances speed, accuracy, and stability.

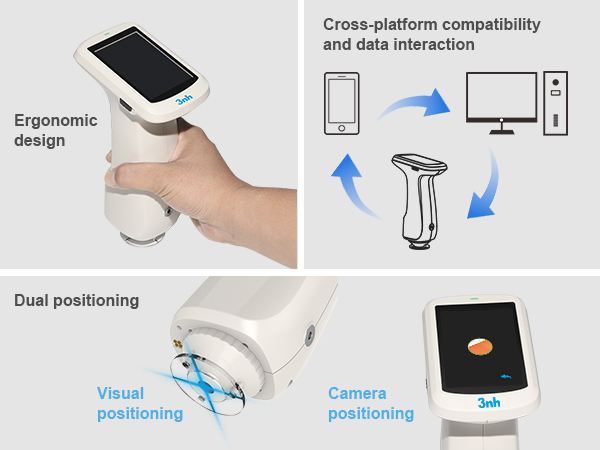

Portable Operation

1.Ergonomic Design and Easy Measurement Assistance

Ergonomic exterior design conforms to natural grip habits. Equipped with a large, clear touchscreen featuring intuitive operation logic. Enables quick mastery for beginners without complex training, improving on-site efficiency.

1.Stabilizer Plate + Camera Targeting for Clear View of Measurement Area

The dual positioning system, combining a stabilizer plate and a camera, enables real-time viewing through the camera. It accurately determines whether the measured spot on the object is exactly the target center, precisely locating the target area and reducing measurement errors.

2.Non-Contact Automatic White Calibration

Supports non-contact automatic white board calibration. The professional-grade standard white board features reflectance R% ≥ 95%, excellent surface uniformity, and high stability, ensuring consistently accurate data.

3.Multi-Platform Compatibility and Data Interaction

Supports Android, iOS, Windows, HarmonyOS, and other systems. Compatible with mobile apps, WeChat mini-programs, and PC software. Enables cross-device data synchronization, facilitating flexible on-site operation and efficient data management.

4.Simple and Easy to Operate

The instrument features a clean and intuitive interface, enabling quick mastery even for beginners without complex training, thus improving on-site work efficiency.

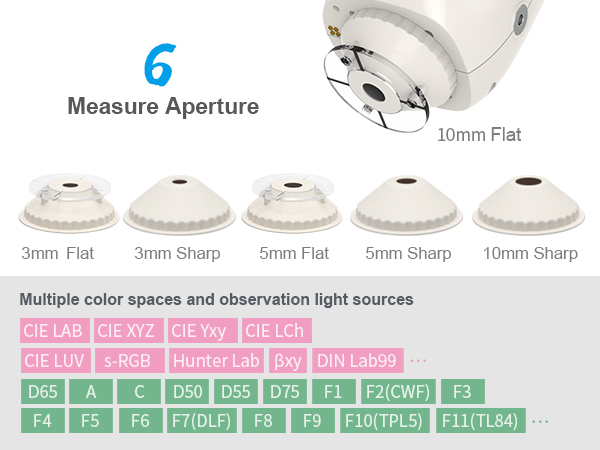

Wide Measurement Range

1.Adaptability to Various Sample Forms

Equipped with 6 measurement apertures: 3mm platform + 3mm pointed tip + 5mm platform + 5mm pointed tip + 10mm platform + 10mm pointed tip. Supports measurement of samples in various forms, including flat, curved, and concave-convex surfaces.

2.Multiple Color Spaces and Illuminants

Offers a wide selection of color spaces: CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, HunterLab, βxy, DIN Lab99. Provides diverse illuminants: D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12 (TL83/U30), U35, NBF, ID50, ID65. Meets special measurement requirements under different conditions.

3.Industry Applications

Switchable measurement modes flexibly meet the needs of industries such as plastics, electronics, paints and inks, textile dyeing and printing, printing, and ceramics.

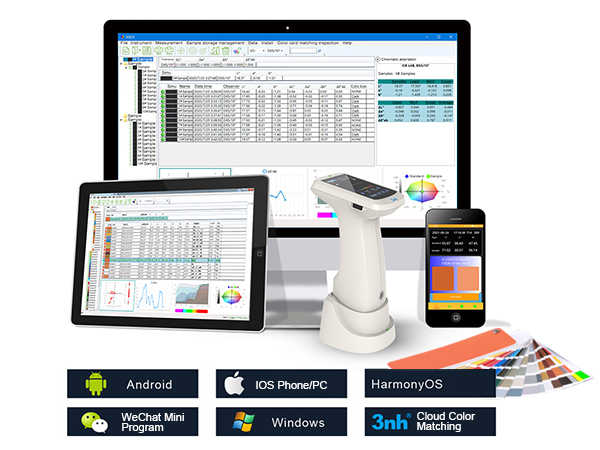

Strong Expandability

1.Cloud Storage and Collaborative Management

Supports mass color data storage via the mobile app and WeChat mini-program (stores up to 500 standards), enabling the creation of a personal cloud database. Eliminates the need for physical color cards, allowing instant data sharing with partners anytime, anywhere.

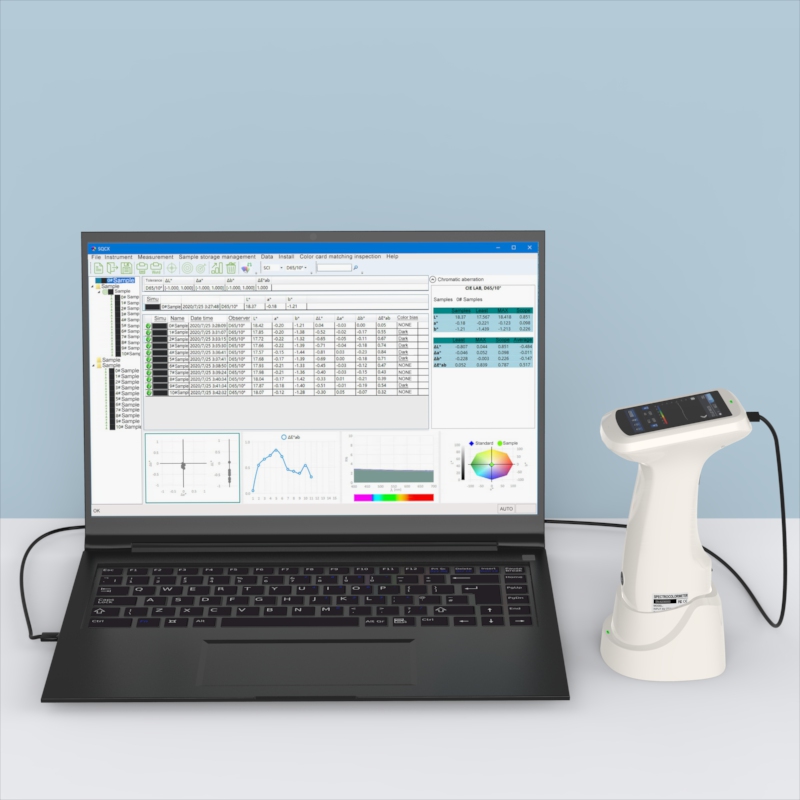

2.Professional Color Management Software

The accompanying quality management software is compatible with Android, iOS, Windows, WeChat mini-programs, HarmonyOS, and the Color Matching Cloud platform. Generates test reports, compares color difference data, and enables customized color management workflows, meeting industrial-level quality control requirements

Technical Specification

Model	KS-210 Spectrophotometer
Illumination/Viewing Geometry	D/8 (Diffuse illumination, 8° viewing), SCI/SCE (Specular Component Included/Excluded). Compliant with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7.
Features	Utilizes a dual-path silicon photodiode array. Ideal for color difference quality control in industries such as plastics, electronics, paints and inks, textile dyeing and printing, printing, and ceramics.
Light Source	Combined full-spectrum LED light source.
Integrating Sphere Size	Φ40mm
Spectral Device	Nano-integrated spectral device
Sensor	Silicon photodiode array (dual-row, 18 groups)
Wavelength Range	400-700nm
Wavelength Interval	10nm
Measurement Aperture	6 Apertures:3mm platform+3mm pointed tip+5mm platform+5mm pointed tip+10mm platform+10mm pointed tip
Specular Mode	Simultaneous measurement SCI/SCE
Color Space	CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99
Color Difference Formula	ΔEab,ΔEuv,ΔE94,ΔEcmc(2:1),ΔEcmc(1:1),ΔE00,DINΔE99,ΔE(Hunter)
Other Color Indices	Spectral Reflectance, WI (ASTM E313, CIE/ISO, AATCC, Hunter, Taube, Berger, Stensby), YI (ASTM D1925, ASTM 313), Metamerism Index MI, Staining Fastness, Shade Change Fastness, Strength, Opacity, 555 Shade Classification, Munsell (C/2), Blackness (My, dM), Color Density CMYK, Tint (Some functions realized via PC software)
Observer Angle	2°/10°
Calibrated Illuminants	D65,A,B,C,D50,D55,D75,F1 ,F2(CWF),F3,F4,F5,F6, F7(DLF),F8,F9,F10(TPL5),F11(TL84), F12(TL83/U30),U35,NBF,ID50, ID65,LED-B1,LED-B2,LED-B3,LED-B4, LED-B5,LED-BH1,LED-RGB1, LED-V1,LED-V2(Partially realized via PC software)
Display Data	Spectral graph/data, sample color values, color difference values/graph, pass/fail results, color simulation, color bias
Measurement Time	Approx. 1 second
Repeatability	Chromaticity Value: Within ΔE*ab 0.028 (Standard deviation) for MAV/SCI (after warm-up and calibration, average of 30 readings of white board at 5s intervals). Spectral Reflectance: Within 0.1% standard deviation for MAV/SCI (within 0.2% for 400-700nm).
Inter-Instrument Error	Within ΔE*ab 0.35 for MAV/SCI (average of 12 BCRA Series II color tiles).
Displayed Accuracy	0.01
Reflectance Range	0-200%
Reflectance Resolution	0.01%
Measurement Mode	Single measurement, average measurement (2-99 times).
Targeting	Stabilizer plate positioning + Camera framing.
White Calibration	Contact-type white calibration.
Dimensions	12075207mm
Weight	367g(without calibration base)
Battery	Lithium-ion battery, 3.7V, 3200mAh, supports 8000 measurements within 8 hours.
Light Source Life	Over 1.2 million measurements for 10 years.
Display	TFT true color 3.5-inch capacitive touch screen.
Interface	USB,Bluetooth
Data Storage	500 standards, 10,000 samples (SCI/SCE data included in one record). Mass storage via APP/PC.
Software Support	Android, iOS, Windows, WeChat Mini-Program, HarmonyOS.
Languages	Simplified Chinese, English, Traditional Chinese
Operating Environment	Temperature: 0~40℃, Humidity: 0~85% RH (non-condensing), Altitude: below 2000m.
Storage Environment	Temperature: -20~50℃, Humidity: 0~85% RH (non-condensing).
Accuracy Guarantee	Guaranteed metrological certification.
Standard Accessories	Power adapter, data cable, user manual, quality management software (download from official website), white calibration box, protective cover, wrist strap, measurement apertures.
Optional Accessories	Micro-printer, powder test box.
Note	Specifications are subject to change without prior notice.
