KS-510 Spectrophotometer

Equipped with 8 measurement apertures (3 mm/5 mm/10 mm/11 mm flat tip + pointed tip), it covers full-scene samples of conventional sizes....

Spectrocolorimeters

Brands:

Type: KS-510

Description Additional information

Description

Designed to meet the dual demands of high precision and full aperture coverage. It delivers repeatability of ΔEab ≤ 0.025 and inter-instrument agreement of ΔEab ≤ 0.3, powered by dual silicon photodiode arrays and a full-spectrum LED light source for efficient and accurate optical performance. Equipped with 8 measurement apertures (3 mm/5 mm/10 mm/11 mm flat tip + pointed tip), it covers full-scene samples of conventional sizes. With Class-I metrological certification and non-contact automatic calibration, it supports multi-system collaboration and storage of up to 15,000 sample records, making it ideal for industrial applications requiring both high precision and broad adaptability.

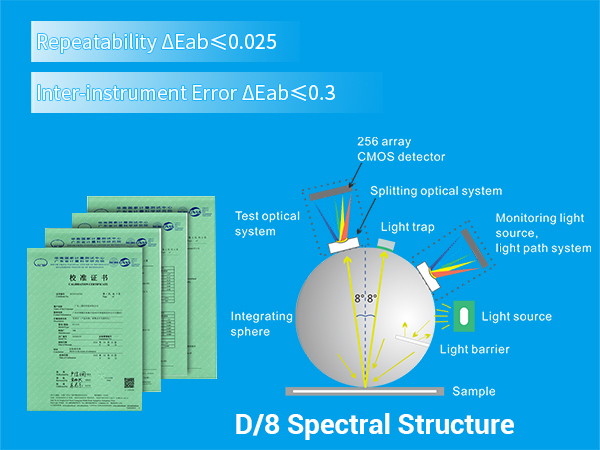

High Precision & Full-Scene Adaptability

1.High-Precision Performance with Accurate and Stable Data

Repeatability ΔEab ≤ 0.025 and inter-instrument agreement ΔEab ≤ 0.3 ensure consistent color across production batches.

The dual-beam optical system monitors light source energy fluctuations to effectively reduce measurement interference, further enhancing stability and repeatability.

2.Industry-Standard D/8 Geometry with SCI/SCE Technology

Adopts D/8 illumination and viewing geometry with SCI/SCE technology, meeting color management requirements in industries such as coatings, textiles, and plastics, and complying with international standards including CIE, ISO, and ASTM.

3.Accredited Metrological Certification

Certified as Class-I metrological grade. Each instrument undergoes rigorous verification before shipment, with measurement data traceable to the national metrology institute, ensuring the authority of test results.

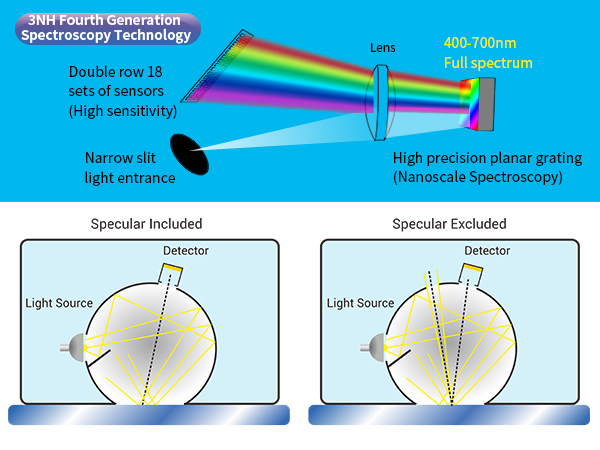

Robust Hardware

1.Core Optical Components

Silicon photodiode array

Features a dual-row 18-group silicon photodiode array. The large-area design ensures no saturation under strong light while maintaining high sensitivity under weak light. The spectral response covers 400-700 nm at 10 nm intervals, with a reflectance measurement range of 0-200%, accurately capturing visible light information.

Nanoscale Integrated Spectroscopic Device

Delivers nanoscale spectroscopic resolution, precisely separating light at different wavelengths to ensure high data accuracy across all spectral bands.

Full-Band Balanced LED Light Source

The illumination source covers the full 400-700 nm spectrum, providing sufficient spectral distribution across the visible range to avoid gaps common in standard white LED sources, ensuring measurement accuracy.

2.Advanced Hardware Architecture

Optical resolution of less than 10 nm in the visible range. Supports simultaneous measurement of SCI (specular component included) and SCE (specular component excluded) spectra, balancing speed, accuracy, and stability.

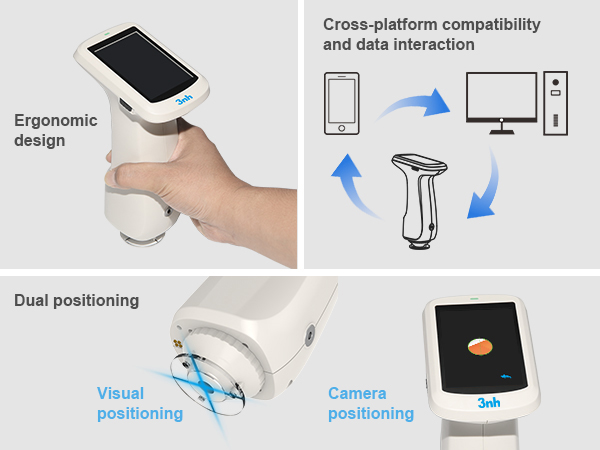

Portable Operation

1.Ergonomic Design and Easy Measurement

Ergonomically designed housing with a large touchscreen, optimized grip, and well-placed measurement button to accommodate different user preferences.

2.Stabilizer Plate + Camera Framing Positioning for Clear View of Measurement Area

The dual positioning system uses a stabilizer plate along with real-time camera framing to accurately determine whether the target area is centered, ensuring precise positioning and reducing measurement errors.

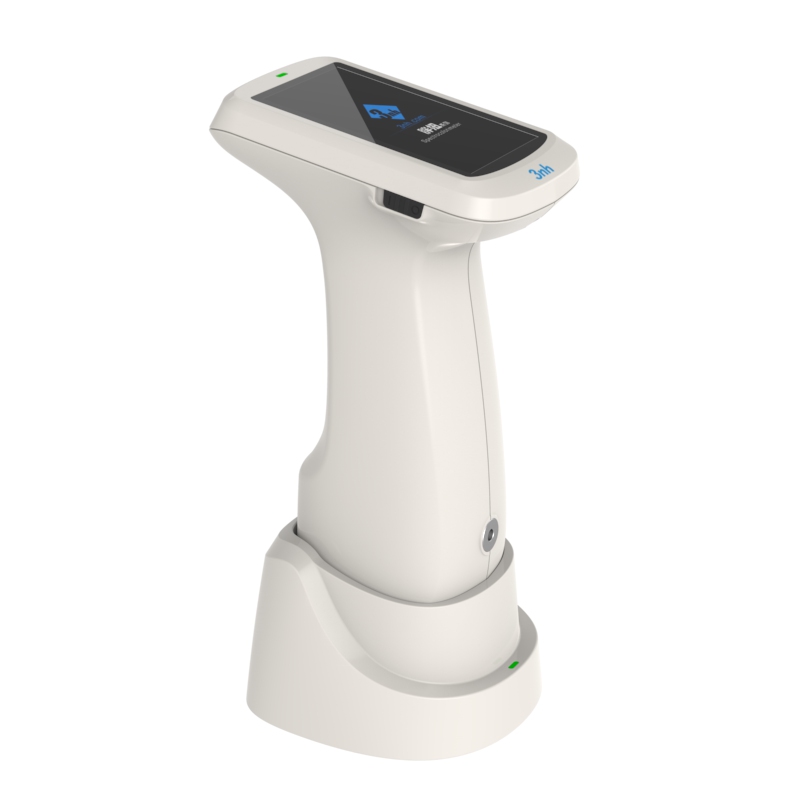

3.Non-Contact Automatic White Calibration

Supports non-contact automatic white calibration. The professional-grade white calibration plate features reflectance R% ≥ 95%, excellent surface uniformity, and high stability, delivering repeatable and accurate data.

4.Multi-Platform Compatibility and Data Connectivity

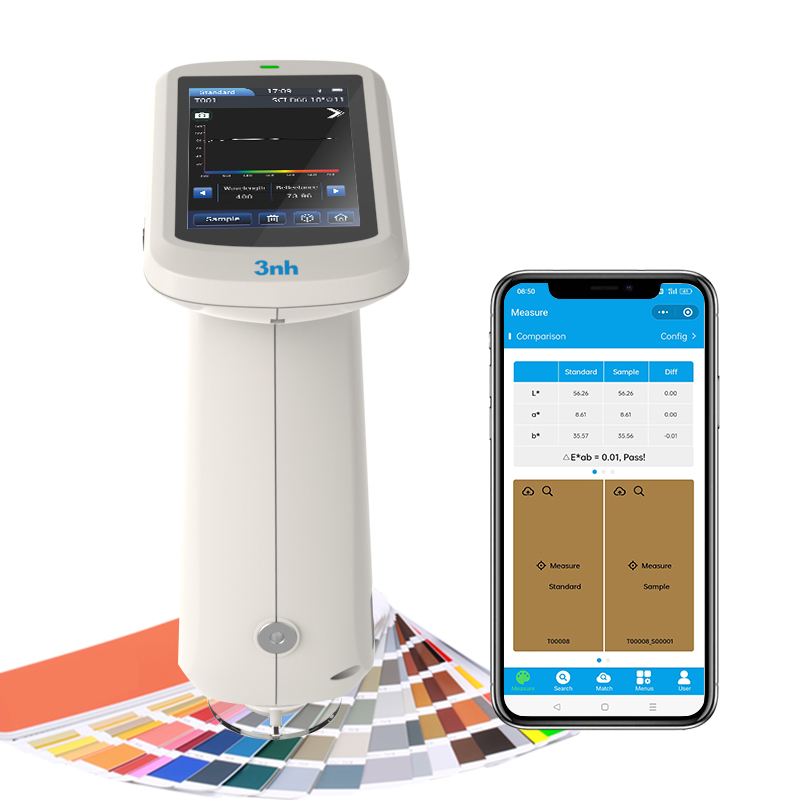

Compatible with multiple operating systems including Android, iOS, Windows, and HarmonyOS. Users can operate the instrument via mobile app, WeChat mini-program, or computer, enabling cross-device data synchronization.

5.Simple Operation

The instrument features a clean and intuitive user interface, requiring no complex training. Even beginners can quickly get started, improving on-site work efficiency.

Wide Measurement Range

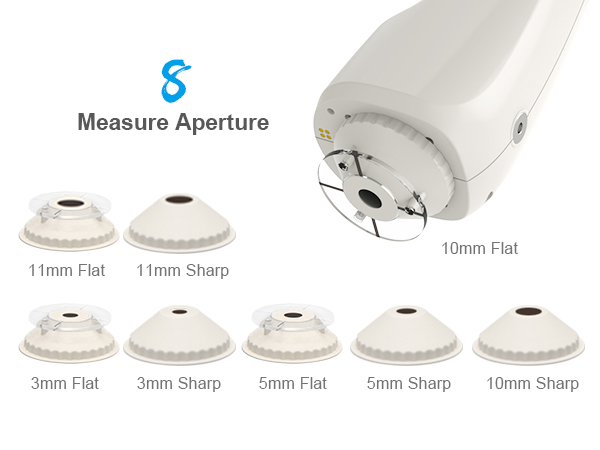

1.Adaptability to Various Sample Forms

Equipped with 8 measurement apertures: 3 mm flat tip, 3 mm pointed tip, 5 mm flat tip, 5 mm pointed tip, 10 mm flat tip, 10 mm pointed tip, 11 mm flat tip, and 11 mm pointed tip, supporting measurement of flat surfaces, curved surfaces, textured surfaces, and different sample geometries.

2.Multiple Color Spaces & Observation Light Sources

Supports a wide range of color spaces including CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, HunterLab, βxy, and DIN Lab99, as well as numerous observation light sources such as D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12 (TL83/U30), U35, NBF, ID50, and ID65. This enables specialized measurement requirements under various conditions.

3.Industry Applications

Switchable measurement modes flexibly meet the diverse needs of industries such as plastics and electronics, paints and inks, textiles and garment dyeing, printing, and ceramics.

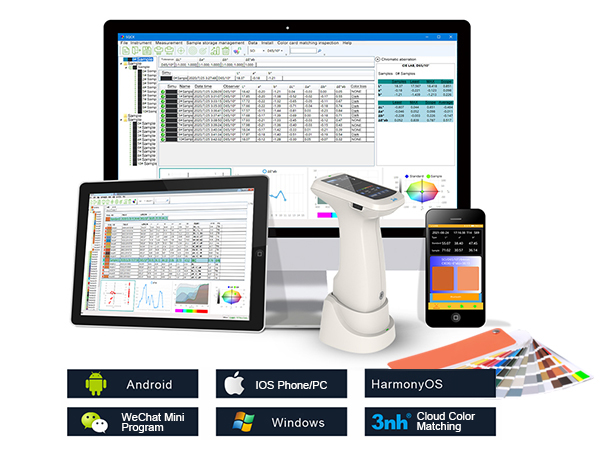

Strong Expansion Capabilities

1.Cloud Storage and Collaborative Management

Supports synchronized storage of massive color data via the mobile app and WeChat mini-program (up to 500 standard samples and 15,000 test samples), enabling a private cloud database. Eliminates the need to carry physical color cards, allowing seamless sharing with partners anytime, anywhere.

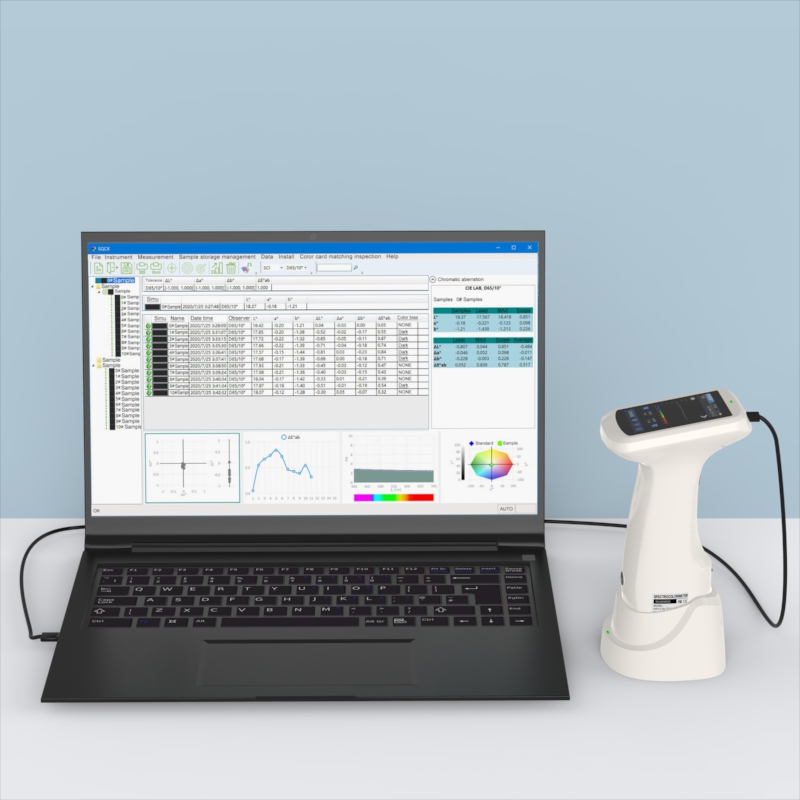

2.Color Management Software

Comes with quality management software compatible with multiple platforms including Android, iOS, Windows, WeChat mini-program, and HarmonyOS, as well as a color matching cloud platform. The software enables test report generation, color difference comparison, and customizable color management workflows, meeting industrial-level quality control requirements.

Technical Specification

Model	KS-510 Spectrophotometer
Illumination/Viewing Geometry	D/8 (Diffuse illumination, 8° viewing), SCI/SCE (Specular Component Included/Excluded). Compliant with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7.
Features	Utilizes a dual-path silicon photodiode array. Ideal for color difference quality control in industries such as plastics, electronics, paints and inks, textile dyeing and printing, printing, and ceramics.
Light Source	Combined Full-Spectrum LED Light Source, UV Light Source
Integrating Sphere Size	Φ40mm
Spectral Device	Nano-integrated spectral device
Sensor	Silicon photodiode array (dual-row, 18 groups)
Wavelength Range	400-700nm
Wavelength Interval	10nm
Measurement Aperture	8 Apertures::3mm platform+3mm pointed tip+5mm platform +5mm pointed tip+10mm platform+10mm pointed tip+11mm platform+11mm pointed tip
Specular Mode	Simultaneous measurement
Color Space	CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99
Color Difference Formula	ΔEab,ΔEuv,ΔE94,ΔEcmc(2:1),ΔEcmc(1:1),ΔE00,DINΔE99,ΔE(Hunter)
Other Color Indices	Spectral Reflectance, WI (ASTM E313, CIE/ISO, AATCC, Hunter, Taube, Berger, Stensby), YI (ASTM D1925, ASTM 313), Metamerism Index MI, Staining Fastness, Shade Change Fastness, Strength, Opacity, 555 Shade Classification, Munsell (C/2), Blackness (My, dM), Color Density CMYK, Tint (Some functions realized via PC software)
Observer Angle	2°/10°
Calibrated Illuminants	D65,A,B,C,D50,D55,D75, F1,F2(CWF),F3,F4,F5,F6,F7(DLF), F8,F9,F10(TPL5),F11(TL84), F12(TL83/U30),U35,NBF,ID50,ID65 ,LED-B1,LED-B2,LED-B3, LED-B4,LED-B5,LED-BH1,LED-RGB1, LED-V1,LED-V2 (Partially realized via PC software)
Display Data	Spectral graph/data, sample color values, color difference values/graph, pass/fail results, color simulation, color bias
Measurement Time	Approx. 1 second
Repeatability	Chromaticity Value: Within ΔE*ab 0.025 (Standard deviation) for MAV/SCI (after warm-up and calibration, average of 30 readings of white board at 5s intervals). Spectral Reflectance: Within 0.1% standard deviation for MAV/SCI (within 0.2% for 400-700nm).
Inter-Instrument Error	Within ΔE*ab 0.3 for MAV/SCI (average of 12 BCRA Series II color tiles).
Displayed Accuracy	0.01
Reflectance Range	0-200%
Reflectance Resolution	0.01%
Measurement Mode	Single measurement, average measurement (2-99 times).
Targeting	Stabilizer plate positioning + Camera framing.
White Calibration	Contact-type white calibration.
Dimensions	12075207mm
Weight	367g(without calibration base)
Battery	Lithium-ion battery, 3.7V, 3200mAh, supports 8000 measurements within 8 hours.
Light Source Life	Over 1.2 million measurements for 10 years.
Display	TFT true color 3.5-inch capacitive touch screen.
Interface	USB,Bluetooth
Data Storage	500 standards, 15,000 samples (SCI/SCE data included in one record). Mass storage via APP/PC.
Software Support	Android, iOS, Windows, WeChat Mini-Program, HarmonyOS.
Languages	Simplified Chinese, English, Traditional Chinese
Operating Environment	Temperature: 0~40℃, Humidity: 0~85% RH (non-condensing), Altitude: below 2000m.
Storage Environment	Temperature: -20~50℃, Humidity: 0~85% RH (non-condensing).
Accuracy Guarantee	Ensured first-grade metrology certification
Standard Accessories	Power adapter, data cable, user manual, quality management software (download from official website), white calibration box, protective cover, wrist strap, measurement apertures.
Optional Accessories	Micro-printer, powder test box.
Note	Specifications are subject to change without prior notice.
