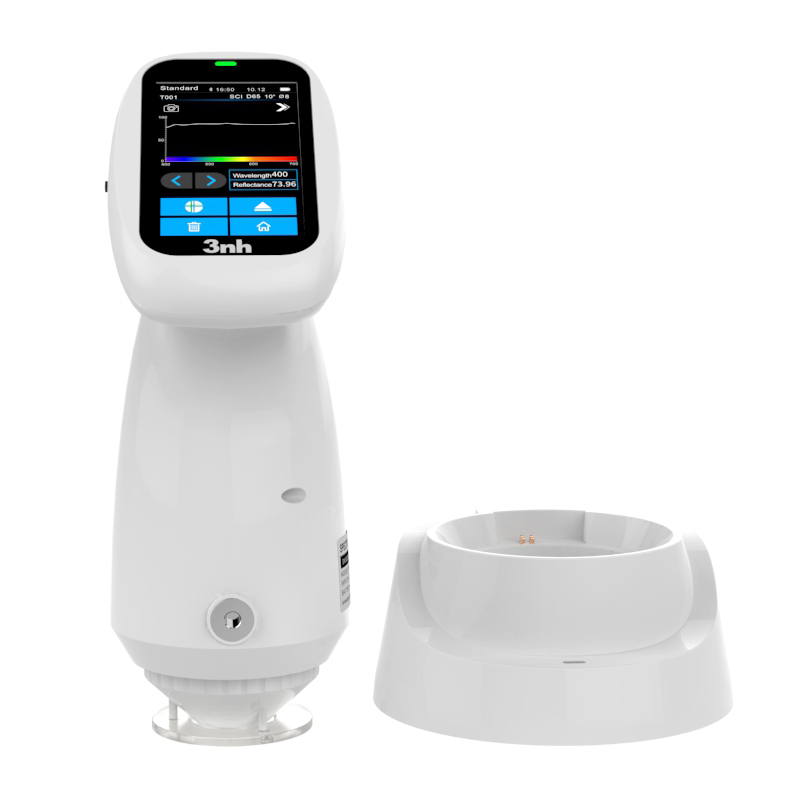

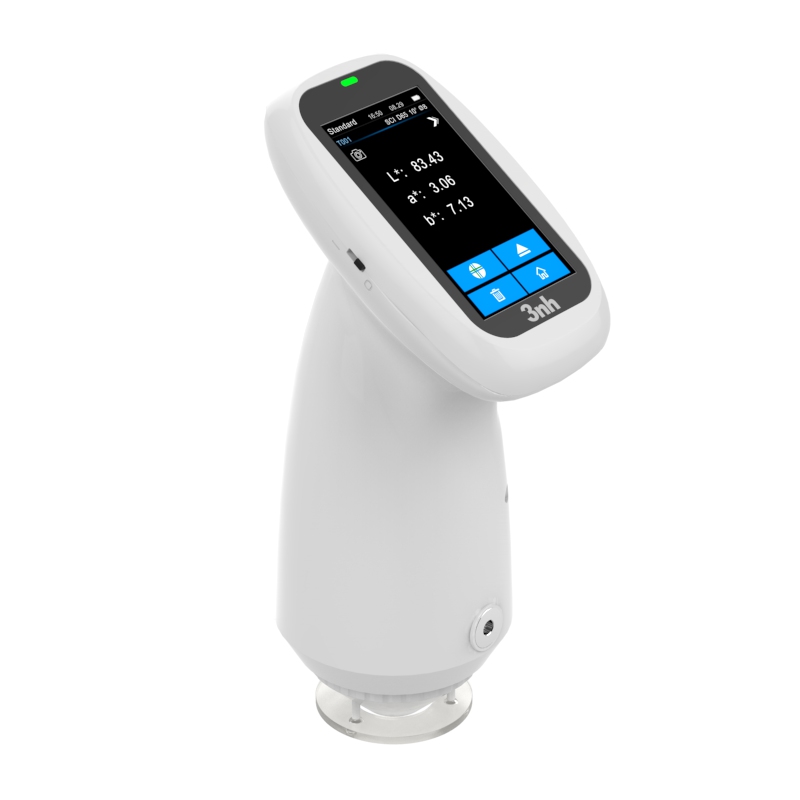

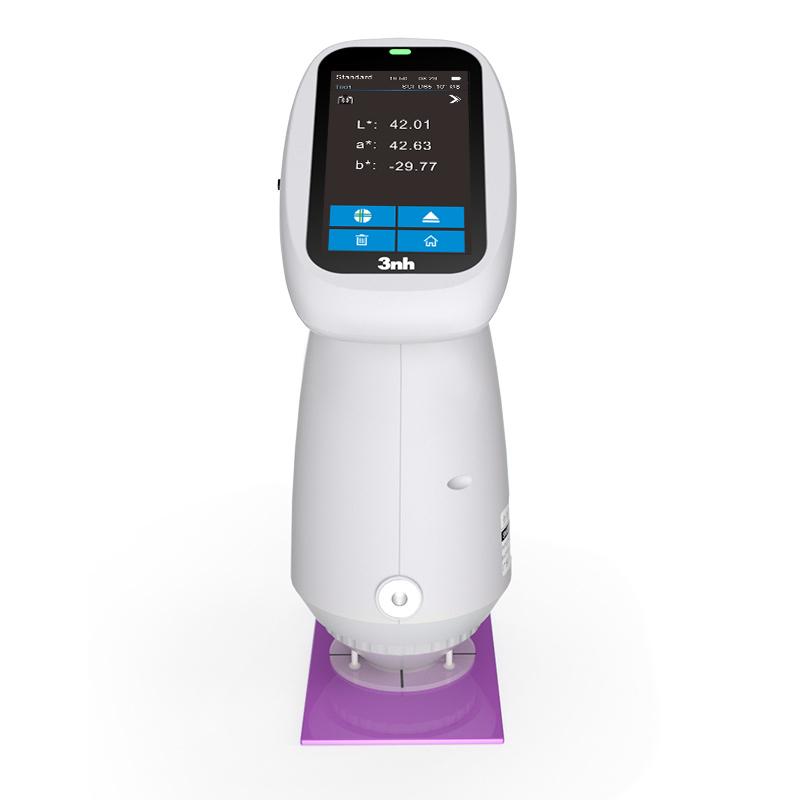

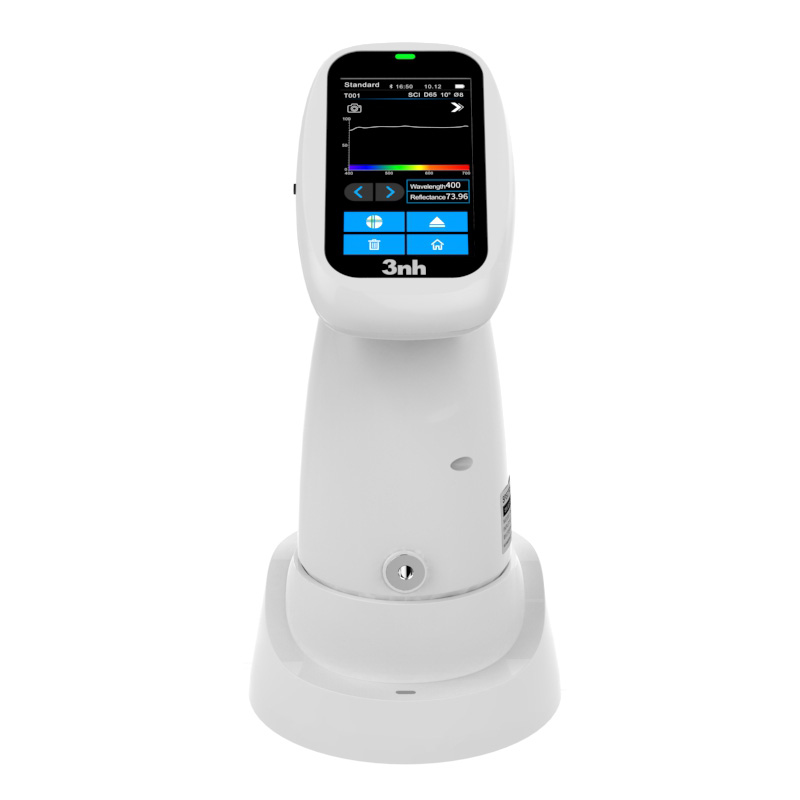

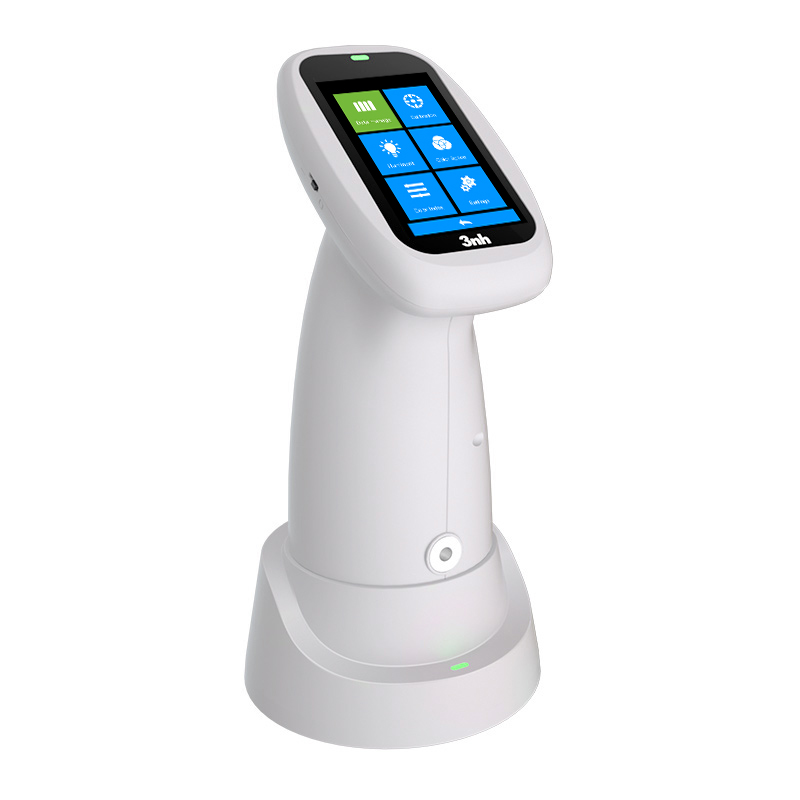

PS110 Spectrophotometer

Adopting the internationally adopted D/8 optical structure and SCI technology, it is equipped with Φ4mm (flat + conical) measuring apertures, satisfying color management and quality control requirements in coatings, textiles, plastics, food, building materials, cosmetics and other industries....

Spectrocolorimeters

Brands:

Type: PS110

Description Additional information

Description

PS110 is a professional and high-efficiency spectrophotometer equipped with a dual-row 16-group silicon photodiode array sensor, delivering excellent repeatability and inter-instrument consistency, ensuring stable and accurate measurement data. Adopting the internationally adopted D/8 optical structure and SCI technology, it is equipped with Φ4mm (flat + conical) measuring apertures, satisfying color management and quality control requirements in coatings, textiles, plastics, food, building materials, cosmetics and other industries.

Product Features

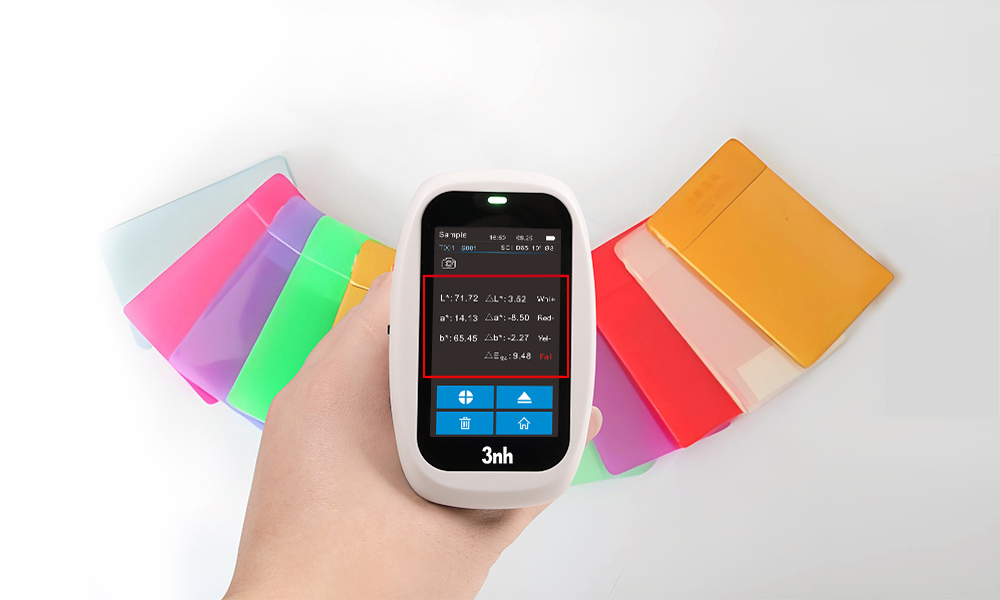

1. Excellent Measurement Performance

Professional Spectral Technology: With D/8 illumination and dual-row 16-group silicon photodiode array sensor, it accurately measures spectral reflectance within 400-700 nm.
Wide Aperture Compatibility: Φ4mm/Φ5mm (flat + conical) apertures adapt to various complex sample surfaces for high-precision color measurement.
High Repeatability: After warm-up calibration, the standard deviation of chromaticity value ΔE*ab ≤ 0.02, and spectral reflectance standard deviation ≤ 0.08%.
Low Inter-Instrument Difference: ΔE*ab ≤ 0.4 under MAV/SCI mode, ensuring high data consistency among multiple instruments.

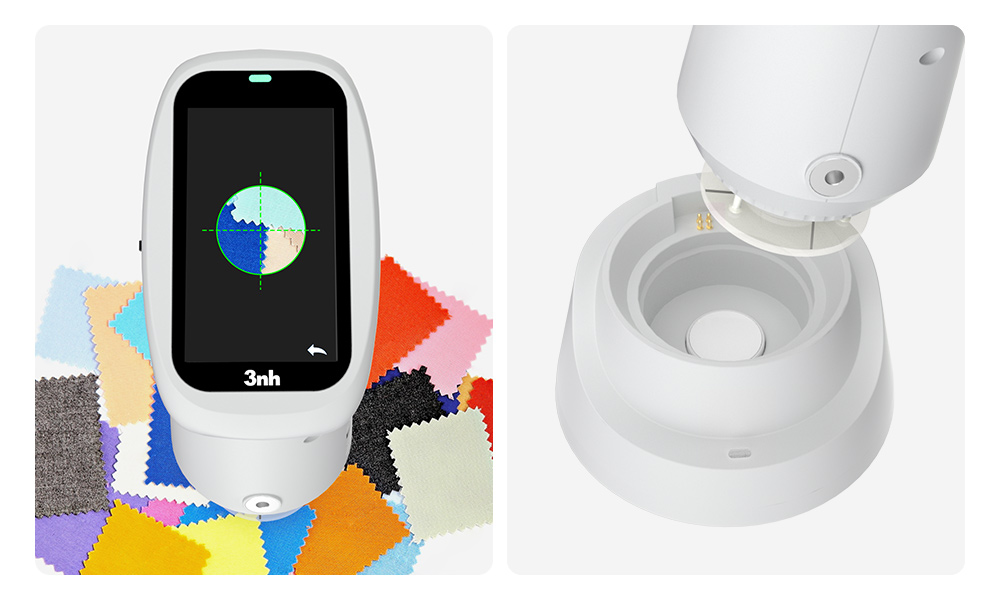

2. Easy Operation

Precise Positioning: Stable sheet positioning with flat + conical apertures enables easy targeting of small or irregular samples.
Simple Calibration: Supports contact whiteboard calibration, which can be completed in minutes.
Intuitive Interface: 2.8-inch TFT true-color capacitive touch screen displays spectral graphs, color values, color differences, pass/fail results, color simulation and color tendency.

3. Strong Environmental Adaptability

Wide Temperature Range: Stable operation at 0-40°C, suitable for workshops and laboratories.
Durable & Reliable: Full-spectrum LED light source lifespan up to 10 years (＞1.2 million measurements); rugged housing for industrial environments.

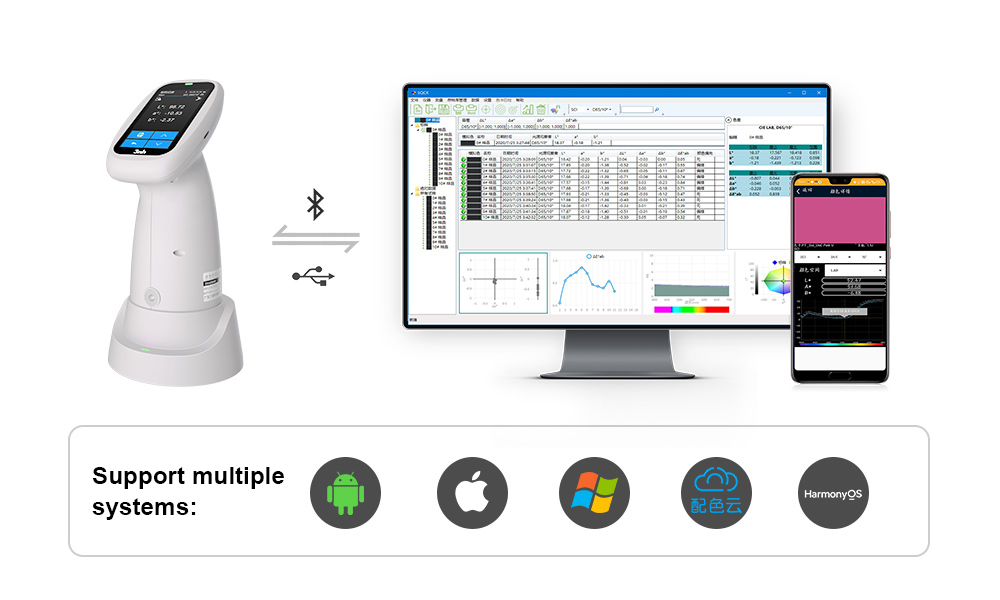

4. Excellent Data Management

Large Capacity Storage: Stores 200 standard samples and 10,000 test samples (SCI/SCE data supported simultaneously).
Multi-Device Connectivity: USB and Bluetooth®5.0 interfaces; compatible with Android, iOS, Windows, WeChat Mini Program and HarmonyOS for data transmission, sharing and remote management.

Applications

PS110 spectrophotometer is widely used in plastics & electronics, paints & inks, textiles & garments, printing, ceramics and other industries. It supports full-process color quality control from raw material inspection, production monitoring to finished product testing, playing a key role in improving product quality and ensuring color consistency.

Technical Specification

Technical Specifications

Spectrophotometer
Product Model	PS110 Spectrophotometer
Illumination/Viewing	D/8 (Diffuse/8°), SCI (Specular Component Included)Complies with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO 7724-1, ASTM E1164, DIN 5033 Teil7
Features	Color quality control for plastics, electronics, paints, inks, textiles, printing, ceramics, etc.
Light Source	Full-spectrum combined LED
Integrating Sphere	Φ40mm
Spectral Device	Nano-integrated spectral sensor
Sensor	Dual-row 16-group silicon photodiode array
Wavelength Range	400-700nm
Measuring Apertures	Φ4mm/Φ5mm(flat + conical)
Light Mode	SCI
Color Space	CIE LAB
Color Difference Formula	ΔE*ab
Other chromaticity indices	/
Observer	2°/10°
Illuminant	D65
Display	Spectrum graph/data, color value, color difference graph, pass/fail, color simulation, color tendency
Measuring Time	Approx.1s
Repeatability	Chromaticity value: MAV/SCI, standard deviation ΔE*ab ≤ 0.02 (after warm-up and calibration, average of 30 measurements on white tile at 5second intervals) Spectral reflectance: MAV/SCI, standard deviation ≤ 0.08% (0.18% within 400-700 nm)
Inter-Instrument Agreement	ΔE*ab ≤ 0.4 (measured on 12 BCRA Series II tiles)
Display Resolution	0.01
Reflectance Range	0-200%
Reflectance Resolution	0.01%
Measuring Mode	Single measurement, average measurement (2-99 times)
Positioning	Stable sheet positioning
Calibration	Contact whiteboard calibration
Dimensions	94(L)×68(W)×188(H) mm (excluding calibration base)
Weight	410 g (excluding calibration base)
Battery	Li-ion 3.7V 3200mAh, up to 8000 measurements in 8 hours
Light Source Life	10 years or ＞1.2 million measurements
Screen	2.8-inch TFT true-color capacitive touch screen
Interface	USB, Bluetooth®5.0
Data Storage	200 standards, 10,000 samples; unlimited via APP/PC
Software Support	Android, iOS, Windows, WeChat Mini Program, HarmonyOS
Language	Simplified Chinese, English, Traditional Chinese
Operating Environment	0-40°C, 0-85%RH (non-condensing), altitude ＜2000 m
Storage Environment	-20-50°C, 0-85%RH (non-condensing)
Standard Accessories	Power adapter, data cable, user manual, QC software (downloadable), white calibration box, protective cover, wrist strap, measuring apertures
Optional Accessories	Mini printer, powder test kit
Note	Specifications are for reference only; subject to actual product
