PS210 Spectrophotometer

And it equipped with Φ4mm (flat + conical) measuring apertures, widely used for color quality control in plastics & electronics, paints & inks, textiles & garments, printing, ceramics, and other industries....

Spectrocolorimeters

Brands:

Type: PS210

Description Additional information

Description

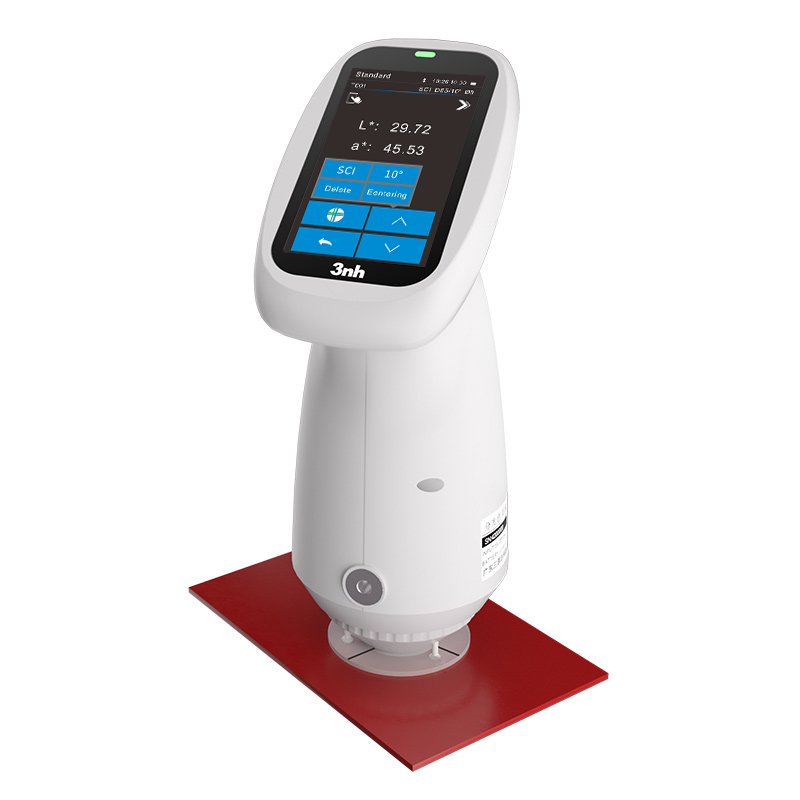

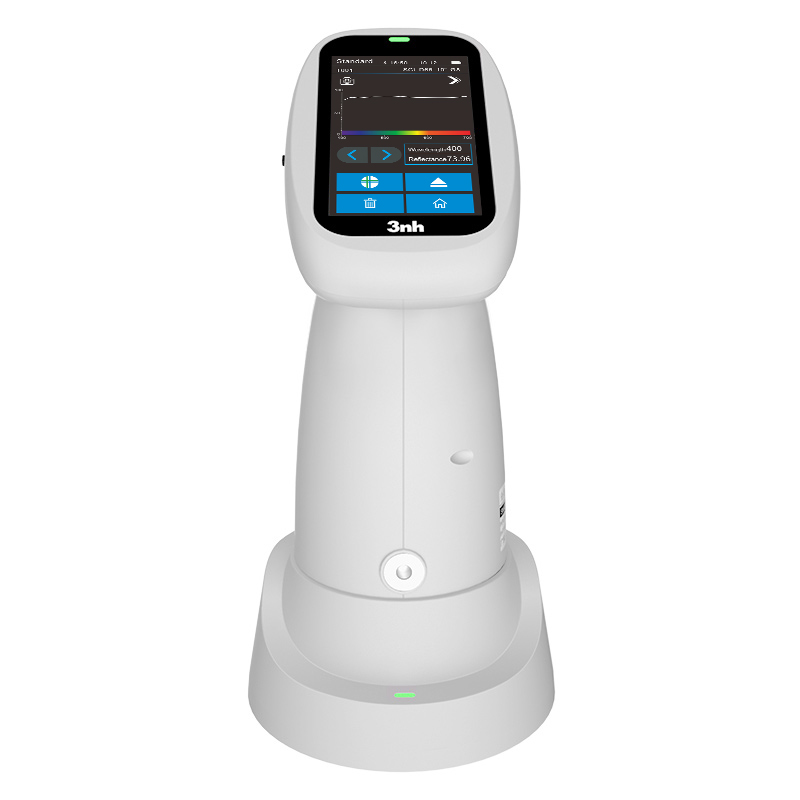

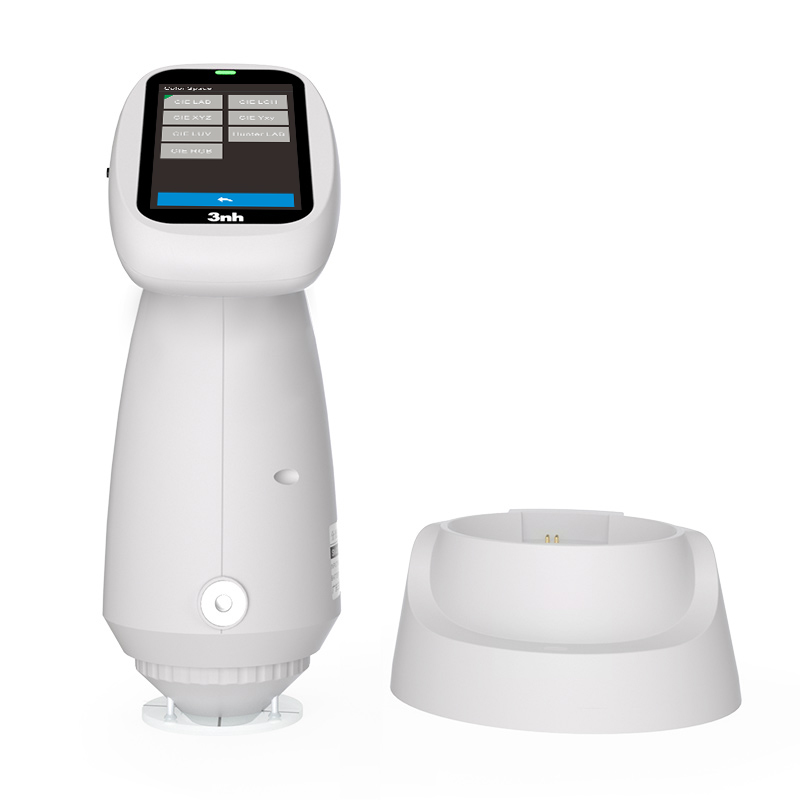

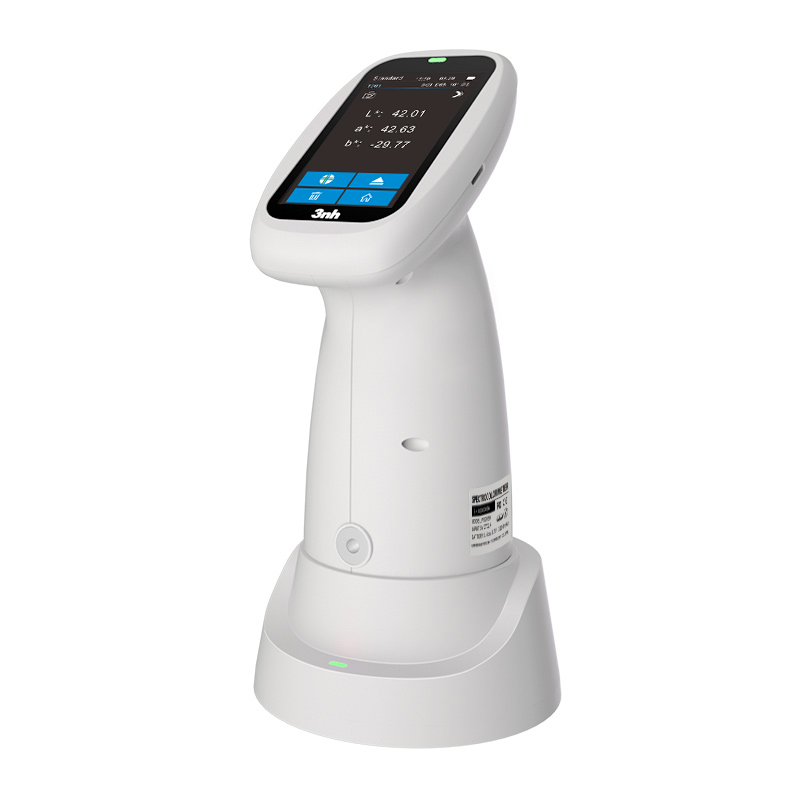

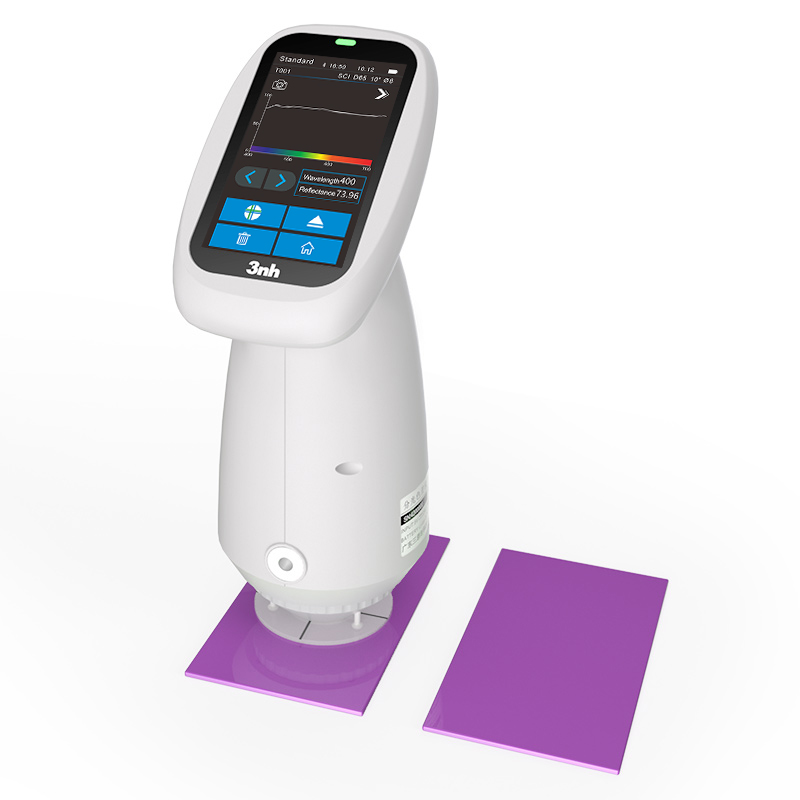

PS210 is a professional-grade model in the domestic PS series spectrophotometers. Adopting D/8 illumination viewing geometry and a dual-row 16-group silicon photodiode array sensor, it perfectly integrates the functions of a spectrophotometer and spectral colorimeter. The instrument features excellent repeatability and inter-instrument agreement, delivering stable and reliable measurement data. With a compact, streamlined, and ergonomic design, it offers a comfortable grip, combining aesthetics and practicality.

Product Features

Core Performance

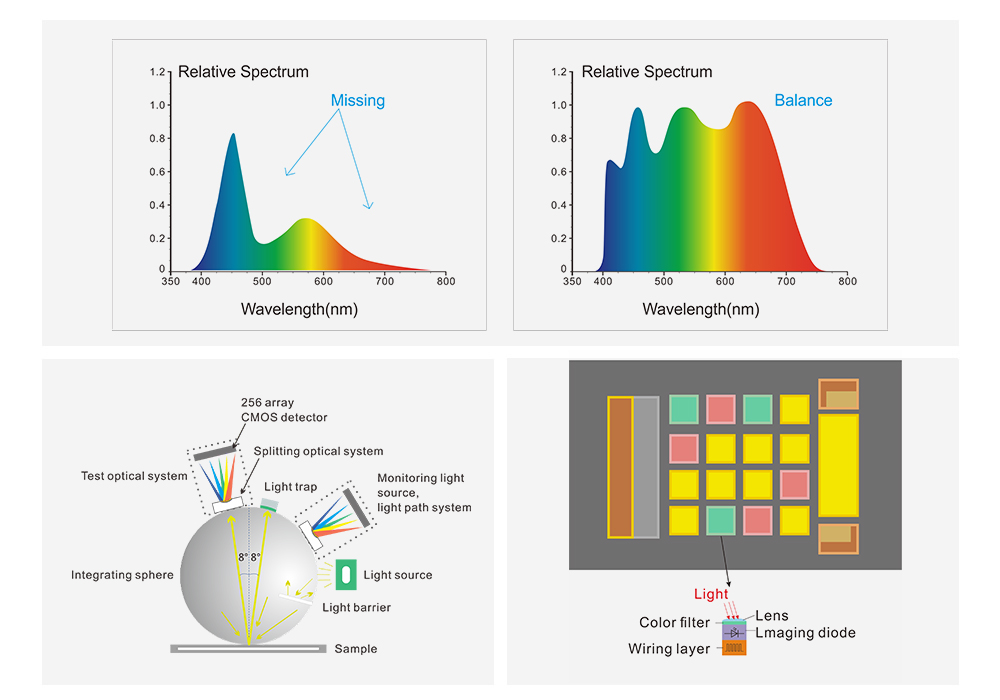

1. Optical Design & Measurement Capability

D/8 Illumination Viewing Geometry: Adopts the internationally accepted D/8 structure with SCI (Specular Component Included) mode, complying with CIE No.15, GB/T 3978 and other international and domestic standards, ensuring authoritative and universal measurement results.
Dual Optical Path Design: Equipped with a dual row 16 group silicon photodiode array sensor and Φ40mm integrating sphere for more efficient and accurate color data processing.
Full Spectrum Balanced LED Light Source: Captures spectra from 400-700 nm with sufficient spectral distribution in the visible range, avoiding spectral gaps typical of ordinary white LEDs and ensuring high measurement accuracy.

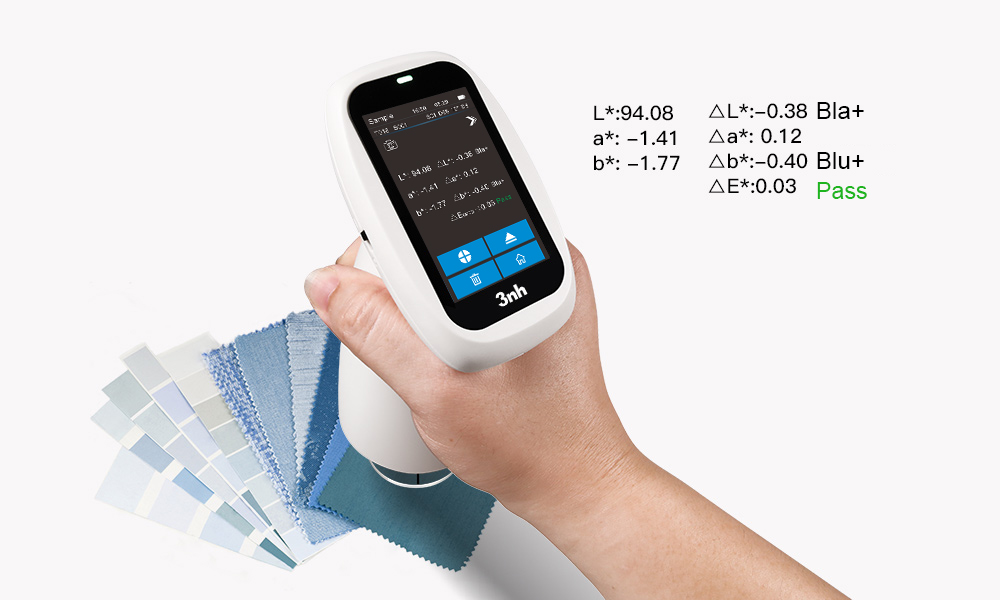

2. Data Accuracy & Stability

Repeatability: Chromaticity value standard deviation ΔE*ab ≤ 0.02, ensuring high consistency of measurement results.
Inter Instrument Agreement: ΔE*ab ≤ 0.35, providing excellent consistency among multiple instruments for multi device color management.

3. Operation Experience & Functional Adaptability

User Friendly Interface: 2.8 inch TFT true color capacitive touch screen, supporting one button measurement. The interface clearly displays spectral graphs, chromaticity values, color differences, pass/fail judgments, color simulation, and color tendency.

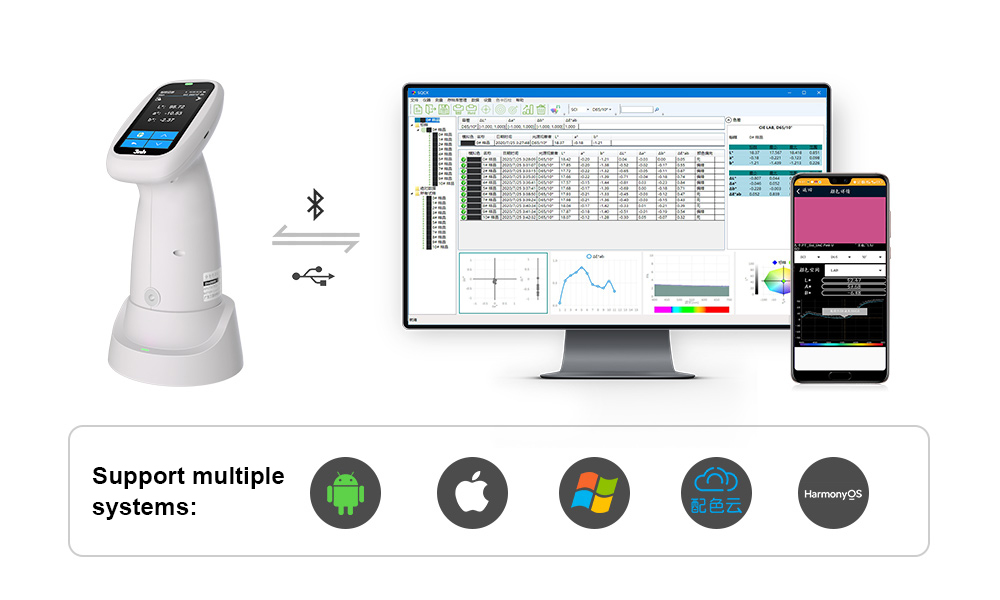

Multi Device Connectivity: USB and Bluetooth® 5.0 for connection with PCs and mobile phones (Android, iOS, HarmonyOS) and WeChat Mini Program (Color Matching Cloud). Professional quality control software enables real time data synchronization, report generation, and cloud storage (200 standards + 10,000 samples on APP/PC), supporting remote collaboration and mobile office.

Functional Highlights

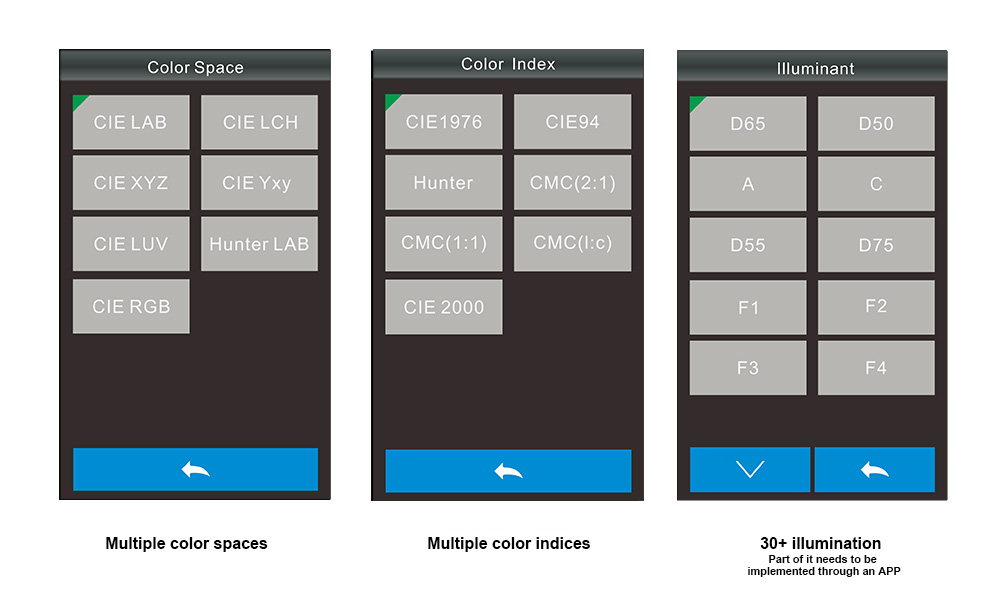

1. Multiple Color Spaces & Illuminants

Color Spaces & Formulas: Supports CIE LAB, XYZ, HunterLab and other color spaces; ΔEab, ΔEcmc, ΔE*00 and other mainstream color difference formulas. Measures spectral reflectance, whiteness index (WI), yellowness index (YI), metamerism index Mt, staining/color fastness, and other chromatic indexes. Advanced functions (Munsell, CMYK) are available via mobile APP.
Wide Illuminant Coverage: Built in 30+ standard illuminants including D65, A, C, D50 (some extended via mobile APP) to meet color evaluation under various lighting conditions.

2. Hardware Design & Professional Application

Ergonomic Design: Smooth, stylish housing with comfortable grip, suitable for continuous inspection. Auto measurement sensing device ensures portability and ease of use.

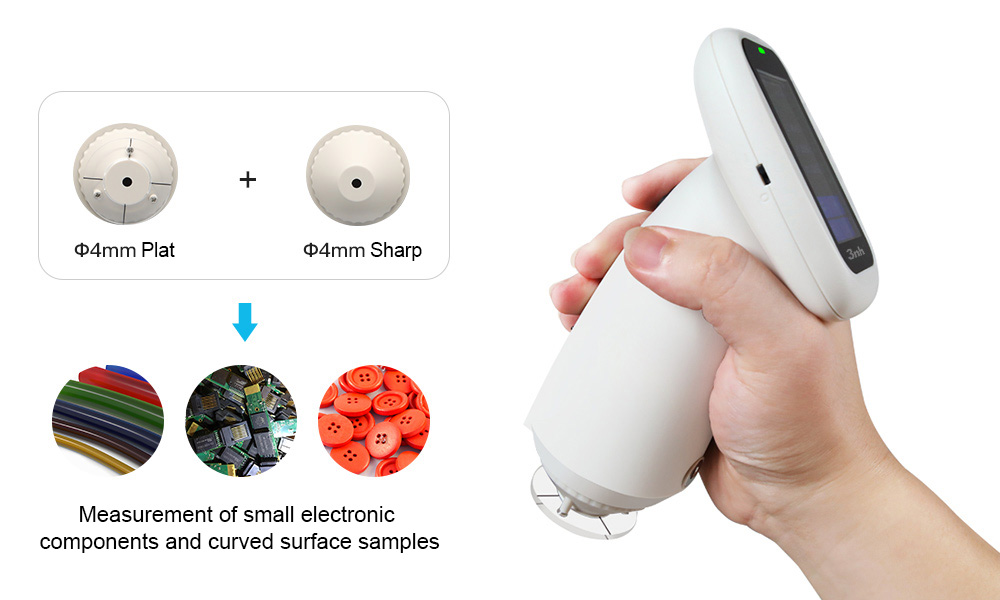

Flexible Apertures: Φ4mm/Φ5mm (flat + conical) apertures adapt to small or curved samples (e.g., electronic components, coated surfaces). Stable sheet positioning ensures accurate measurement placement.

Applications

PS210 is widely applied in color difference testing for plastics and electronics, color matching for paints and inks, fastness evaluation for textiles and dyeing, color consistency control for printing, and surface color analysis for ceramics.

Technical Specification

Technical Specifications

Product Model	PS210 Spectrophotometer
Illumination/Viewing	D/8 (Diffuse illumination, 8° viewing), SCI (Specular Component Included)Complies with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO 7724 1, ASTM E1164, DIN 5033 Teil7
Application	Color quality control for plastics & electronics, paints & inks, textiles & garments, printing, ceramics, etc.
Light Source	Combined full spectrum LED
Integrating Sphere	Φ40mm
Spectral Module	Nano integrated spectral device
Sensor	Dual row 16 group silicon photodiode array
Wavelength Range	400-700nm
Measuring Apertures	Φ4mm / Φ5mm (flat + conical)
Light Component	SCI
Color Spaces	CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99
Color Difference Formulas	ΔEab,ΔEuv,ΔE94,ΔEcmc(2:1),ΔEcmc(1:1),ΔE00, DINΔE99,ΔE(Hunter)
Additional Chromatic Indexes	Spectral reflectance, WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM E313), Metamerism Index Mt, Color Fastness (Staining & Changing), Strength, Hiding Power, 555 Tone Classification, Munsell (C/2), CMYK (via APP)
Observer	2°/10°
Illuminants	D65,A,C,D50,D55,D75, F1,F2(CWF),F3,F4,F5,F6, F7(DLF),F8,F9,F10(TPL5), F11(TL84),F12(TL83/U30), U35,NBF,ID50,ID65, LED-1,LED-2,LED-3,LED-4,LED-5 ,LED-6,LED-7,LED-8,LED-9,LED-10(partially via APP)
Display	Spectrum graph/data, chromaticity value, color difference graph, Pass/Fail, color simulation, color tendency
Measurement Time	About 1s
Repeatability	Chromaticity: MAV/SCI, ΔE*ab ≤ 0.02 (after warm up & calibration, average of 30 measurements on white tile at 5s intervals)Spectral Reflectance: MAV/SCI, ≤ 0.08% (≤ 0.18% within 400-700 nm)
Inter Instrument Agreement	MAV/SCI, ΔE*ab ≤ 0.35 (average on 12 BCRA Series II tiles)
Display Resolution	0.01
Reflectance Range	0-200%
Reflectance Resolution	0.01%
Measurement Mode	Single measurement, average measurement (2-99 times)
Positioning	Stable sheet positioning
Calibration	Contact white calibration
Dimensions	94(L)×68(W)×188(H) mm (excluding calibration base)
Weight	410 g (excluding calibration base)
Battery	Li ion 3.7V 3200mAh, up to 8000 measurements in 8 hours
Light Source Life	10 years or > 1,200,000 measurements
Screen	2.8 inch TFT true color capacitive touch screen
Interface	USB, Bluetooth® 5.0
Data Storage	200 standards, 10,000 samples (SCI/SCE supported); unlimited via APP/PC
Software Support	Android, iOS, Windows, WeChat Mini Program, HarmonyOS
Language	Simplified Chinese, English, Traditional Chinese
Operating Environment	Operating Environment
Storage Environment	-20-50°C, 0-85%RH (non condensing)
Standard Accessories	Power adapter, data cable, user manual, QC software (downloadable), white calibration box, protective cover, wrist strap, measuring apertures
Optional Accessories	Mini printer, powder test kit
Note	Specifications are for reference only; subject to the actual product
