PS410 Spectrophotometer

It is widely used for batch quality control in plastics & electronics, printing, ceramics and other industries....

Spectrocolorimeters

Brands:

Type: PS410

Description Additional information

Description

The 3nh PS410 is a mid-range spectrophotometer balancing flexibility and practicality. It features a 6-aperture multi-configuration design suitable for samples of various sizes, and is equipped with SCI/SCE dual-mode measurement to reduce interference from surface textures.It is widely used for batch quality control in plastics & electronics, printing, ceramics and other industries.

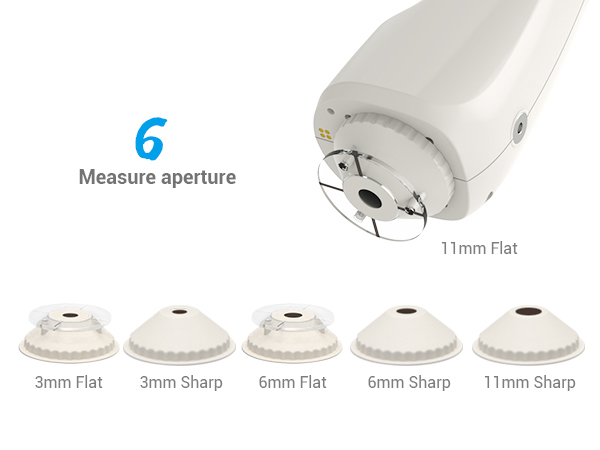

1. Full-Scene Adaptability with 6 Apertures

Equipped with 6 measurement apertures: 3mm, 6mm, 11mm (flat + pointed tip for each), ideal for samples from micro-sized parts to regular workpieces of various shapes.

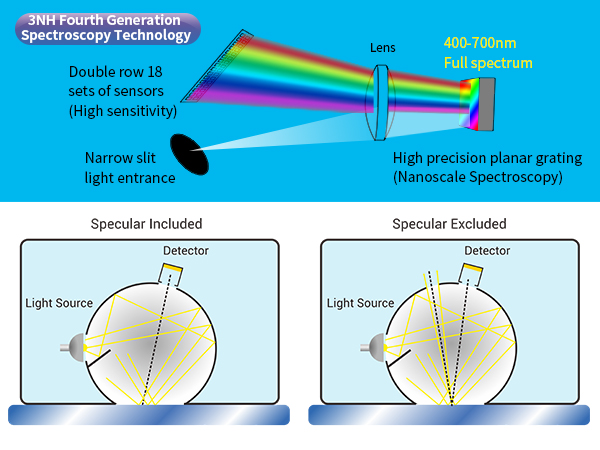

2. High-Precision Measurement

D/8 SCI/SCE Technology: Supports separate and simultaneous SCI/SCE measurement in approx. 1 second, reducing texture interference and capturing true color.

Full-Spectrum LED Light Source: Uniform spectrum from 400-700 nm, eliminating spectral missing errors.

High-Performance Hardware: Dual-array silicon photodiode sensor (dual-row 18 groups) + Φ40 mm large integrating sphere + nano-integrated optical elements for accurate color acquisition.

Dual Optical Path + Proprietary Algorithm: Strong anti-interference performance.Repeatability: ΔEab ≤ 0.025Inter-instrument agreement: ΔEab ≤ 0.4Ensures stable data across multiple instruments for precise color matching and transmission.

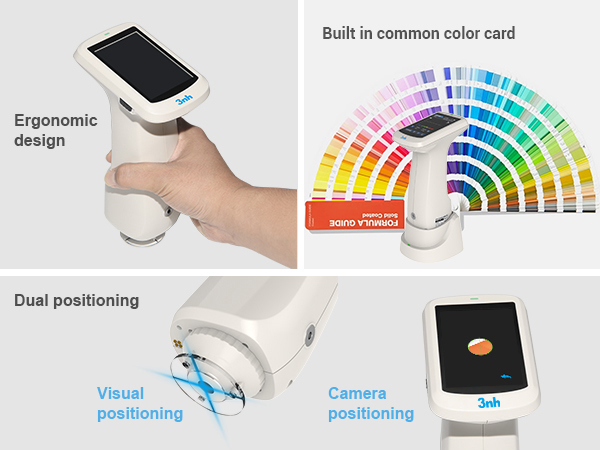

3. Efficient & User-Friendly Operation

Positioning Stabilizer: Accurately locks the measurement area and avoids deviation.

Built-in HD Camera: Real-time viewing for precise targeting, greatly improving batch inspection efficiency.

Contact Auto-Calibration: Intelligent calibration base maintains stable performance with minimal manual operation.

Smart Color Card Matching: Quickly matches color codes to save time in production color verification.

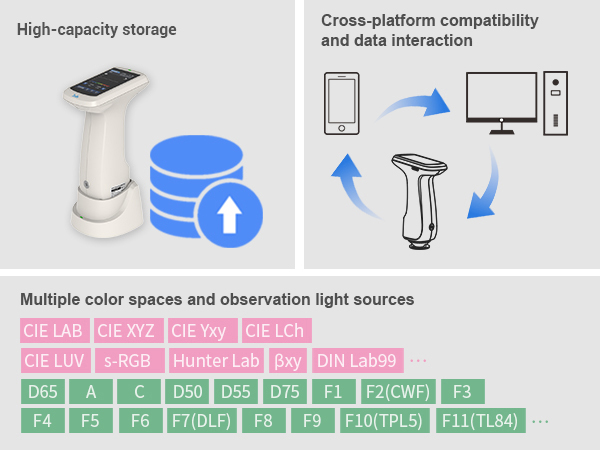

4. Enterprise-Grade Data Management

Comprehensive Color Indices: Supports 30+ light sources and 40+ measurement indexes, including spectral data, color values, color difference, color simulation, etc.

Large Storage: 500 standard samples and 10,000 test samples.

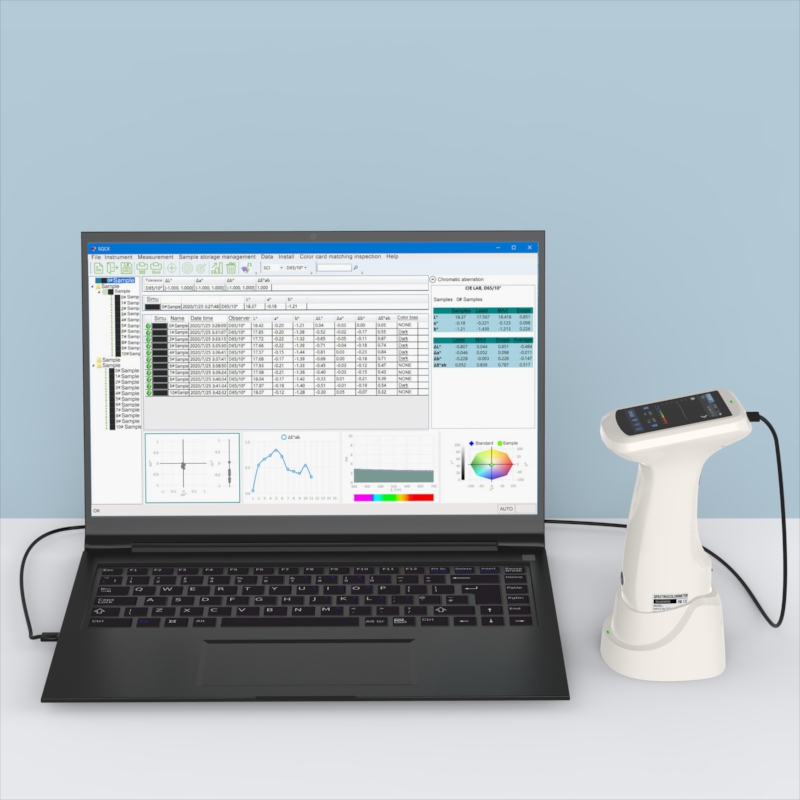

Multi-Device Connectivity: USB, Bluetooth; compatible with Android, iOS, Windows, WeChat Mini Program, HarmonyOS for data sharing, remote management and quality traceability.

Technical Specification

Model	PS410 Spectrophotometer
Illumination	D/8 (Diffuse / 8°), SCI/SCE, complying with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
Features	Dual silicon photodiode array; built-in electronic color card. For color quality control in plastics, electronics, paint, ink, textile, printing, ceramics, etc.
Light Source	Combined full-spectrum LED
Integrating Sphere	Φ40mm
Spectroscopy	Nano-integrated spectral device
Sensor	Silicon photodiode array (dual-row 18 groups)
Wavelength Range	400-700nm
Measurement Apertures	6 apertures: 3mm flat + 3mm tip + 6mm flat + 6mm tip + 11mm flat + 11mm tip
Measurement Mode	SCI & SCE simultaneous measurement
Color Spaces	CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99
Color Difference Formulas	ΔEab,ΔEuv,ΔE94,ΔEcmc(2:1),ΔEcmc(1:1),ΔE00,DINΔE99,ΔE(Hunter)
Other Indices	Spectral Reflectance, WI, YI, Metamerism Index MI, Color Fastness, Strength, Opacity, 555 Tone, Munsell, Blackness, Color Density CMYK, Tint
Observer	2°/10°
Light Sources	D65,A,B,C,D50,D55, D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF), F8,F9,F10(TPL5),F11(TL84), F12(TL83/U30),U35,NBF,ID50,ID65 ,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5, LED-BH1,LED-RGB1,LED-V1,LED-V2
Display	Spectrum, color data, ΔE, pass/fail, color simulation, color tendency
Measurement Time	Approx. 1 s
Repeatability	ΔE*ab ≤ 0.025; Reflectance SD ≤ 0.1% (400-700 nm ≤ 0.2%)
Inter-Instrument Agreement	MAV/SCI,ΔE*ab ≤ 0.4 (BCRA Series II 12 tiles)
Display Precision	0.01
Reflectance Range	0-200%
Reflectance Resolution	0.01%
Measuring Mode	Single, Average (2-99 times)
Positioning	Stabilizer + Camera positioning
Calibration	Contact white calibration
Dimensions	12075207mm
Weight	367 g (excl. calibration base)
Battery	3.7 V 3200 mAh Li-ion, up to 8000 measurements in 8 hours
Light Source Life	>1.2 million measurements in 10 years
Screen	3.5-inch TFT capacitive touch
Interface	USB,Bluetooth
Storage	500 standards, 10,000 samples; APP/PC cloud storage
Software	Android, iOS, Windows, WeChat Mini Program, HarmonyOS
Language	Simplified Chinese, English, Traditional Chinese
Operating Environment	0-40°C, 0-85%RH (non-condensing), altitude<2000 m
Storage Environment	-20-50°C, 0-85%RH (non-condensing)
Accuracy	Class 1 metrology certified
Standard Accessories	Power adapter, USB cable, manual, QC software, white calibration box, protective cover, wrist strap, apertures
Optional Accessories	Mini printer, powder test kit
Note	Specifications subject to change without prior notice
