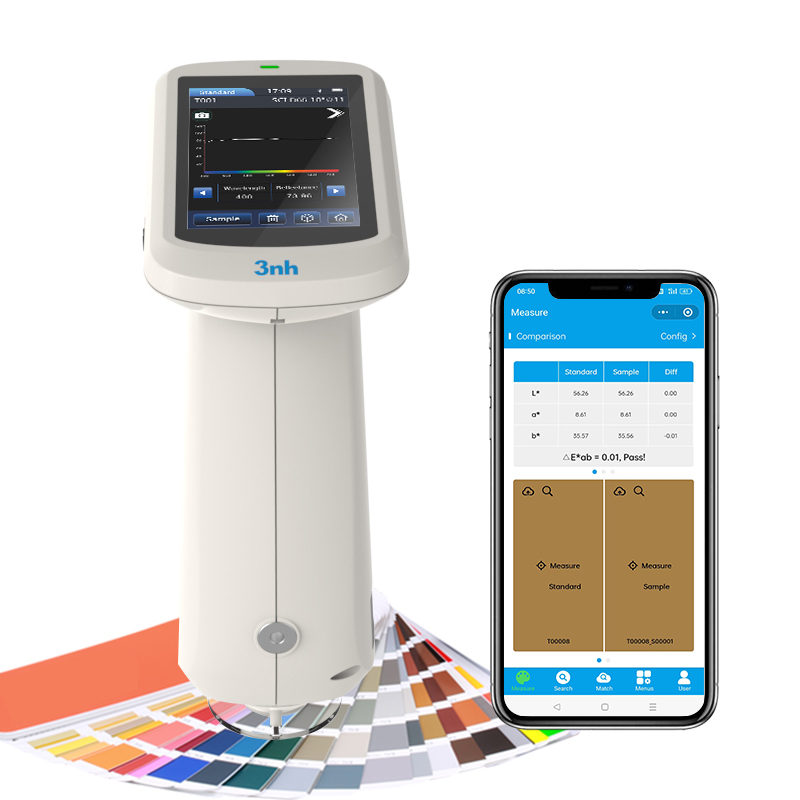

PS411 Spectrophotometer

With a premium 8-aperture configuration, it breaks through the limitations of measuring complex samples...

Spectrocolorimeters

Brands:

Type: PS411

Description Additional information

Description

The 3nh PS411 focuses on full-scene size adaptability.With a premium 8-aperture configuration, it breaks through the limitations of measuring complex samples.Supported by high-precision sensors and a dual optical path system, it delivers stable and reliable measurement data, making it ideal for quality control in industries with high demands on sample compatibility, such as textiles, garments, paints and inks.

1. Performance Advantages (Reliable & Accurate)

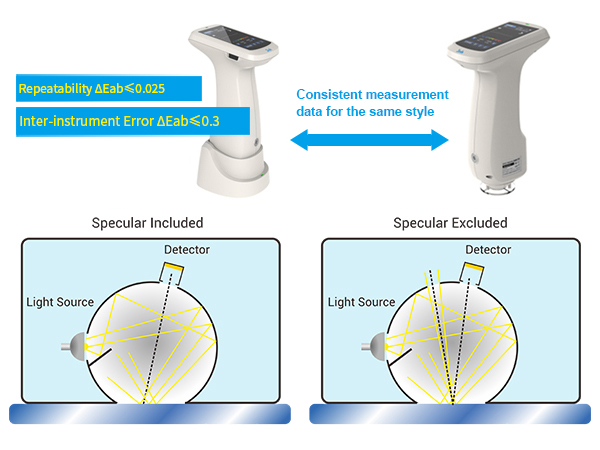

Excellent Repeatability & Inter-Instrument Consistency Repeatability: ΔEab ≤ 0.025Inter-instrument agreement: ΔEab ≤ 0.3Ensures unified data among multiple instruments, suitable for color formulation and precise color communication.

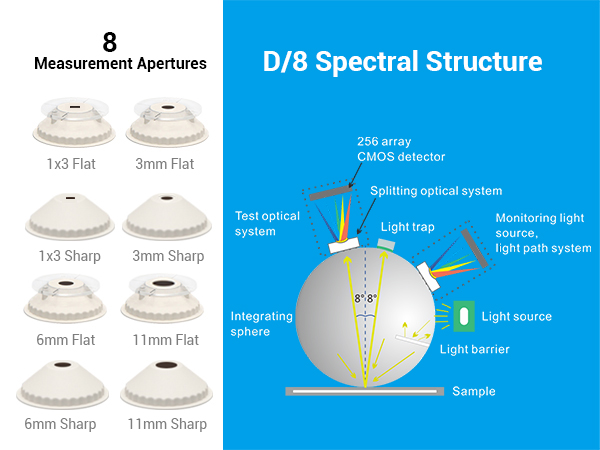

Internationally Accepted D/8 SCI+SCE Technology Objectively restores true color and reduces interference from surface textures.Supports separate and simultaneous SCI/SCE measurement in approximately 1 second.

2. Robust Hardware Configuration

Φ40 mm Large Integrating Sphere + Nano Spectral Elements Provides nano-level spectral resolution for more accurate color signal acquisition, achieving excellent accuracy and stability.

Combined Full-Spectrum LED Light Source Uniform spectral distribution from 400-700 nm, eliminating spectrum missing errors and improving measurement reliability.

High-Performance Dual-Array Sensor 18-group dual-row silicon photodiode array with fast response and high sensitivity, enabling efficient and precise data processing.

Dual Optical Path System + Proprietary Algorithm Stronger anti-interference ability than single optical path, further ensuring measurement accuracy and long-term stability.

Aperture Universal Adaptation 8- Includes 3 mm / 6 mm / 11 mm / 1×3 mm (flat + pointed tip), total 8 apertures, easily handling regular, curved, tiny and various shaped samples.

3. Convenient Operation

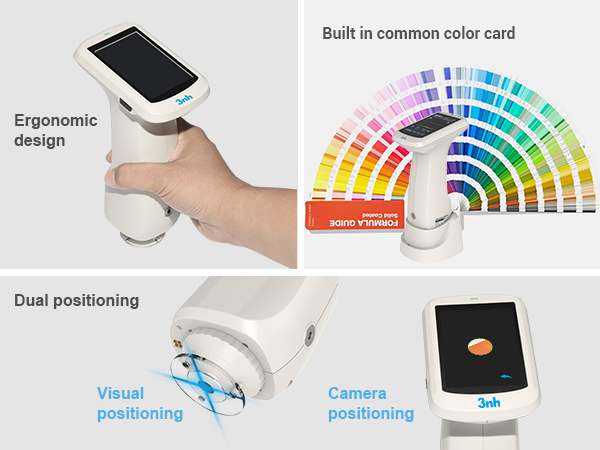

HD Camera Real-Time Viewing & Positioning Intuitively monitors the measurement area to ensure the test point is at the target center, guaranteeing valid results.

Contact Smart White Calibration Equipped with a dedicated calibration base; automatic calibration maintains optimal performance with less manual operation.

Smart Color Code Matching Quickly matches color card numbers, saving time on manual color searching and improving color matching efficiency.

4. Compatibility & Expandability

Rich Color Indices & Light Sources Supports 30+ light sources and 40+ measurement indexes, including spectrum, color data, color difference graph, color simulation, etc., meeting diverse industry demands.

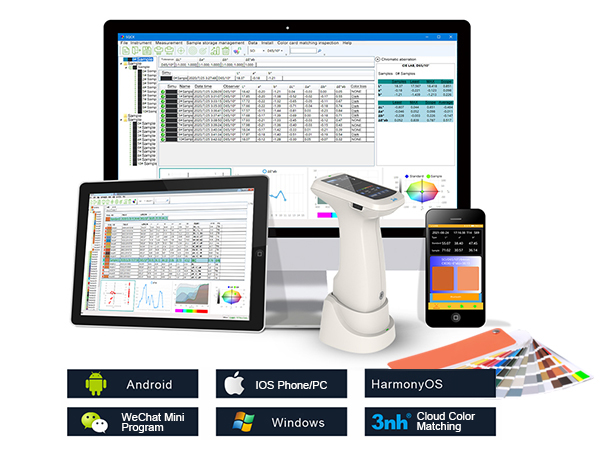

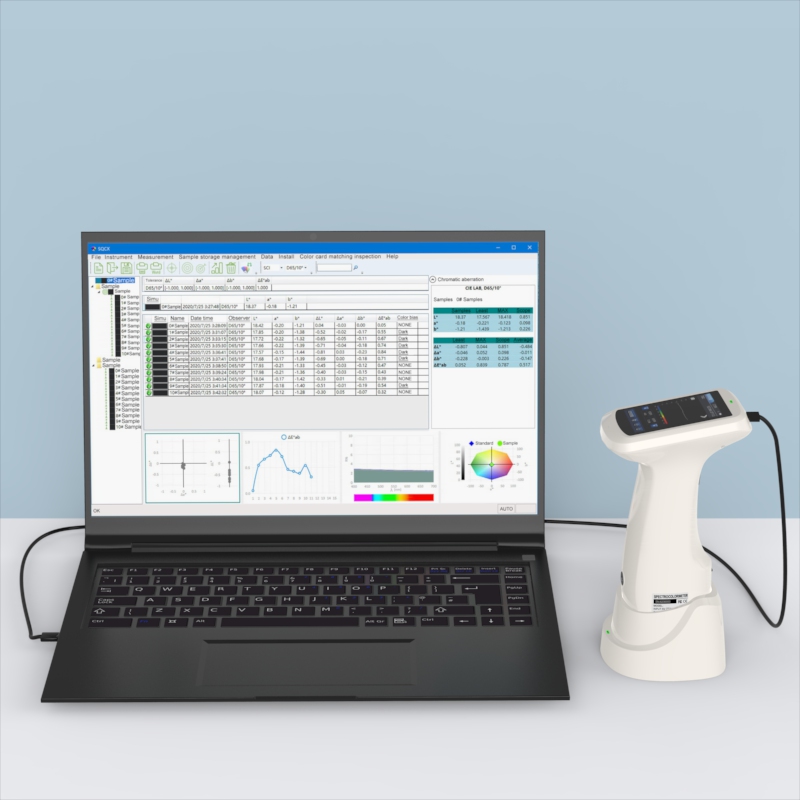

Multi-Device Interconnection & Data Management USB and Bluetooth interfaces; compatible with Android, iOS, Windows, WeChat Mini Program, HarmonyOS.Enables fast data transmission, sharing and remote management for quality traceability and analysis.

Technical Specification

Model	PS411 Spectrophotometer
Illumination	D/8 (Diffuse / 8°), SCI/SCE, complying with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
Features	Dual silicon photodiode array; built-in electronic color card. For color quality control in plastics, electronics, paint, ink, textile, printing, ceramics, etc.
Light Source	Combined full-spectrum LED
Integrating Sphere	Φ40mm
Spectroscopy	Nano-integrated spectral device
Sensor	Silicon photodiode array (dual-row 18 groups)
Wavelength Range	400-700nm
Measurement Apertures	8 apertures: 3mm flat + 3mm tip + 6mm flat + 6mm tip + 11mm flat + 11mm tip + 1×3mm flat + 1×3mm tip
Measurement Mode	SCI & SCE simultaneous measurement
Color Spaces	CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99
Color Difference Formulas	ΔEab,ΔEuv,ΔE94,ΔEcmc(2:1),ΔEcmc(1:1),ΔE00,DINΔE99,ΔE(Hunter)
Other Indices	Spectral Reflectance, WI, YI, Metamerism Index MI, Color Fastness, Strength, Opacity, 555 Tone, Munsell, Blackness, Color Density CMYK, Tint
Observer	2°/10°
Light Sources	D65,A,B,C,D50,D55, D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF), F8,F9,F10(TPL5),F11(TL84), F12(TL83/U30),U35,NBF,ID50,ID65 ,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5, LED-BH1,LED-RGB1,LED-V1,LED-V2
Display	Spectrum, color data, ΔE, pass/fail, color simulation, color tendency
Measurement Time	Approx. 1 s
Repeatability	ΔE*ab ≤ 0.025; Reflectance SD ≤ 0.1% (400-700 nm ≤ 0.2%)
Inter-Instrument Agreement	MAV/SCI,ΔE*ab ≤ 0.3 (BCRA Series II 12 tiles)
Display Precision	0.01
Reflectance Range	0-200%
Reflectance Resolution	0.01%
Measuring Mode	Single, Average (2-99 times)
Positioning	Stabilizer positioning + Camera viewing positioning
Calibration	Contact white calibration
Dimensions	12075207mm
Weight	367 g (excl. calibration base)
Battery	3.7 V 3200 mAh Li-ion, up to 8000 measurements in 8 hours
Light Source Life	>1.2 million measurements in 10 years
Screen	3.5-inch TFT capacitive touch
Interface	USB,Bluetooth
Storage	500 standards, 10,000 samples; APP/PC cloud storage
Software	Android, iOS, Windows, WeChat Mini Program, HarmonyOS
Language	Simplified Chinese, English, Traditional Chinese
Operating Environment	0-40°C, 0-85%RH (non-condensing), altitude < 2000 m
Storage Environment	-20-50°C, 0-85%RH (non-condensing)
Accuracy	Class 1 metrology certified
Standard Accessories	Power adapter, USB cable, manual, QC software, white calibration box, protective cover, wrist strap, apertures
Optional Accessories	Mini printer, powder test kit
Note	Specifications subject to change without prior notice
