Model |

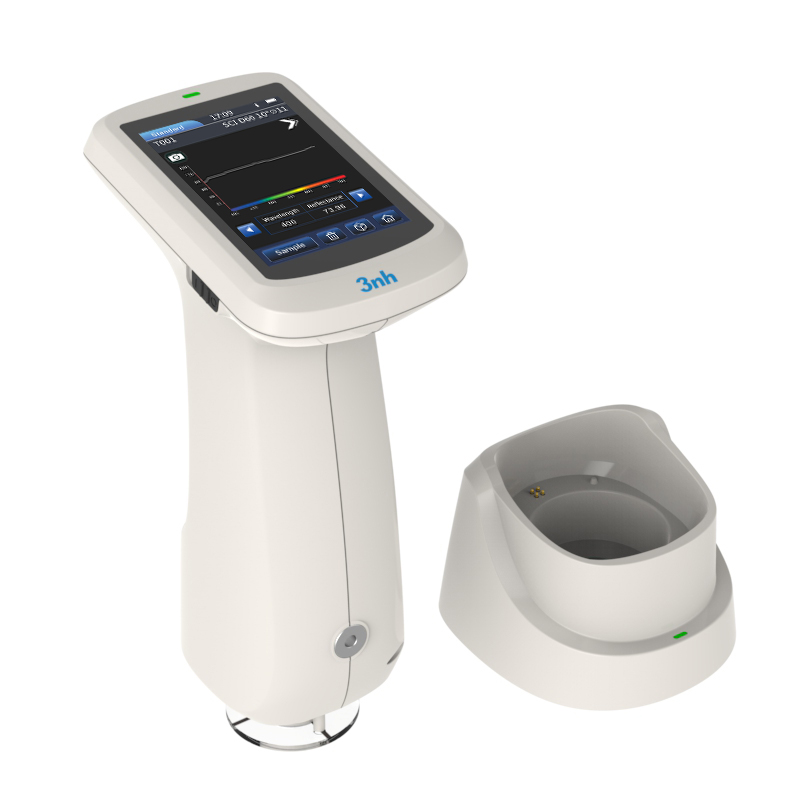

PS430 Spectrophotometer |
|
Illumination |
D/8 (Diffuse / 8°), SCI/SCE, complying with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7 |
|
Features |
Dual silicon photodiode array; built-in electronic color card. For color quality control in plastics, electronics, paint, ink, textile, printing, ceramics, etc. |
|
Light Source |
Full-spectrum LED + UV |
|
Integrating Sphere |
Φ40mm |
|

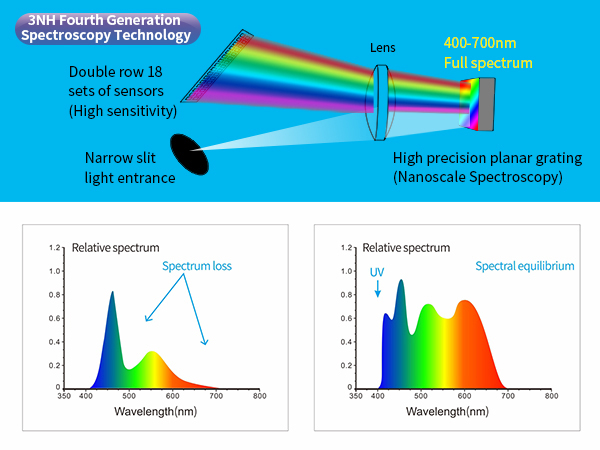

Spectroscopy |
Nano-integrated spectral device |
|
Sensor |
Dual 18-group silicon photodiode array |
|
Wavelength Range |
400-700nm |
|
Measurement Apertures |
12 apertures: 3mm, 5mm, 6mm, 10mm, 11mm, 1×3mm (flat & nozzle) |
|
Measurement Mode |
SCI & SCE simultaneous measurement |
|
Color Spaces |
CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 |
|
Color Difference Formulas |
ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,DINΔE99,ΔE(Hunter) |
|
Other Indices |
Spectral reflectance, WI, YI, Metamerism Index MI, staining fastness, color change fastness, strength, hiding power, Munsell, blackness, CMYK density, tint |
|
Observer |
2°/10° |
|
Light Sources |
D65,A,B,C,D50,D55, D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF), F8,F9,F10(TPL5),F11(TL84), F12(TL83/U30),U35,NBF,ID50,ID65 ,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5, LED-BH1,LED-RGB1,LED-V1,LED-V2 |
|
Display |
Spectrum, color data, ΔE, pass/fail, color simulation, color tendency |
|
Measurement Time |
Approx. 1 s |
|

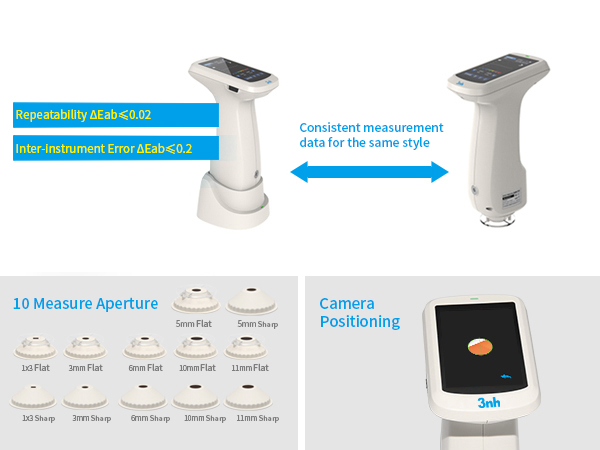

Repeatability |
Chromaticity value: MAV/SCI, standard deviation value ΔE*ab within 0.02 (after preheating and correction, measure the white board 30 times at intervals of 5 seconds and take the average value). Spectral reflectance: MAV/SCI, standard deviation within 0.08% (400~700nm: within 0.18%) |
|
Inter-Instrument Agreement |
MAV/SCI,ΔE*ab within 0.2 (average values measured by 12 color plates of BCRA Series II) |
|
Display Precision |
0.01 |
|
Reflectance Range |
0-200% |
|
Reflectance Resolution |
0.01% |
|
Measuring Mode |
Single measurement, average measurement (2-99 times) |
|
Positioning |
Stable plate positioning + camera viewfinder positioning |
|
White Calibration |
Non-contact automatic white calibration |
|
Dimensions |
120*75*207mm |
|
Weight |
367 g (excl. calibration base) |
|
Battery |
3.7 V 3200 mAh Li-ion, up to 8000 measurements in 8 hours |
|
Light Source Life |
>1.2 million measurements in 10 years |
|
Screen |
3.5-inch TFT capacitive touch |
|

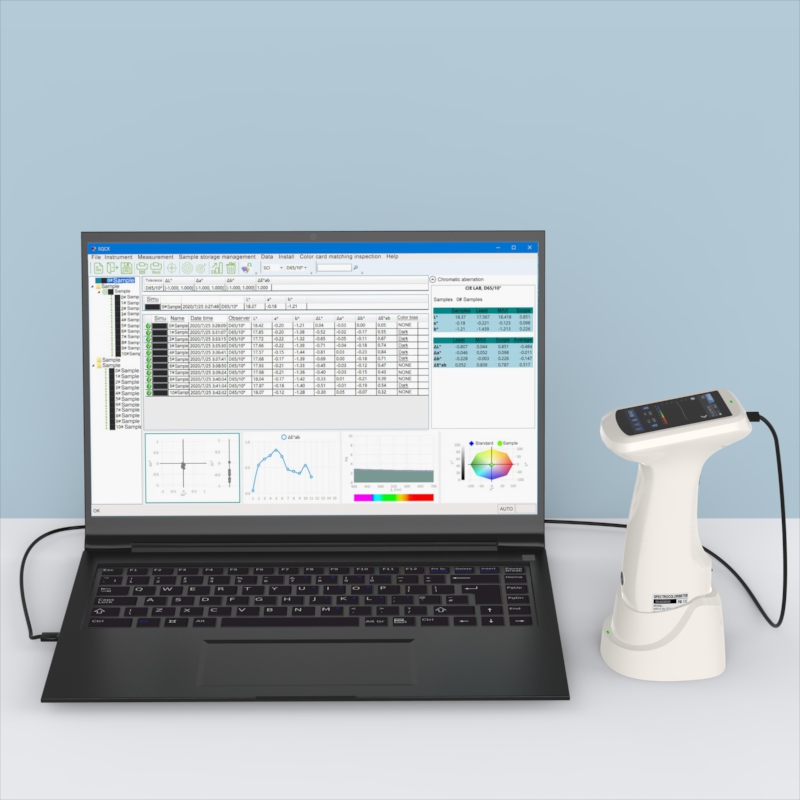

Interface |
USB,Bluetooth |
|
Storage |
500 standards, 15,000 samples; APP/PC cloud storage |
|

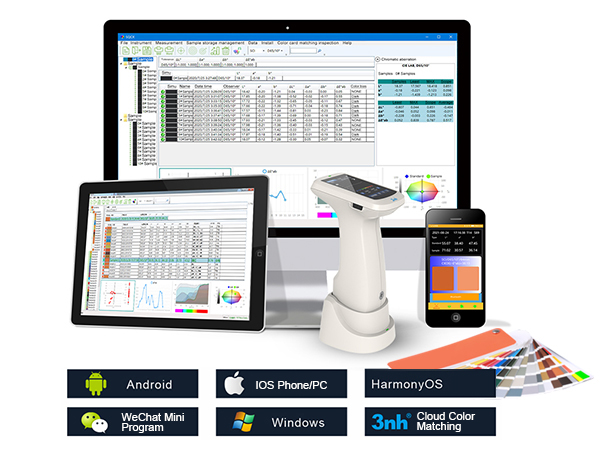

Software |
Android, iOS, Windows, WeChat Mini Program, HarmonyOS |
|
Language |
Simplified Chinese, English, Traditional Chinese |
|
Operating Environment |
0-40°C, 0-85%RH (non-condensing), altitude<2000 m |
|
Storage Environment |
-20-50°C, 0-85%RH (non-condensing) |
|
Accuracy |
Class 1 metrology certified |
|
Standard Accessories |
Power adapter, data cable, user manual, quality management software (downloadable on official website), white calibration box, protective cover, wrist strap, measuring apertures |
|
Optional Accessories |
Mini printer, powder test kit |
|
Note |
Specifications subject to change without prior notice |
