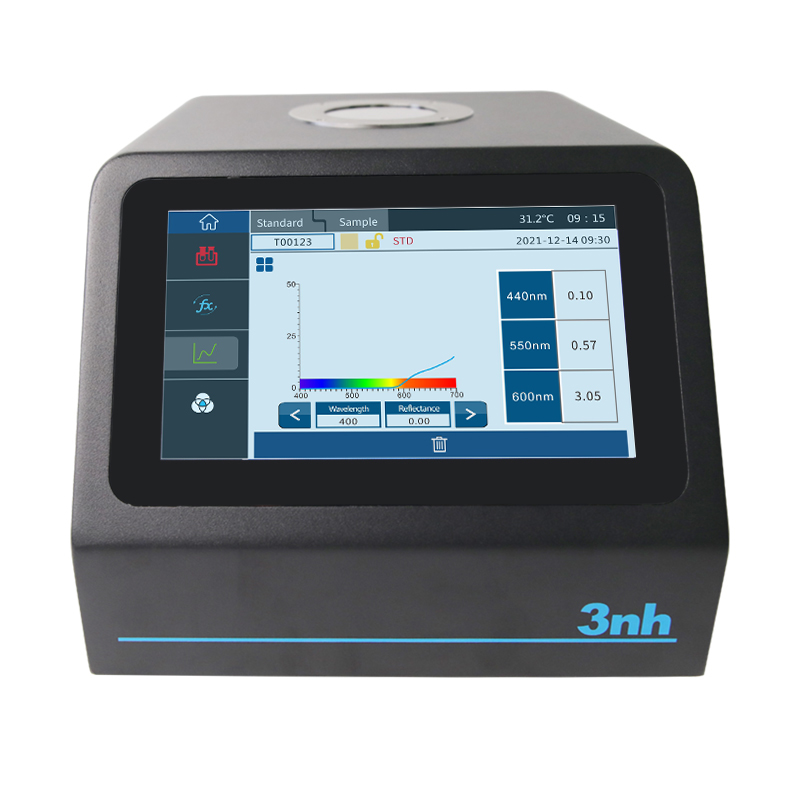

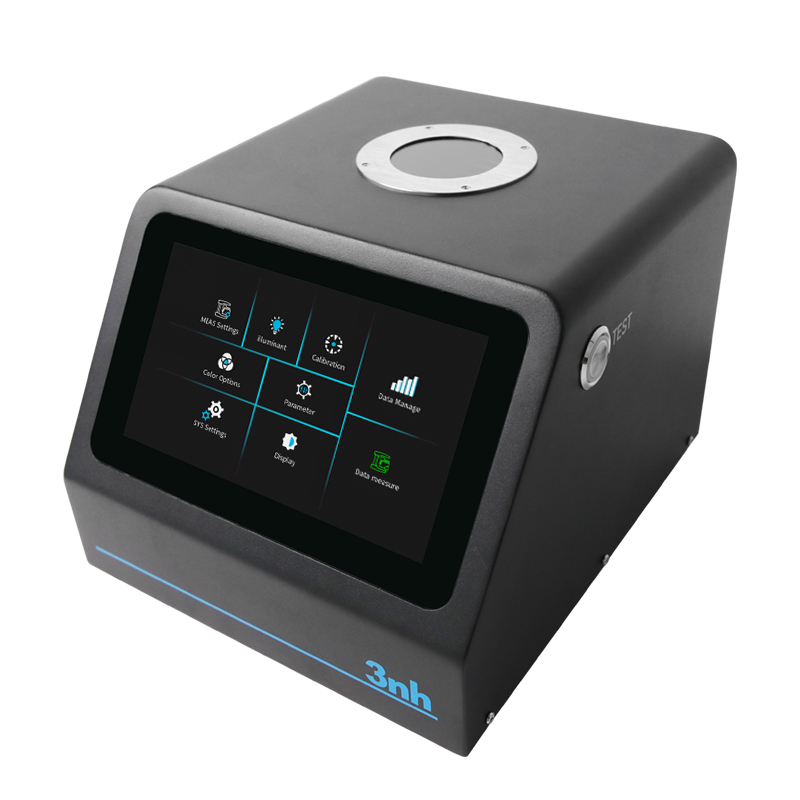

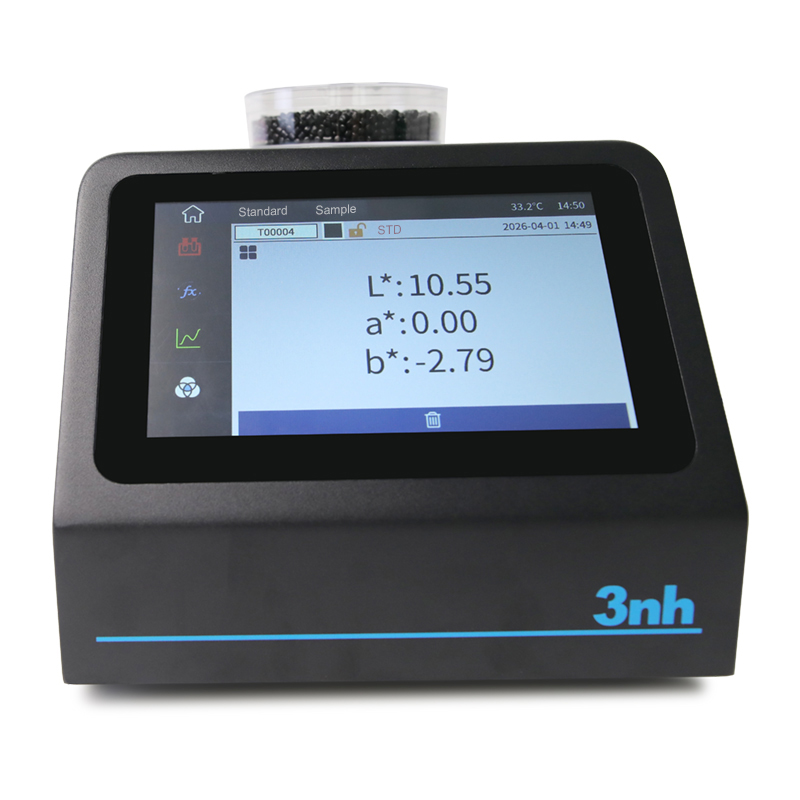

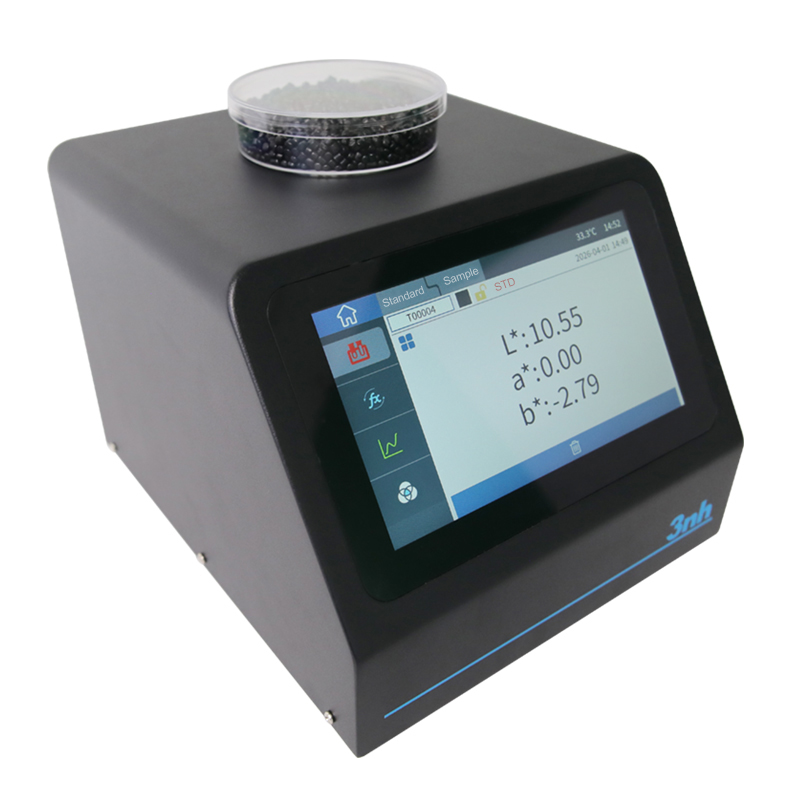

PS808CT Spectrocolorimeter

A Coffee and Tomato Spectrophotometer featuring 45/0 optical geometry with a 50 mm large aperture....

Spectrocolorimeters

Brands:

Type: PS808CT

Description Additional information

Description

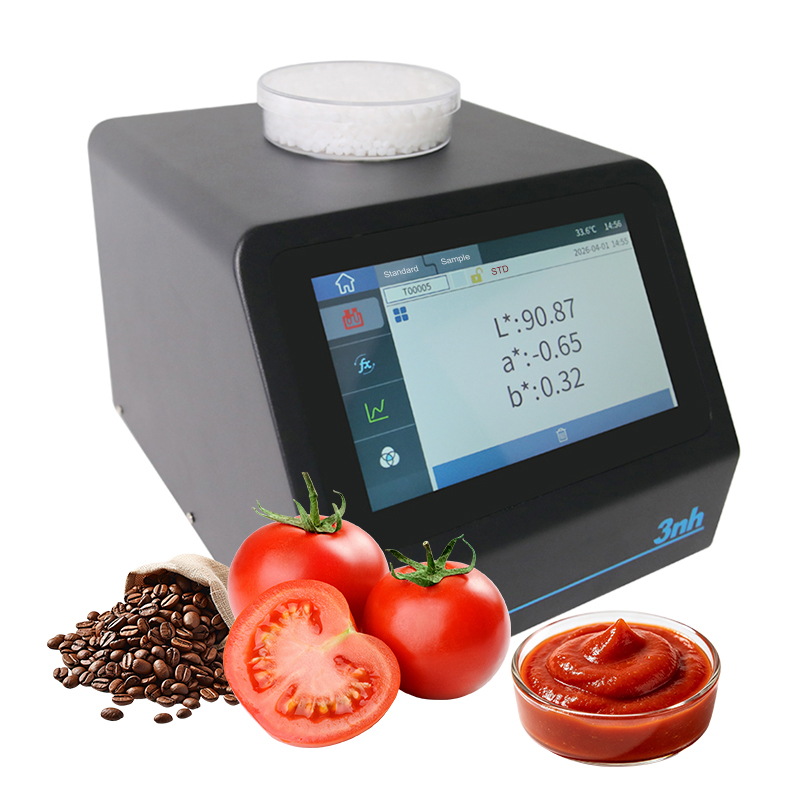

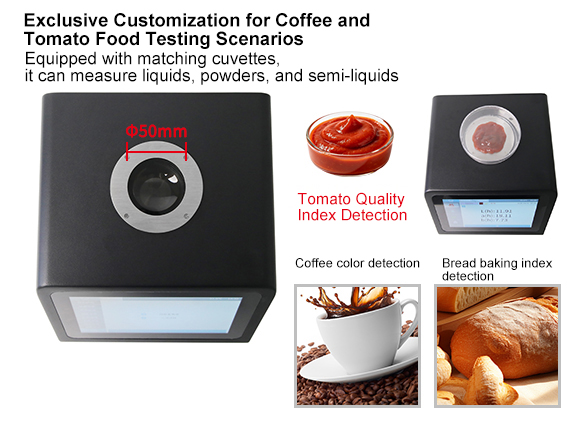

I. Customized for Coffee & Tomato Food Testing Scenarios

1.Coffee Color Index Testing: Built-in SCAA, HCCI, and coffee roast degree indicators, enabling precise quantification of color changes throughout the roasting process from light to dark roast, providing standardized data support for coffee roasting quality control and batch consistency management.

2.Bread Baking Index Testing: Supports BCU (Bread Color Unit), suitable for quantitative evaluation of bread crust color and baking degree, helping the baking industry achieve product color standardization and process optimization.

3.Tomato Quality Index Testing: In addition to conventional color spaces and color difference calculations, the instrument features built-in tomato-specific chromaticity indices, directly outputting core parameters including tomato a/b ratio, fresh tomato color index (FTCI), TPS, TSS, TCS, TJS, and lycopene index, providing a one-stop solution for quality grading and inspection needs throughout tomato cultivation, harvesting, processing, and laboratory R&D.

4.Industrial-Grade Large Aperture Design: Equipped with a 50 mm measurement aperture, adaptable to different sample types including coffee beans, tomato fruit bodies, tomato paste, tomato juice, and bread surfaces, significantly reducing measurement errors caused by sample non-uniformity and ensuring data stability and representativeness.

II. Laboratory-grade precision ensures stable and reliable data

1.High Repeatability: After warm-up and calibration, with 30 consecutive measurements on a standard white plate at 5-second intervals, the chromaticity value repeatability ΔE*ab is within 0.03; spectral reflectance standard deviation within 0.07% (within 0.2% for 400-700 nm band), suitable for laboratory high-precision analysis and subtle color difference identification scenarios.

2.Inter-Instrument Agreement: ΔE*ab within 0.35 (average of measurements on 12 BCRA Series II standard color tiles), ensuring consistent color data transfer and benchmarking across multiple instruments, laboratories, and production sites, enabling standardized cross-regional quality control.

3.Full-Band Accurate Acquisition: Measurement wavelength range covering 400-700 nm across the full visible spectrum, wavelength interval 10 nm, half-bandwidth 10 nm, reflectance measurement range 0-200%, achieving comprehensive and precise capture of sample spectral information.

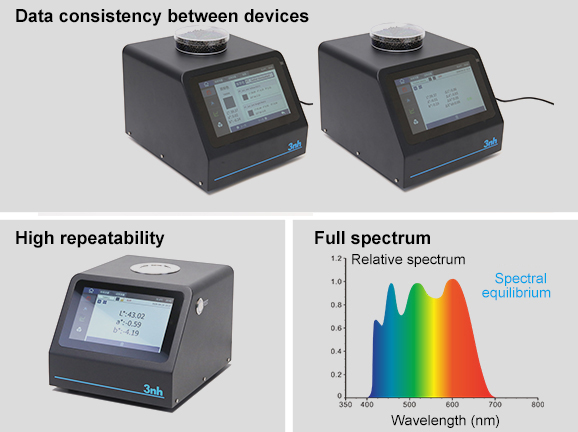

Laboratory-grade precision ensures stable and reliable data

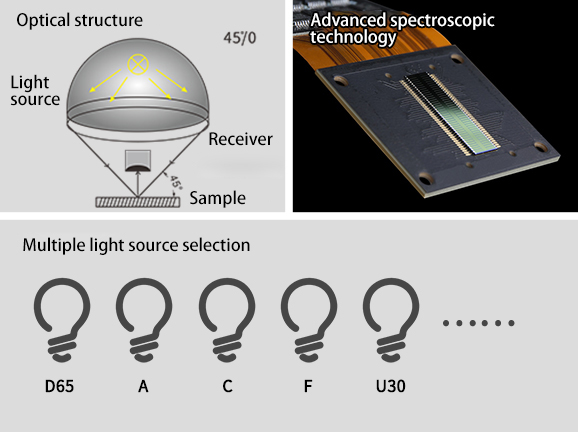

III. Professional Optical System Design, Adaptable to Various Measurement Scenarios

1.Standard 45/0 Optical Geometry: Adopting 45° annular uniform illumination and 0° reception optical design, fully matching human visual characteristics, effectively eliminating the impact of sample surface texture and gloss on measurement results, with measurement data highly consistent with visual evaluation, particularly suitable for color detection of food, granular, and textured samples.

2.Advanced Spectrophotometric Technology: Utilizing a nano-integrated spectral device combined with a dual-set 20-group silicon photodiode array, achieving high-speed and high-sensitivity spectral signal acquisition, ensuring high fidelity of measurement results with a measurement time of about 1 second.

3.Selected Observation Light Sources: Built-in D65, A, and C standard light sources, meeting conventional color evaluation requirements in the food industry and ensuring measurement conditions are consistent with international standards.

Adaptable to Various Measurement Scenarios

IV. Efficient and Convenient Operation & Data Management, Suited for Industrial Applications

1.Fast Measurement: Single measurement time of about 1 second, supporting single measurement and average measurement modes (2-99 times), enabling rapid sampling and full inspection of large batches, significantly improving production line and laboratory testing efficiency.

2.Intuitive Visual Operation: Equipped with a 7-inch TFT true-color capacitive touchscreen, capable of directly displaying spectral graphs/data, sample colorimetric values, color difference values/graphs, pass/fail results, and color bias, allowing intuitive interpretation of measurement results without external devices.

3.Large Storage Capacity: Capable of storing 1,000 standard sample data and 30,000 test sample data, fully meeting the inspection data storage and traceability requirements of large-scale industrial production.

4.Cross-Platform Software Compatibility: Comes with professional quality management software (download from the official website), supporting in-depth data analysis, batch management, remote transmission, and report export, facilitating the establishment of a digital color management system.

5.Multi-Language Support: Built-in Simplified Chinese, English, Traditional Chinese, and Russian language systems, adaptable to global application scenarios.

Data Management, Suited for Industrial Applications

V. Industrial-Grade Durability & Strong Environmental Adaptability, Stable Under Complex Conditions

1.Long-Life Light Source: Adopting a combined LED light source with a lifespan of 10 years or more than 2 million measurements, significantly reducing equipment maintenance costs.

2.Broad Environmental Adaptability: Operating temperature range 0-40℃, humidity 0-85%RH (non-condensing), suitable for altitudes below 2,000 m covering the vast majority of production and inspection scenarios. Storage temperature range -20-50℃, ensuring safe storage of the instrument during non-operating conditions.

3.Stable Power Supply: Powered by a 24 V DC, 3 A power adapter, ensuring stability during long-term continuous operation, suitable for fixed installation in laboratories and production lines.

Strong Environmental Adaptability, Stable Under Complex Conditions

Technical Specification

Product Model	PS808CT
Product Name	Coffee and Tomato Spectrophotometer
Optical Geometry	45/0 (45° annular uniform illumination, 0° reception); Conforms to standards CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO 7724-1, ASTM E1164, DIN 5033 Teil 7
Characteristic	A Coffee and Tomato Spectrophotometer featuring 45/0 optical geometry with a 50 mm large aperture. Used for food processing measurements such as coffee color, tomato index, and bread baking. Also suitable for precise color measurement and quality control in industries including plastics & electronics, paints & inks, textile & apparel dyeing, printing, and ceramics.
Light Source	Combined LED light source
Integrating Sphere Size
Light-Containing Method
Spectrophotometric Method	Nano-integrated spectral device
Sensor	Silicon photodiode array (dual-array, 20 groups)
Measurement Wavelength Range	400-700 nm
Wavelength Interval	10 nm
Half-Bandwidth	10 nm
Reflectance Measurement Range	0-200%
Measurement Aperture	Φ50 mm
Observation Light Sources	D65, A, C
Observer Angle	2°/10°
Color Spaces	CIE LAB, XYZ, Yxy, LCh
Color Difference Formulas	ΔEab, ΔE94, ΔEcmc, ΔE00
Other Chromaticity Indices	SCAA, HCCI, coffee roast degree, BCU, tomato a/b ratio, fresh tomato color index (FTCI), TPS, TSS, TCS, TJS, Lycopene
Repeatability	Spectral reflectance: standard deviation ≤ 0.1% (400-700 nm: ≤ 0.2%); Colorimetric values: ΔE*ab ≤ 0.03 (after warm-up and calibration, average of 30 measurements on a white plate at 5-second intervals)
Inter-Instrument Agreement	ΔE*ab ≤ 0.35 (average of measurements on 12 BCRA Series II color tiles)
Display	Spectral graph/data, sample colorimetric values, color difference values/graph, pass/fail results, color bias
Measurement Time	Approximately 1 s
Measurement Mode	Single measurement, average measurement (2-99 times)
Dimensions	210245188 mm
Weight	3.1 kg
Power Supply	24 V DC, 3 A power adapter
Light Source Lifespan	10 years or more than 2 million measurements
Display Screen	TFT true-color 7-inch capacitive touchscreen
Interface	USB, Bluetooth
Storage	1,000 standard samples, 30,000 test samples
Language	Simplified Chinese, English, Traditional Chinese, Russian
Operating Temperature Range	0-40℃, 0-85%RH (non-condensing), altitude below 2,000 m
Storage Temperature Range	-20-50℃, 0-85%RH (non-condensing)
Standard Accessories	Power adapter, data cable, user manual, quality management software (download from official website), white plate, Petri dishes x2
Optional Accessories	Micro printer
Note:	Technical parameters are for reference only; subject to the actual product sold. Subject to change without prior notice.
