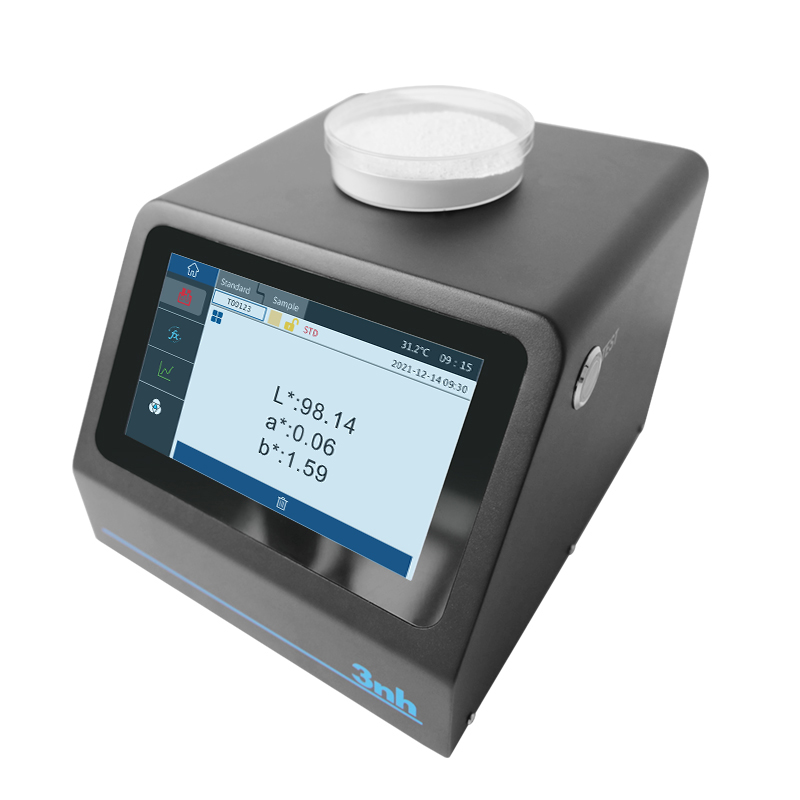

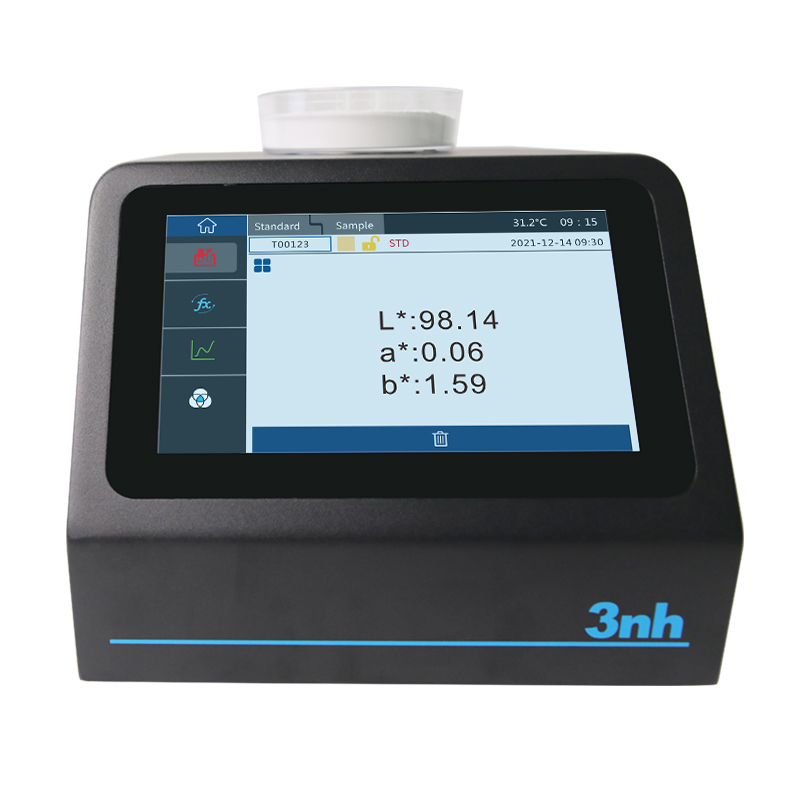

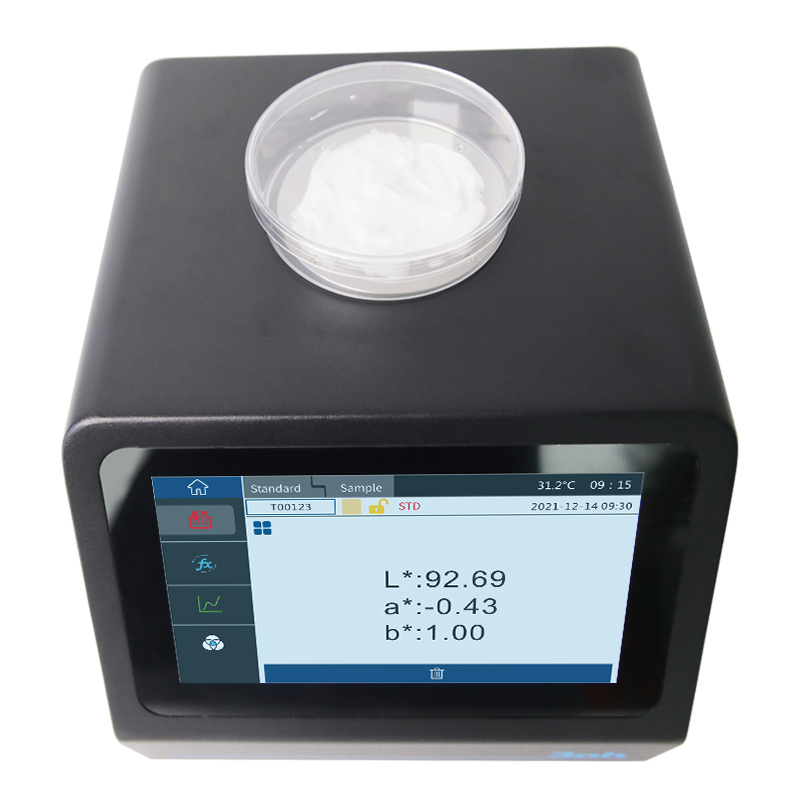

PS808 Spectrocolorimeter

The Particle Spectrophotometer utilizes a 45/0 optical geometry and is equipped with a 50 mm large measurement aperture, complying with ASTM D6290-19 and other particle color test methods....

Spectrocolorimeters

Brands:

Type: PS808

Description Additional information

Description

I. Tailored for Particle Sample Testing, Meeting Diverse Needs

1. Special Large Aperture Design: The 50 mm measurement aperture is suitable for non-uniform samples such as granules, powders, and textured materials.

2. Full Industry Color Indices Support: whiteness (WI, supporting ASTM E313, CIE/ISO, R457, AATCC, Hunter, Taube, Berger, Stensby), yellowness (YI, supporting ASTM D1925, ASTM 313), tint (supporting CIE/ISO, ASTM E313-20), metamerism index MI, staining fastness, color change fastness, strength, hiding power, color density CMYK.

3. Compliance with International Standards: Strictly follows CIE No.15, GB/T 3978, ISO 7724-1, ASTM E1164.

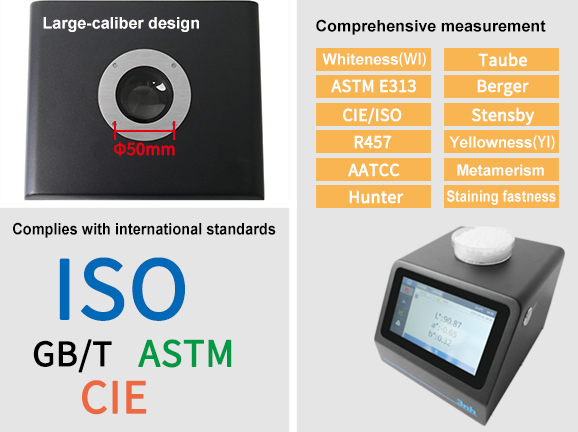

Tailored for Particle Sample Testing, Meeting Diverse Needs

II. Precision Measurement, Reliable and Stable Data

1. High Repeatability: Color value repeatability ΔE*ab ≤ 0.03; spectral reflectance standard deviation ≤ 0.1% (≤ 0.2% in 400-700 nm band).

2. Inter-Instrument Agreement: ΔE*ab ≤ 0.35 (average of measurements on 12 BCRA Series II color tiles).

3. Full-Band Accurate Acquisition: 400-700 nm, wavelength interval 10 nm, half-bandwidth 10 nm, reflectance range 0-200%.

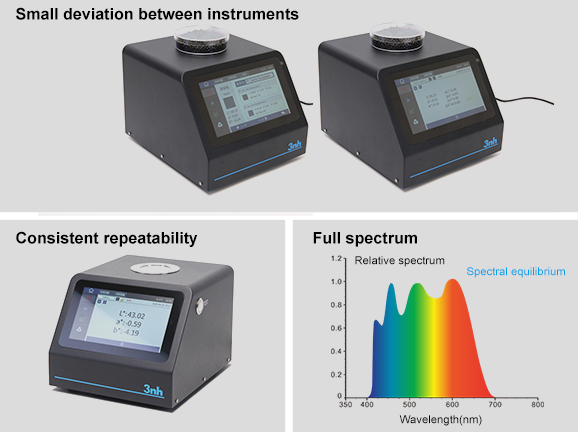

Precision Measurement, Reliable and Stable Data

III. Professional Optical System Design, Adaptable to Various Measurement Scenarios

1. Standard 45/0 Optical Geometry: 45° annular uniform illumination and 0° reception.

2. Advanced Spectrophotometric Technology: Nano-integrated spectral device combined with a dual-array silicon photodiode array. Measurement time only about 1 second.

3. Rich Light Source Options: Built-in over 40 standard observation light sources (D65, A, C, F-series, etc.), supporting 2°/10° observer angles.

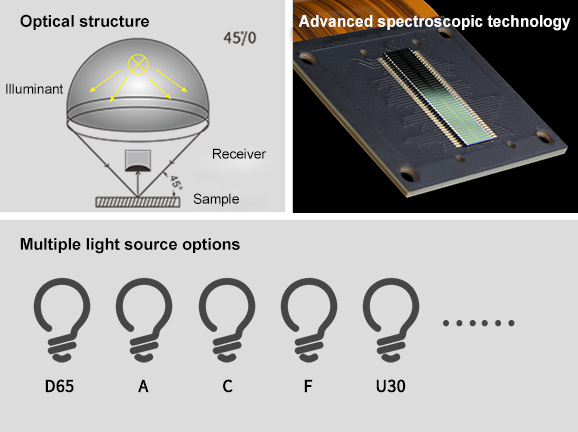

Professional Optical System Design, Adaptable to Various Measurement Scenarios

IV. Efficient and Convenient Operation & Data Management, Suited for Industrial Applications

1. Fast Measurement: Single measurement takes only about 1 second. Supports single measurement and average measurement modes (2-99 times).

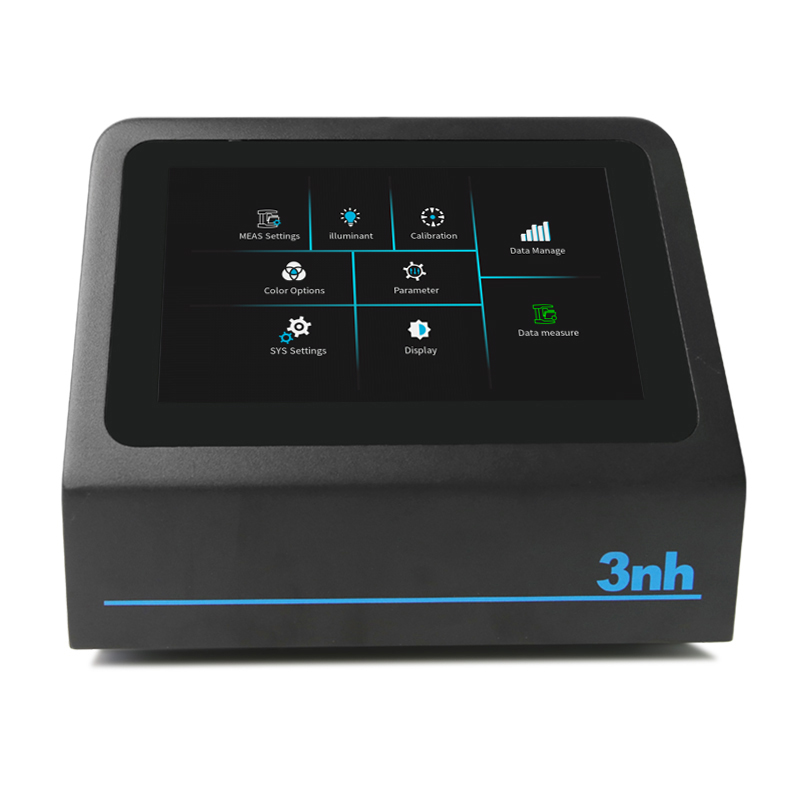

2. Intuitive Visual Operation: 7-inch true-color capacitive touchscreen.

3. Large Storage Capacity: Stores up to 1,000 master sample data and 30,000 test sample data.

4. Cross-Platform Software Compatibility: Professional quality management software (download from official website).

5. Multi-Language Support: Simplified Chinese, English, Traditional Chinese, Russian.

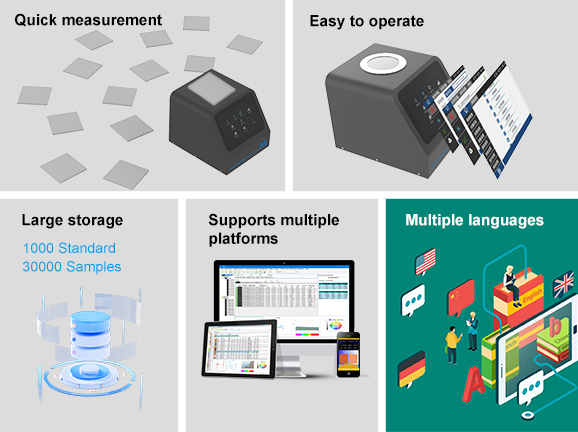

Data Management, Suited for Industrial Applications

V. High-Grade Durability & Strong Environmental Adaptability, Stable Under Complex Conditions

1. Long-Life Light Source: Combined LED light source with service life up to 10 years or >2 million measurements.

2. Broad Environmental Adaptability: Operating temperature range 0-40℃, 0-85%RH (non-condensing), altitude below 2000 m. Storage temperature range -20-50℃.

3. Stable Power Supply: 24 V DC, 3 A power adapter.

Strong Environmental Adaptability, Stable Under Complex Conditions

Technical Specification

Product Model	PS808
Product Name	Particle Spectrophotometer
Optical Geometry	45/0 (45° annular uniform illumination, 0° reception); Conforming to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO 7724-1, ASTM E1164, DIN 5033 Teil 7
Features	The Particle Spectrophotometer utilizes a 45/0 optical geometry and is equipped with a 50 mm large measurement aperture, complying with ASTM D6290-19 and other particle color test methods. The instrument provides a wide measurement area and highly representative data, making it ideal for color measurement of granular samples. Widely used for precise color measurement and quality control in industries such as plastics & electronics, paints & inks, textile & apparel dyeing, printing, ceramics, and food.
Light Source	Combined LED light source
Integrating Sphere Size	/
Specular Component	/
Spectrophotometric Method	Nano-integrated spectral device
Sensor	Silicon photodiode array (dual-array, 20 groups)
Measurement Wavelength Range	400-700 nm
Wavelength Interval	10 nm
Half-Bandwidth	10 nm
Reflectance Measurement Range	0-200%
Measurement Aperture	50 mm
Observation Light Sources	D65,A,C,D50,D55,D75, F1,F2,F3,F4,F5,F6, F7,F8,F9,F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30,B,U35,NBF,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5
Observer Angle	2°/10°
Color Spaces	CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, HunterLab, βxy, DIN Lab99, Munsell (C/2)
Color Difference Formulas	ΔEab, ΔEuv, ΔE94, ΔEcmc(2:1), ΔEcmc(1:1), ΔE00, DINΔE99, ΔE(Hunter)
Other Chromaticity Indices	Spectral reflectance, WI (ASTM E313, CIE/ISO, R457, AATCC, Hunter, Taube, Berger, Stensby), YI (ASTM D1925, ASTM 313), Tint (CIE/ISO, ASTM E313-20), Metamerism Index MI, Staining fastness, Color change fastness, Strength, Hiding power, Color density CMYK
Repeatability	Spectral reflectance: standard deviation ≤ 0.1% (400-700 nm: ≤ 0.2%); Colorimetric values: ΔE*ab ≤ 0.03
Inter-Instrument Agreement	ΔE*ab ≤ 0.35 (average of measurements on 12 BCRA Series II color tiles)

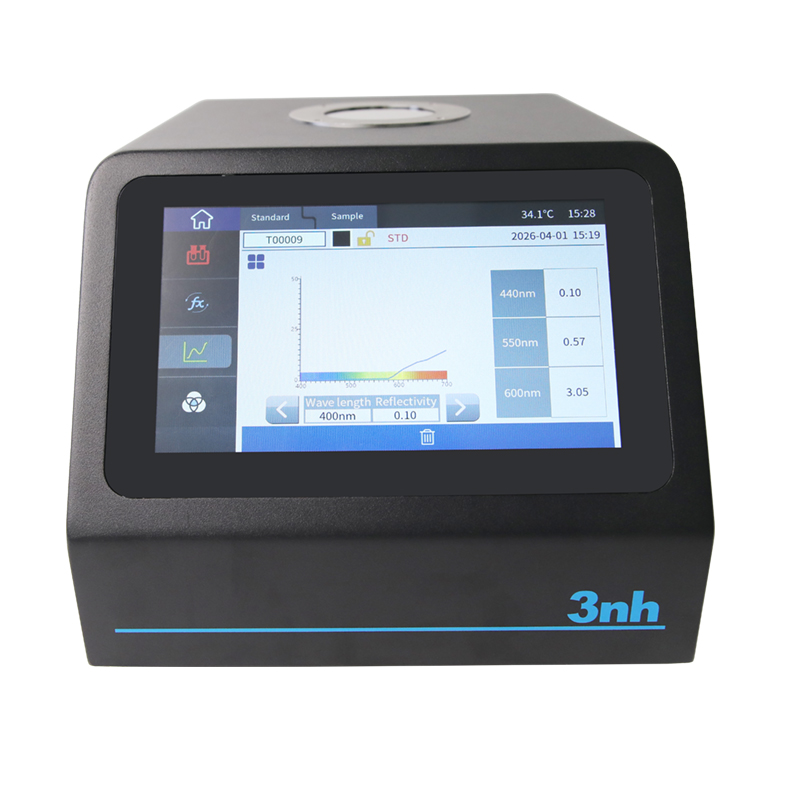

Display	Spectral graph/data, sample colorimetric values, color difference values/graph, pass/fail results, color bias
Measurement Time	Approx. 1 s
Measurement Mode	Single measurement, average measurement (2-99 times)
Dimensions	210 x 245 x 188 mm
Weight	3.1 kg
Power Supply	24 V DC, 3 A power adapter
Light Source Lifespan	10 years or >2 million measurements
Display Screen	TFT true-color 7-inch capacitive touchscreen
Interface	USB, Bluetooth
Storage	1,000 standard samples, 30,000 test samples
Language	Simplified Chinese, English, Traditional Chinese, Russian
Operating Temperature Range	0-40℃, 0-85%RH (non-condensing), altitude below 2000 m
Storage Temperature Range	-20-50℃, 0-85%RH (non-condensing)
Standard Accessories	Power adapter, data cable, user manual, quality management software (download from official website), white plate, Petri dishes x 2
Optional Accessories	Micro printer
Note:	Technical specifications are for reference only. Subject to change without notice.
